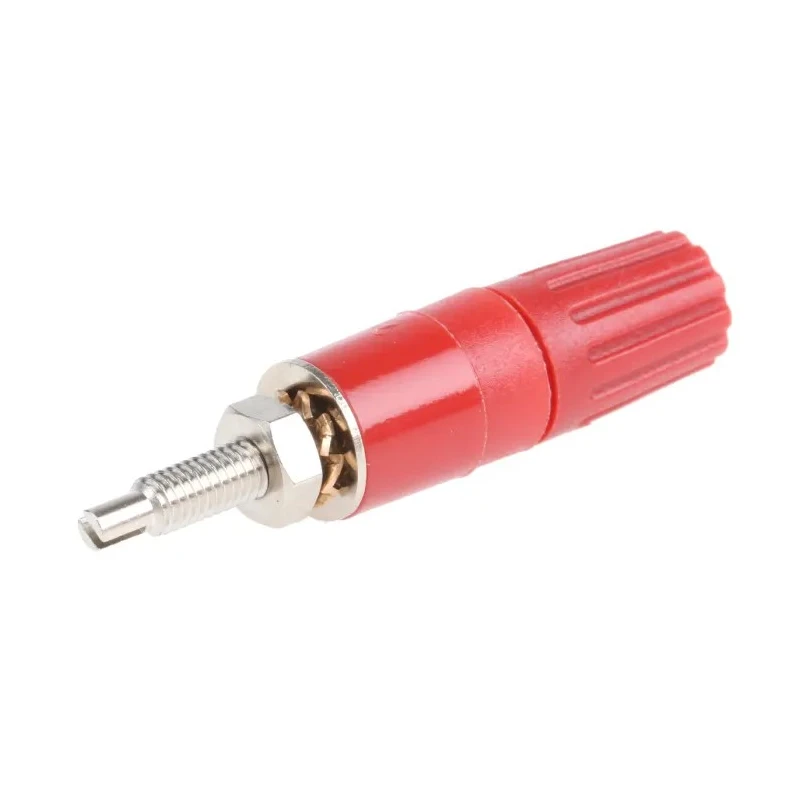

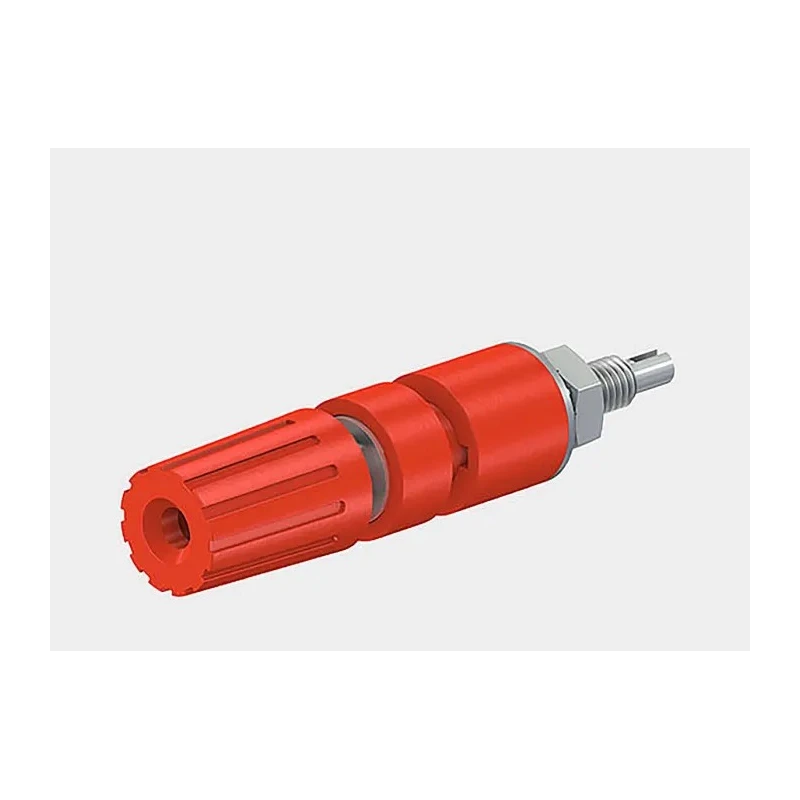

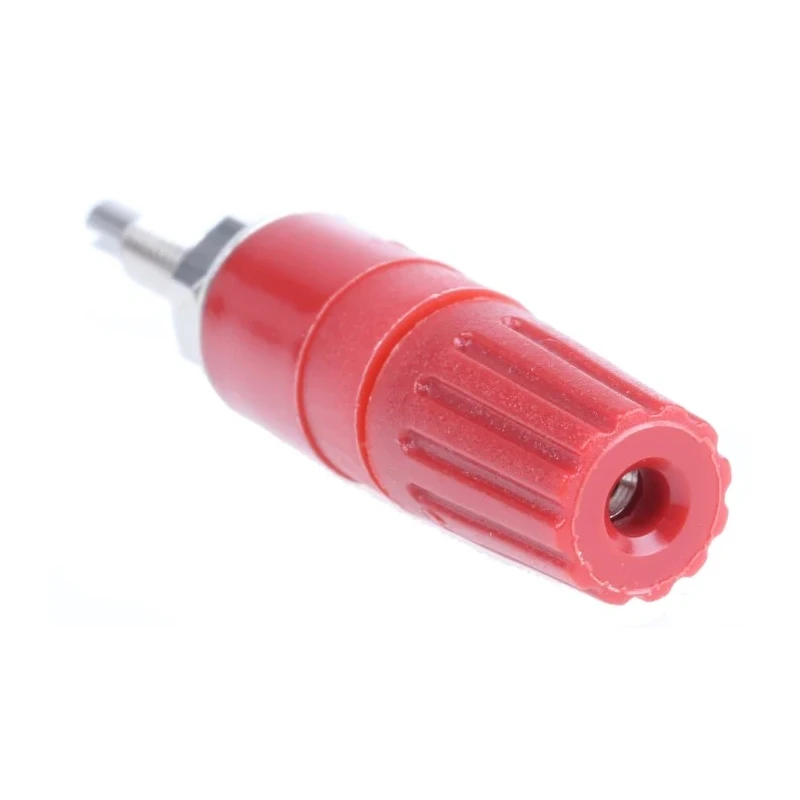

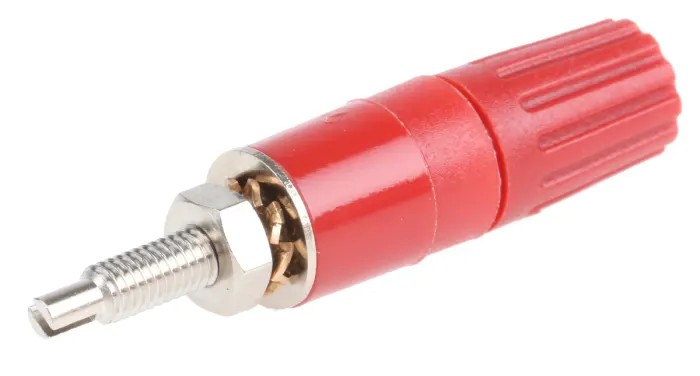

RS PRO Red 15A Binding Post with Brass Contacts and Nickel Plating, Female, 2mm Hole Diameter 23.0290-22

Staubli 23.0290-22 binding post is a reliable electrical connector designed for use in test and measurement equipment as well as various electronic assemblies. Featuring a red color coding for easy identification, it supports a maximum current of 15A and voltage applications up to 30 and 60 volts AC.

The binding post is made with brass contact material that is nickel-plated to provide excellent corrosion resistance and durability under frequent usage conditions. Its female connector design allows compatibility with various test leads and electronic instruments.

With a compact size that includes a 2 mm hole diameter for wiring and an 18 mm height above the mounting panel, this binding post suits installations with a maximum panel thickness allowance of 4 mm. It is certified to RoHS standards, ensuring compliance with environmental safety regulations.

This product is ideally suited for industrial, laboratory, and electrical test & measurement applications where safe and reliable connector performance is essential. Swiss origin guarantees high manufacturing standards and quality assurance.

The binding post has nickel-plated brass contacts ensuring corrosion resistance. Rated for 30 and 60 volts AC, suitable for moderate voltage applications. Features a female gender connector with a 2 mm hole diameter. Measures 18 mm in height above the panel with a maximum panel thickness of 4 mm.

Constructed with high-quality materials and compliant with RoHS standards. Explore the full range of Binding Posts and other test connectors in the Electronics Components category for your technical and industrial needs on EnvMart.
