RS PRO Green 16A Binding Post with Brass Contacts and Nickel Plated 423-223

Free Delivery in India | Lowest Global Shipping Charges

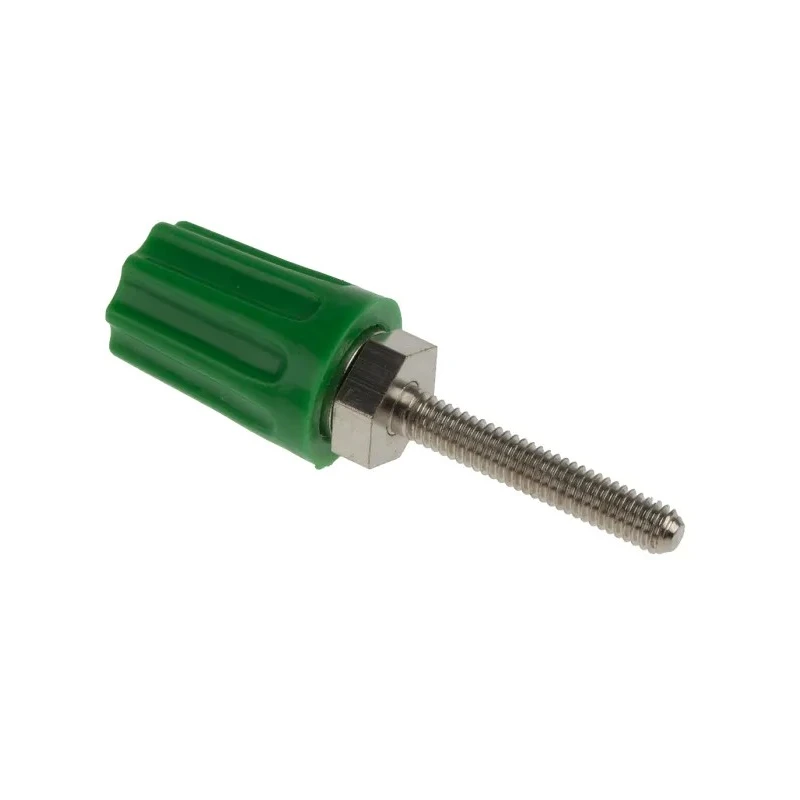

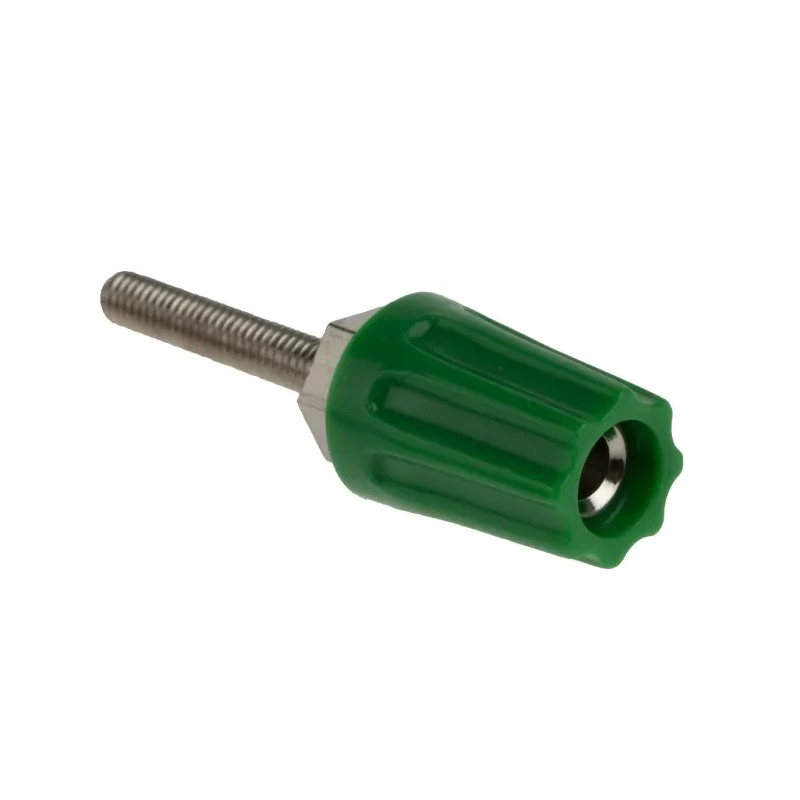

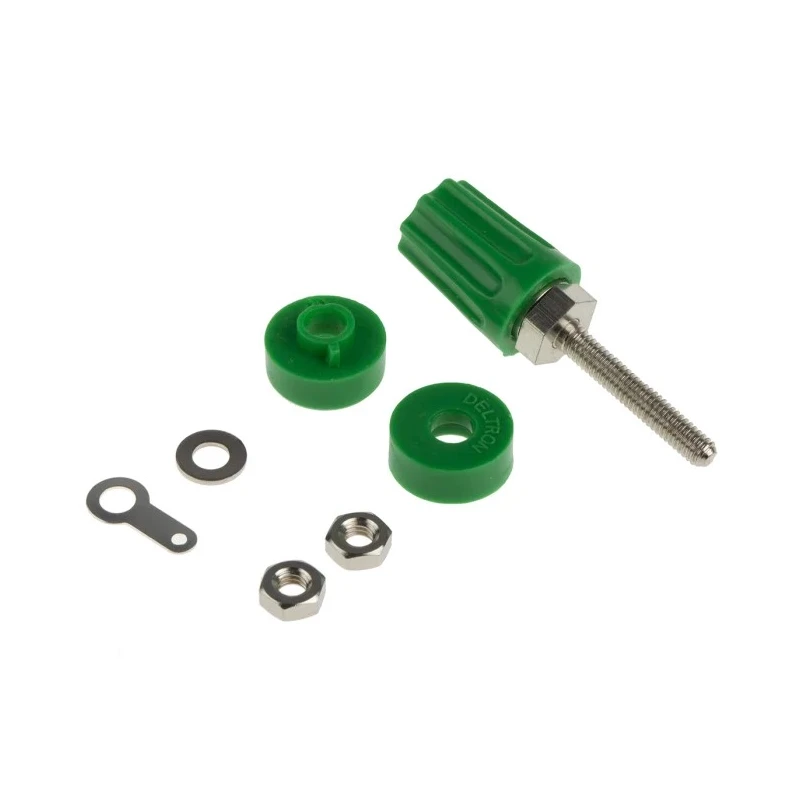

RS PRO Green 16A Binding Post with Brass Contacts and Nickel Plated 423-223

Name: RS PRO Green 16A Binding Post with Brass Contacts and Nickel Plated 423-223
Brand: RS PRO
SKU: 137125
Price: 2.69 USD
Availability: InStock



Category Binding Posts Brand RS PRO Condition New

Specifications

Country of Origin	United Kingdom
Voltage	50V dc
Brand	RS PRO
Colour	Green
Current	16A
Model	423-223
Gender	Female
Contact Material	Brass
Contact Plating	Nickel
Maximum Panel Thickness	12.7mm

Key Features

Constructed with brass contacts for excellent electrical conduction.
Green color-coded body for easy identification.
Nickel plating ensures corrosion resistance and durability.
Rated for a current of 16A with a maximum voltage of 50V DC.
Suitable for panel thickness up to 12.7mm for secure installation.
Features an insulated terminal to enhance safety during use.
Designed to withstand up to 10,000 mating cycles ensuring long-lasting performance.
Compact size with a 14mm overall diameter and height from 24mm to 32mm above the panel.

Product Description

RS PRO 423-223 Green 16A Binding Post with Brass Contacts and Nickel Plated is engineered for reliable electrical connections in test and measurement instruments. It is designed to join wires to electronic equipment safely and efficiently, providing low contact resistance and excellent conductivity.

The binding post features brass contacts for superior electrical conduction, nickel plating for corrosion resistance, and a green molded acetal plastic body for durability and electrical insulation. Rated for a maximum current of 16A and operating voltage up to 50V DC, this component supports a panel thickness up to 12.7mm, making it versatile for various panel mounting scenarios.

Durability is enhanced with a robust contact point pressure and the ability to sustain 10,000 mating cycles. The binding post has a compact overall diameter of 14mm and stands 24mm to 32mm above the panel surface, ensuring ease of installation and secure connection.

Ideal for industrial, laboratory, electrical test, and measurement environments, this binding post ensures stable and safe connectivity. It complies with required industry standards and bears no formal approvals but is tested for performance and reliability.

Constructed with high-quality brass contacts for excellent conduction. Nickel plating provides enhanced corrosion resistance. Green acetal body ensures insulation and ruggedness. Suitable for panel thickness of up to 12.7mm.

Supports a current rating of 16A and voltage rating of 50V DC. Designed for high durability with a minimum of 10,000 mating cycles. Compact form factor with 14mm diameter and 24-32mm height above panel. Thread size of 4BA clearance for mounting compatibility.

Manufactured in the United Kingdom under the RS PRO brand.

This RS PRO binding post is a trusted choice for engineers and technicians requiring reliable connectors for various electronic and electrical testing applications. Explore more quality components within the RS PRO range at EnvMart for comprehensive solutions.
