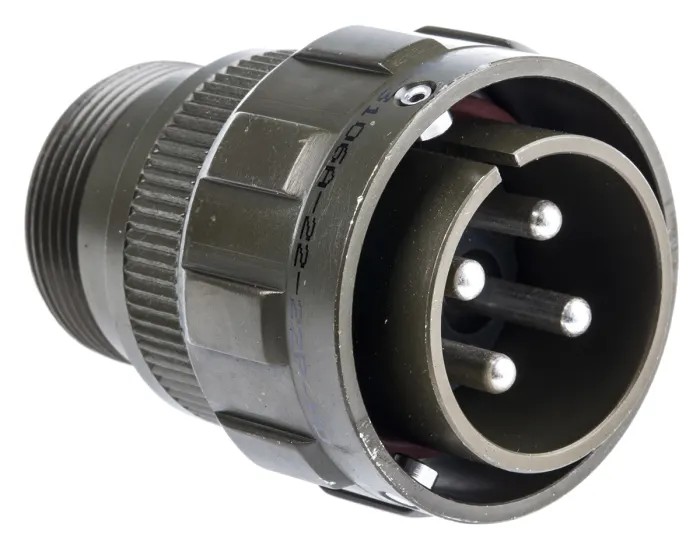

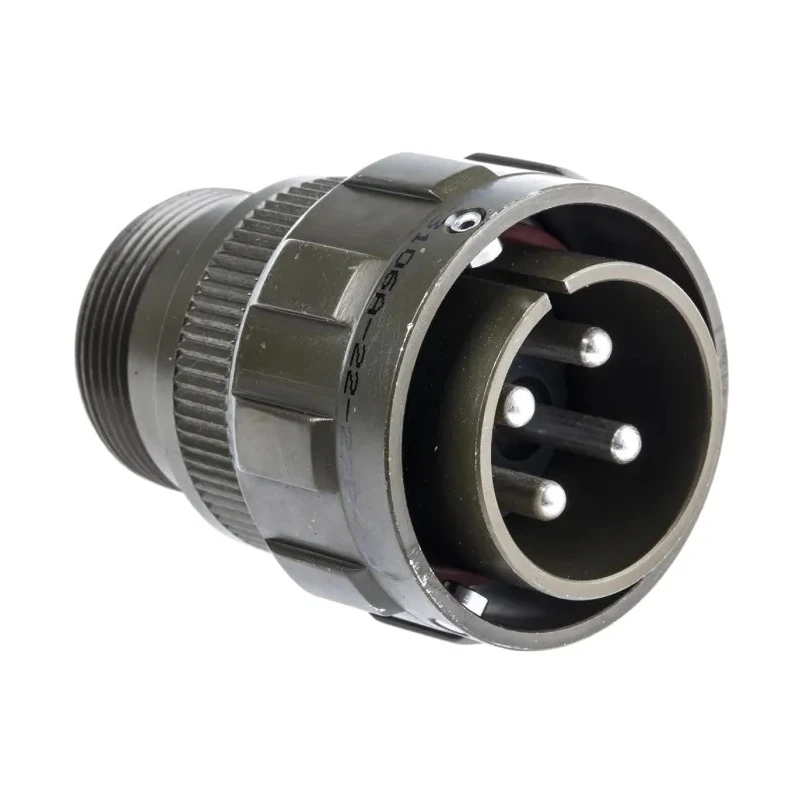

Amphenol Limited MIL Spec Circular Connector Brass Straight 4 Way Cable Connector 500V, 46A, Shell Size 97B-3106A-22-22P-HD

Amphenol Limited model 97B-3106A-22-22P-HD is a high-quality Mil Spec Circular Connector designed for robust industrial and military use. This brass straight 4-way cable connector supports a current rating of 46A and withstands 500V AC voltage, making it suitable for reliable power transmission and signal integrity in harsh environments.

The connector features an olive-colored aluminium alloy housing finished with olive drab cadmium plating for resistance against corrosion and environmental damage. Its four male contacts are made of brass and plated with silver for excellent conductivity and durability. The connector employs bayonet coupling for quick and secure mating, and cable mounting termination is via soldering, providing strong mechanical and electrical connections.

Designed to meet MIL-DTL-5015 standards, it supports a wide operating temperature range from minus 55 degrees Celsius up to 125 degrees Celsius, ensuring stable performance under extreme temperature fluctuations. The olive drab finish and polychloroprene insulator further enhance environmental resistance. The connector’s shell size 22 and straight orientation make it compatible with industry-standard equipment setups.

This connector is ideal for use in military, industrial, aerospace, and transport applications where ruggedness, environmental sealing, and electrical performance are critical. Its construction and conforming standards guarantee interoperability with compatible BS 9522 and MIL-C-5015 connectors.

Features include bayonet locking mechanism, strain relief for cable durability, and compliance with strict military specifications for quality assurance. This connector features a brass construction with silver-plated contacts for enhanced conductivity and corrosion resistance.

It supports a rated current of 46A and an operating voltage of 500V AC. The bayonet mating type and straight orientation allow secure and easy connections. Operates reliably within a temperature range of -55°C to 125°C. The olive drab cadmium plated housing provides environmental protection ideal for demanding conditions.

Complies with MIL-DTL-5015 military specifications ensuring quality and compatibility. Equipped with strain relief for cable protection and durability. Designed with standard shell size 22 and features four male contacts for cable mounting.

Explore more from Amphenol Limited connectors and enhance your industrial and military communication and power systems with trusted, durable components available at EnvMart.
