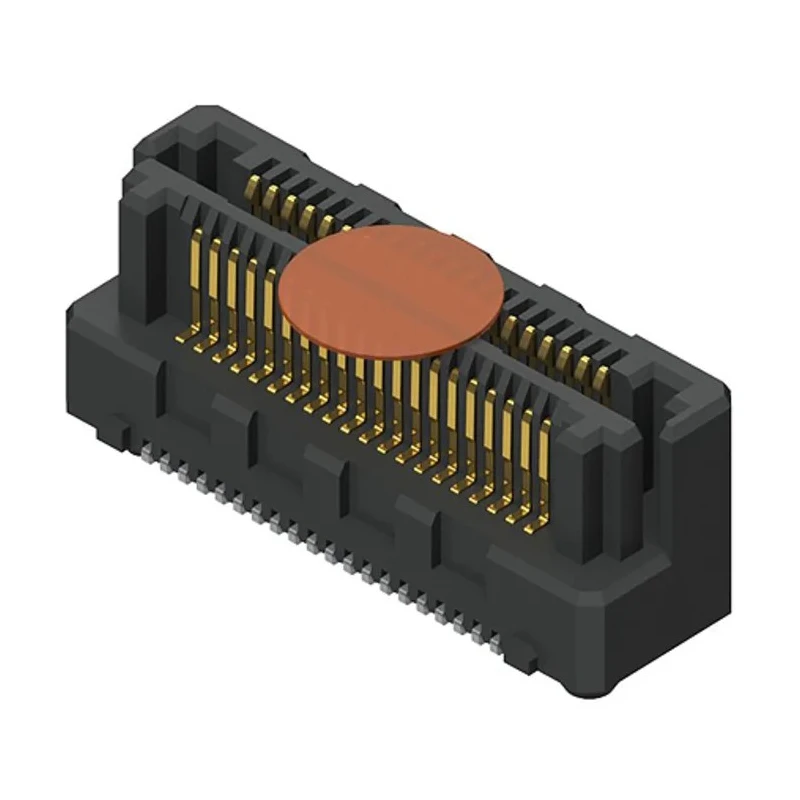

Samtec 0.5 mm Pitch 40 Contact 2 Row Straight Surface Mount Shrouded PCB Header LSHM-120-04.0-L-DV-A-N-K-TR

Samtec LSHM-120-04.0-L-DV-A-N-K-TR is a 0.5 mm pitch, 40 contact, 2-row straight surface mount shrouded PCB header designed for high-speed board-to-board connections. Manufactured with a liquid crystal polymer housing and gold-plated phosphor bronze contacts, this connector delivers excellent electrical performance and durability for industrial and electronic applications.

This connector series features hermaphroditic SMT strips with a slim, ruggedized design, reducing inventory costs through a self-mating configuration. The razor beam contacts ensure reliable high-speed electrical connections and produce an audible click to indicate a secure mating. The shrouded design offers protection for contacts and improved connection stability.

Operating within temperature ranges of -55°C to 125°C and voltages up to 226 VAC, the LSHM connector supports current up to 2 A. It is ideal for high-speed data transfer applications, offering speeds up to 23 Gbit/s for vertical mounting, and 19 Gbit/s for horizontal configurations. The connectors can be stacked to create various height configurations from 5 mm to 12 mm, providing versatile design flexibility.

This product is compatible with HLCD series high-speed cable assemblies, expanding its applicability in complex electronic assemblies and telecom equipment. Its robust design and materials make it suitable for use in industrial, electronic manufacturing, telecommunications, and high-density electronic interconnect environments.

High-speed, hermaphroditic SMT board-to-board connector design. Slim, ruggedized form factor reduces inventory and supports compact designs. Gold-plated phosphor bronze contacts for reliable conductivity. Audible secure connection indicator through contact design.

Wide operating temperature range from -55°C to 125°C. Support for currents up to 2 A and voltages up to 226 V AC. Stackable height configurations for versatile deployment options. Compatible with HLCD high-speed cable assemblies for extended use cases.
