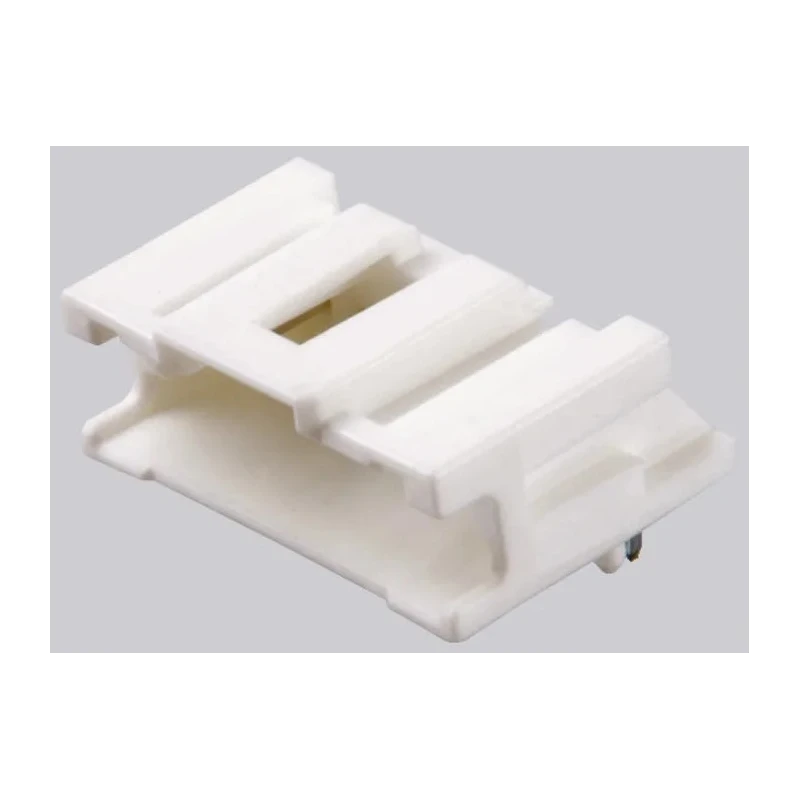

Molex MicroClasp Series PCB Header, Right Angle, Through Hole, Shrouded, 8 Contacts, 2 mm Pitch, 1 Row, 3A, 250V 55935-0810

Free Delivery in India | Lowest Global Shipping Charges

Molex MicroClasp Series PCB Header, Right Angle, Through Hole, Shrouded, 8 Contacts, 2 mm Pitch, 1 Row, 3A, 250V 55935-0810

Name: Molex MicroClasp Series PCB Header, Right Angle, Through Hole, Shrouded, 8 Contacts, 2 mm Pitch, 1 Row, 3A, 250V 55935-0810
Brand: Molex
SKU: 85204
Price: 0.98 USD
Availability: InStock



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Molex
Orientation	Right Angle
Current	3A
Mount Type	Through Hole
Housing Material	Polyester
Contact Material	Tin
Series	MicroClasp
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Interfaces	lance system
Number of Rows	1
Pitch	2mm
Contact Plating	Tin
Number of Contacts	8
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.2mm
Mating Pin Length	2mm

Key Features

Features a compact 2 mm pitch suitable for modern PCB layouts.
Right angle orientation supports efficient PCB space savings.
Shrouded housing ensures secure mating and latch protection.
Supports up to 3A current and 250V voltage for robust performance.
Through hole mount type provides reliable soldering and mechanical stability.
Male tin-plated contacts for high conductivity and corrosion resistance.
Polyester material housing offers durability and thermal stability.
Easy mating and unmating with inner positive lock system.

Product Description

The Molex 55935-0810 MicroClasp Series PCB Header is a high-quality right angle, through hole, shrouded wire-to-board connector designed for demanding commercial and industrial electronics applications. It is part of the MicroClasp range, distinguished by its compact 2 mm pitch, which allows for efficient component positioning and board space savings.

This header features 8 tin-plated male contacts arranged in a single row, providing reliable electrical performance. With a rated current of up to 3A and 250V voltage, it is suitable for power and signal transmission in various PCB designs. The shrouded housing with an inner positive lock ensures secure retention and effective latch protection, offering an audible ‘click’ upon mating and reducing accidental disconnection risk.

The through hole, solder termination design facilitates robust mechanical support and straightforward PCB assembly. The polyester housing material ensures excellent durability, chemical resistance, and thermal stability for operation in environments from -40°C to 105°C. An easy mating/unmating process is achieved via the unique MicroClasp terminal architecture, which also provides low insertion and withdrawal forces and two-point contact design for consistent electrical connectivity.

This PCB header is fully compatible with wire-to-board systems, making it a favoured choice for electronic assemblies requiring secure, high-density connections. Applications span industrial electronics, instrumentation, consumer devices, automotive modules, and control panels. Engineers benefit from its space-saving form factor and high current capacity, particularly when board real estate and reliable contact retention are crucial.

Technical highlights include: 2 mm pitch, 8 contacts, 1 row, tin contact material and plating, through hole mount, shrouded housing, male contact gender, tail pin length 3.2 mm, mating pin length 2 mm, and operational temperature range of -40°C to 105°C. The product adheres to UL 94V-0 material standard for flammability and safety. It does not have additional approvals listed.
