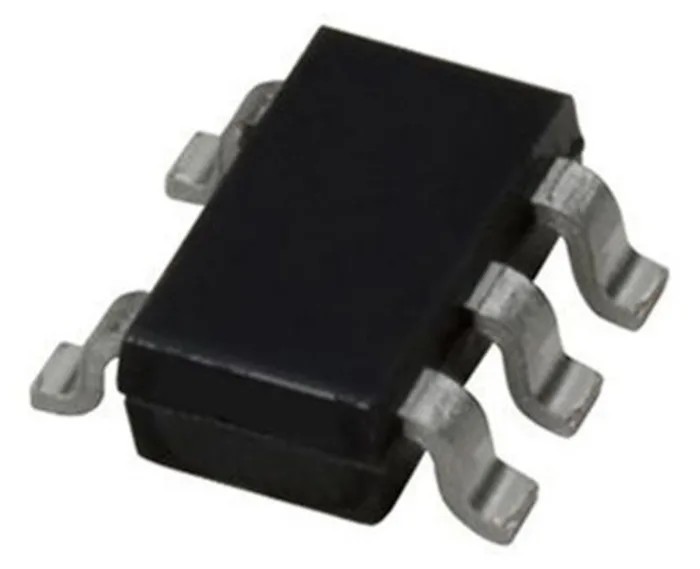

Texas Instruments Comparator Open Drain Output 45 ns Response Time 5.5 V Max Supply Voltage 3 V Min Supply LMV7235M7/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 0.9mm |
| Length | 2mm |
| Model | LMV7235M7/NOPB |
| Width | 1.25mm |
| Mount Type | Surface |
| Output type | Open Drain |
| Maximum Operating Temperature | 85°C |
| Package Type | SC-70 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Comparator Type | General Purpose |
| Pin Count | 5 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
| Supply Current | 110μA |
| Typical Response Time | 45ns |
Key Features
- General purpose comparator designed for surface mount applications.
- Features an open drain output suitable for various interfacing needs.
- Typical response time is fast at 45 nanoseconds for rapid switching.
- Operates reliably within a temperature range of -40°C to 85°C.
- Low supply current consumption of 110 microamperes ensures energy efficiency.
- Compact SC-70 package with 5 pins enables space-saving PCB designs.
- Wide supply voltage range from 3 V minimum to 5.5 V maximum.
- Single channel comparator suitable for a variety of electronic circuits.
Product Description
Texas Instruments LMV7235M7/NOPB is a general purpose comparator featuring an open drain output suitable for rapid switching applications. It operates with supply voltages ranging from 3 V to 5.5 V and offers a typical response time of 45 nanoseconds, enabling fast and reliable signal comparison.
The comparator comes in a space-efficient 5-pin SC-70 surface mount package with physical dimensions of 2 mm in length, 1.25 mm in width, and 0.9 mm in height, making it ideal for compact electronic designs.
Low power consumption is achieved with a supply current of just 110 microamperes, making it suitable for battery-powered and energy-sensitive devices. It functions effectively across a broad operating temperature range of -40°C to 85°C for versatility in diverse environments.
This device is commonly applied in electronic circuits requiring precision voltage comparison, such as ADC interfaces, signal monitoring, and threshold detection in industrial, commercial, and laboratory instrumentation.
The LMV series from Texas Instruments is recognized for reliability and performance in semiconductor comparators, supporting applications ranging from consumer electronics to professional laboratory equipment. Although not certified for automotive standards, it delivers consistent operation in general-purpose designs.
General purpose comparator designed for surface mount applications. Features an open drain output suitable for various interfacing needs. Typical response time is fast at 45 nanoseconds for rapid switching. Operates reliably within a temperature range of -40°C to 85°C.
Low supply current consumption of 110 microamperes ensures energy efficiency. Compact SC-70 package with 5 pins enables space-saving PCB designs. Dimensions are 2 mm length, 1.25 mm width, and 0.9 mm height for minimal footprint.
Wide supply voltage range from 3 V minimum to 5.5 V maximum. Single channel comparator suitable for a variety of electronic circuits. Not certified under automotive standards but designed for general industrial use.
Explore the Amplifiers & Comparators category on EnvMart for more semiconductor components from Texas Instruments and other leading brands to support your electronic circuit design and industrial applications.
Explore more products in our Amplifiers & Comparators category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The typical response time of this comparator is 45 nanoseconds, enabling rapid switching for signal comparison.
It operates within a supply voltage range of 3 V minimum to 5.5 V maximum.
The comparator comes in a compact SC-70 package with dimensions of 2 mm in length, 1.25 mm in width, and 0.9 mm in height.
It has a low supply current consumption of 110 microamperes, making it energy efficient.
It features an open drain output, suitable for various interfacing needs in electronic circuits.
This model is a single channel comparator, designed for general purpose applications.
It is designed for surface mount applications, facilitating compact PCB designs.
No, this comparator is not certified under automotive standards but is suitable for general industrial use.
It is commonly applied in electronic circuits requiring precision voltage comparison, such as ADC interfaces and signal monitoring.
The comparator is packaged in an SC-70 type, which is compact and suitable for space-saving designs.
This comparator is manufactured by Texas Instruments, a recognized brand in semiconductor components.
