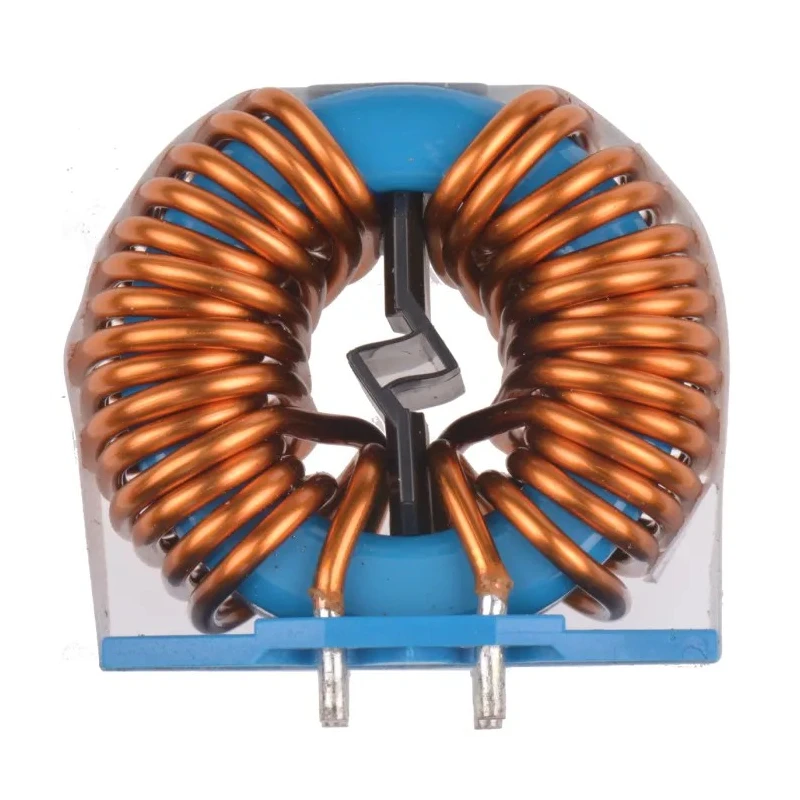

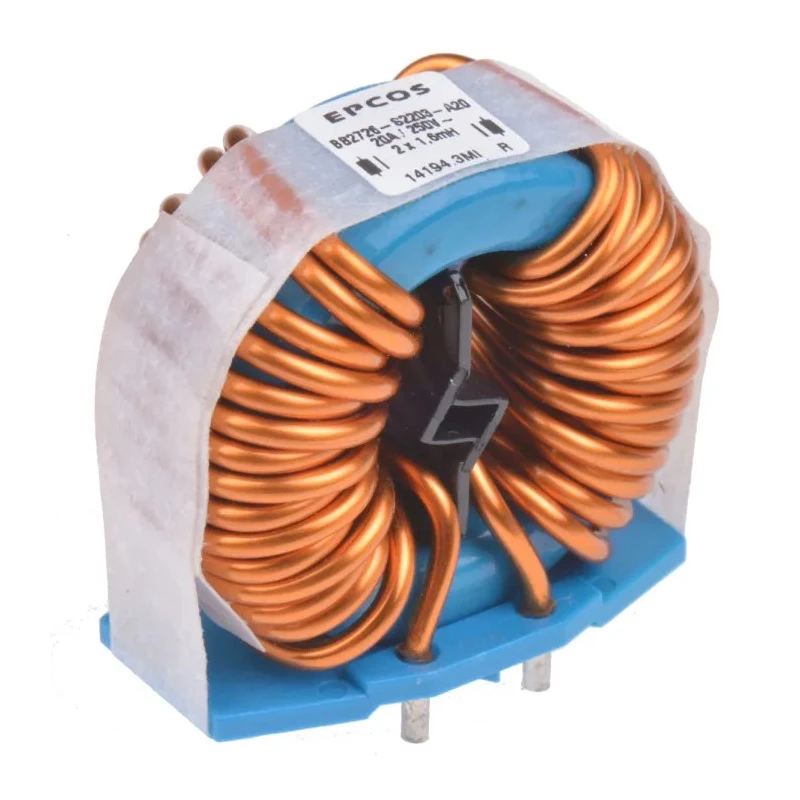

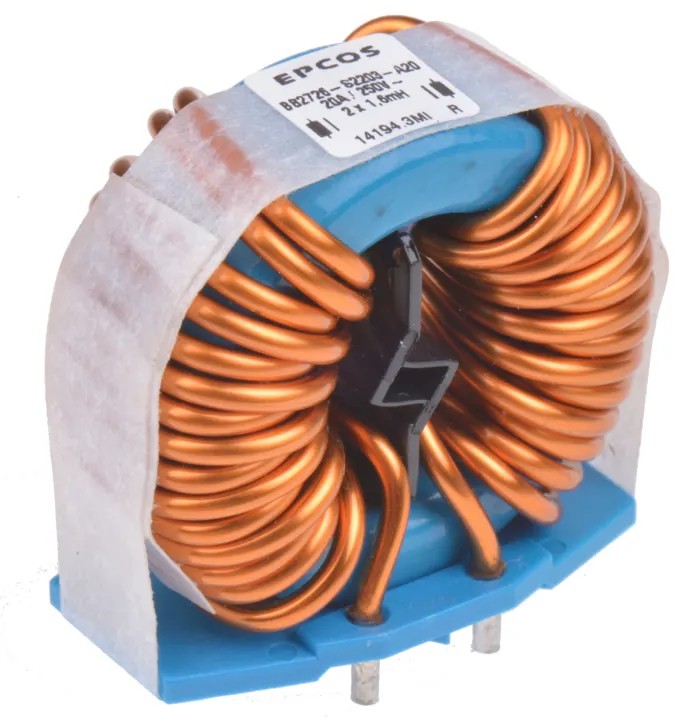

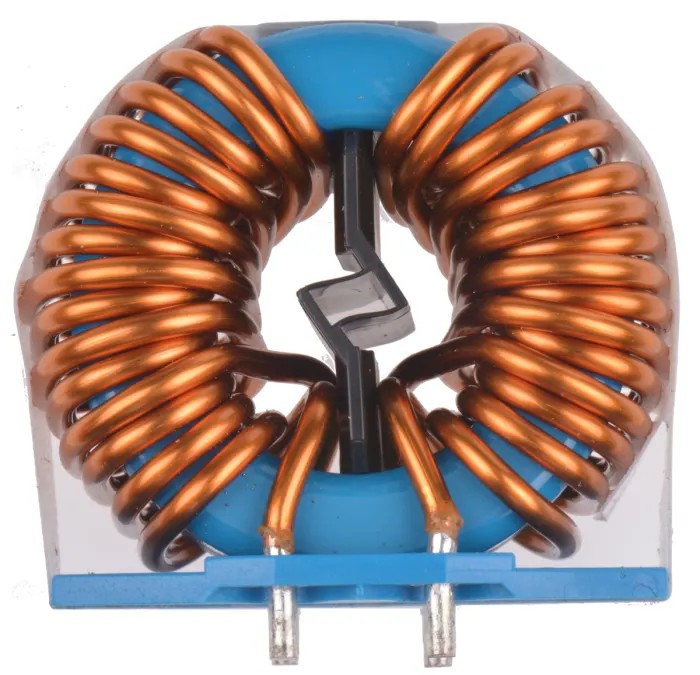

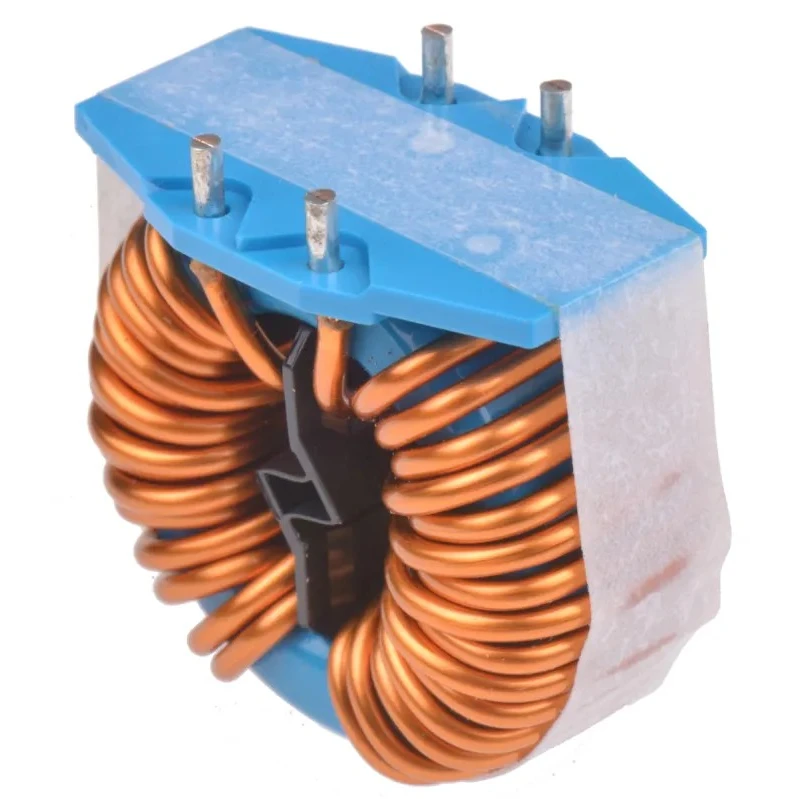

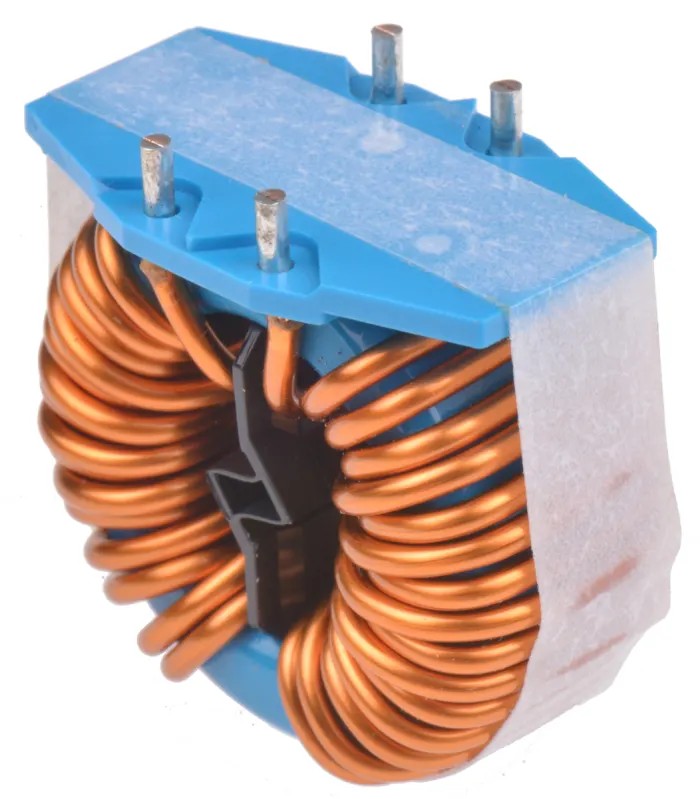

TDK 1.6 mH Ferrite Power Line Choke, Max Self Resonant Frequency 10 kHz, 20 A DC Current, 4.5 mΩ DC B82726S2203A020

Free Delivery in India | Lowest Global Shipping Charges

TDK 1.6 mH Ferrite Power Line Choke, Max Self Resonant Frequency 10 kHz, 20 A DC Current, 4.5 mΩ DC B82726S2203A020



Category Passive Components Brand TDK Condition New

Specifications

Country of Origin	India
Diameter	45mm
Brand	TDK
Height	41mm
Length	45mm
Model	B82726S2203A020
Depth	25mm
Packaging	Box
Mount Type	Radial
Series	B82726S
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Test Frequency	100kHz
Core Material	Ferrite
Maximum Voltage	250V ac
Inductance	1.6mH
Standards/Approvals	EN, VDE, RoHS
Maximum DC Current	20A
Maximum DC Resistance	4.5mΩ
Inductance Tolerance	-30 to 50 %
Termination Style	PC Pin
Maximum Self Resonant Frequency	10kHz
Lead Pitch	10mm
Lead Diameter	2mm

Key Features

Ferrite core provides efficient suppression of common-mode interference.
Maximum self-resonant frequency is 10 kHz, ideal for power line applications.
Maximum DC resistance is 4.5 milliohms, maintaining low power loss.
Rated for 250 V AC operation with radial mount for easy PCB integration.
Operating temperature range from -40°C to 125°C allows for industrial use cases.
Compact dimensions with 45 mm diameter and 41 mm height.
Standard lead pitch of 10 mm with 2 mm lead diameter ensures compatibility with wave soldering.
Complies with EN, VDE, and RoHS standards for quality and safety.

Product Description

TDK B82726S2203A020 is a high-performance ferrite power line choke designed for suppressing common-mode interference in electronic circuits. It features a ferrite core material that enables stable inductance of 1.6 mH, making it suitable for switch-mode power supplies and power line filtering applications at industrial and commercial levels.

The choke supports a maximum DC current of 20 A and has a low DC resistance of 4.5 milliohms to minimize energy loss and heat generation during operation. Its maximum self-resonant frequency of 10 kHz makes it effective in reducing interference up to this frequency range.

Physically, this component has a diameter of 45 mm, a height of 41 mm, and a depth of 25 mm, making it a compact solution for radial mount PCB assembly with a lead pitch of 10 mm and lead diameter of 2 mm. The construction includes a polycarbonate base plate and spacer compliant with UL 94 V-0 standards for enhanced safety and durability.

The device is rated for AC voltages up to 250 V and can operate reliably in temperatures ranging from -40°C to 125°C. This specification ensures suitability for industrial, laboratory, manufacturing, and power electronics environments.

Ferrite core for effective interference suppression. 1.6 mH inductance with -30 to +50% tolerance. Radial mount with PC pin termination style. Compliant with EN, VDE, and RoHS certifications. Designed for high current applications requiring wave soldering implementation.

Compact and durable design suitable for power line choke needs.

This power line choke series B82726S by TDK offers reliable performance for power line noise suppression in electrical and electronic devices. It is applicable in automotive, industrial controls, and electrical distribution systems where EMI filtering is critical.
