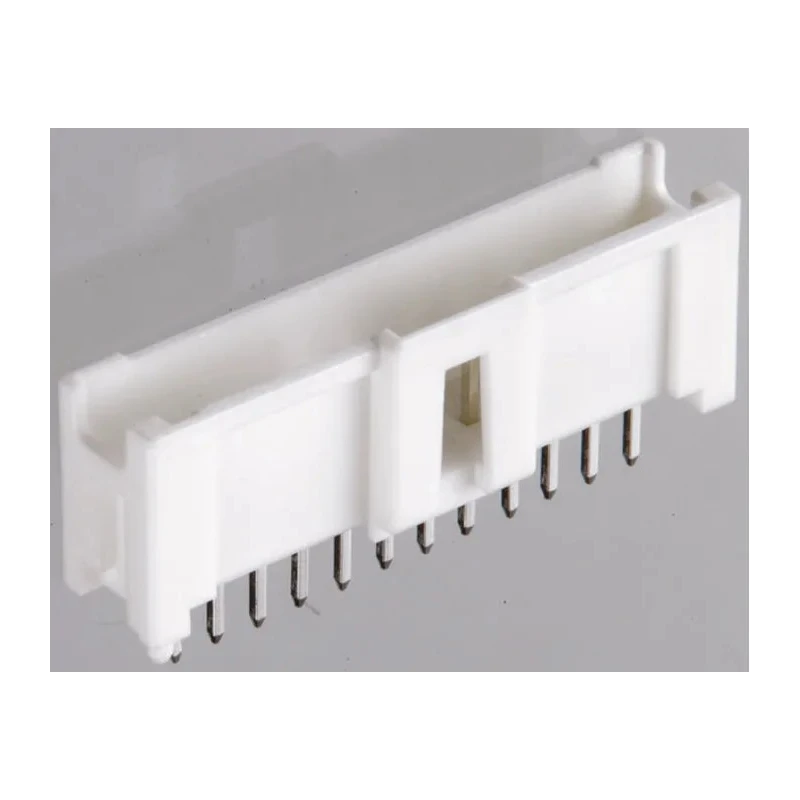

Molex MicroClasp Series Straight Through Hole PCB Header, 12 Contacts, 2 mm Pitch, Shrouded, 1 Row, 250V, 3A 55932-1210
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Tin |
| Series | MicroClasp |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | lance system |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 2mm |
Key Features
- Provides 12 contacts in a single row, maximizing PCB connection efficiency.
- Features a 2 mm pitch for compact design and space savings on circuit boards.
- Shrouded and straight orientation enhances secure mating and retention.
- Wire-to-board mounting and through hole termination enable reliable soldering.
- Rated for up to 3A current and 250V voltage, suitable for high-current PCB applications.
- Constructed with polyester housing and tin-plated contacts for durability and corrosion resistance.
- Operating temperature range from -40°C to 105°C supports demanding environments.
- Inner positive lock design ensures secure retention and audible mating click.
Product Description
Molex 55932-1210 MicroClasp Series Straight Through Hole PCB Header is engineered to deliver efficient, secure wire-to-board connections in electronics and industrial devices. Designed with 12 male contacts arranged in a single row, this shrouded header features a compact 2 mm pitch for significant space savings on circuit boards. The straight-through-hole orientation ensures reliable installation and optimal mating alignment.
Constructed from high-quality polyester for the housing and tin-plated tin contacts, the header offers excellent durability and corrosion resistance. The inner positive lock and housing lance system provide latch protection and an audible click during mating, enhancing secure retention and user confidence. Low insertion and withdrawal forces enable easy assembly and disassembly, while the two-point, high-current contact design supports robust electrical performance.
This PCB header is rated for a maximum current of 3A and a voltage up to 250V, making it suitable for a range of high-current and signal applications. The termination type is solder, with a tail pin length of 3.2 mm and a mating pin length of 2 mm, ensuring compatibility with standard PCB layouts. Operating efficiently in temperatures from -40°C to 105°C, it meets the demands of both industrial and laboratory environments.
The Molex MicroClasp™ range is renowned for secure wire-to-board connections, space-efficient design, and features that simplify mating and unmating. Terminal protection, secure retention, and terminal design support smooth assembly, while the shrouded configuration minimizes accidental contact and enhances mechanical stability.
Applications include industrial control systems, laboratory electronics, commercial equipment, manufacturing automation, and power connectors on PCBs. Ideal for engineers requiring reliable wire-to-board interface components in environments where vibration, temperature extremes, and compact footprints are important considerations.
Explore more Molex PCB connection solutions and related components in Electronics & Electricals at EnvMart.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 3A, making it suitable for high-current applications.
It has a voltage rating of up to 250V, allowing it to be used in various electrical applications.
The contacts are arranged with a pitch size of 2 mm, which supports compact PCB designs.
This unit features 12 male contacts arranged in a single row, optimizing connection efficiency.
It utilizes a solder termination type, ensuring reliable connections during installation.
The housing is made from polyester, and the contacts are tin-plated, providing durability and corrosion resistance.
It operates effectively within a temperature range of -40°C to 105°C, suitable for demanding environments.
The tail pin length is 3.2 mm, ensuring compatibility with standard PCB layouts.
The mating pin length is 2 mm, facilitating secure connections with compatible components.
This model supports through hole mounting, which allows for reliable soldering on PCBs.
It is a shrouded header, which enhances secure mating and retention during use.
