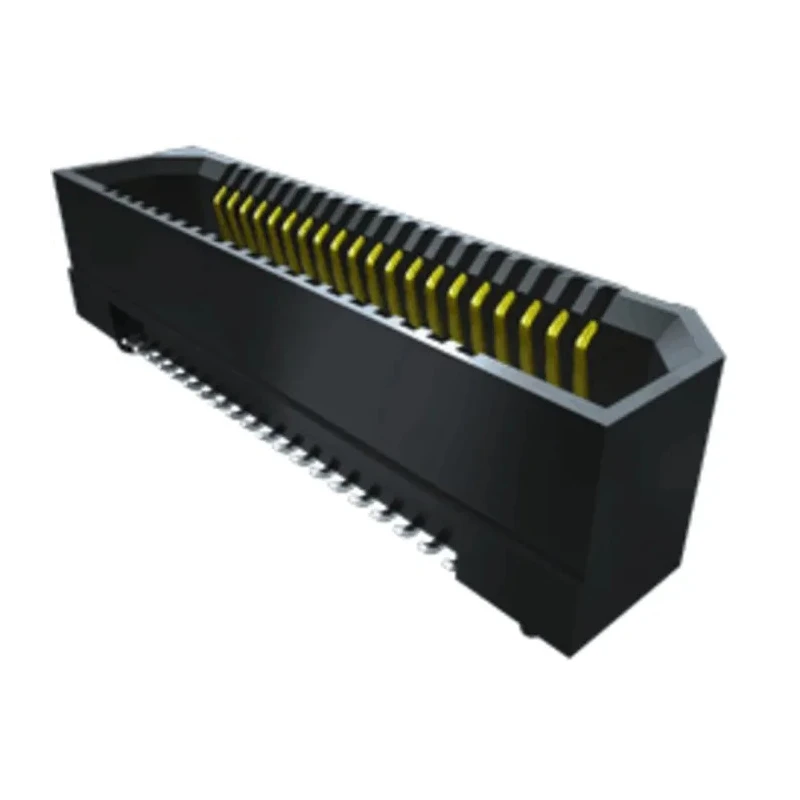

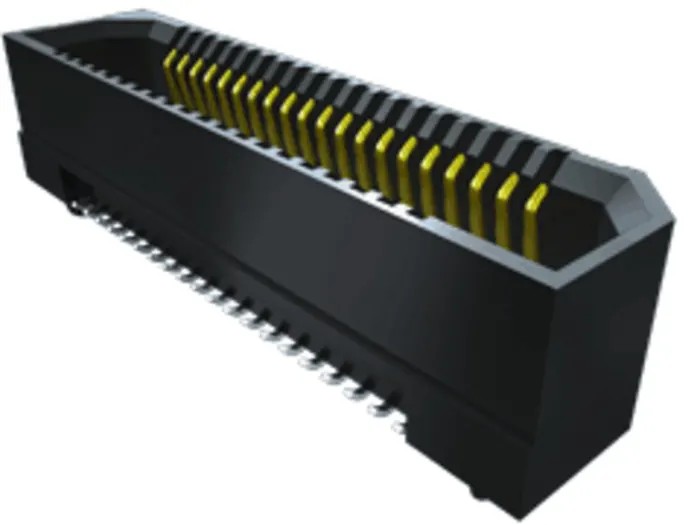

Samtec Straight Surface Mount PCB Socket , 120 Contacts, 2 Row, 0.8 mm Pitch, Board-to-Board, 318V, 2.2A ERF8

Free Delivery in India | Lowest Global Shipping Charges

Samtec Straight Surface Mount PCB Socket , 120 Contacts, 2 Row, 0.8 mm Pitch, Board-to-Board, 318V, 2.2A ERF8

Name: Samtec Straight Surface Mount PCB Socket , 120 Contacts, 2 Row, 0.8 mm Pitch, Board-to-Board, 318V, 2.2A ERF8
Brand: Samtec
SKU: 80985
Price: 12.6 USD
Availability: InStock



Category PCB Socket Brand Samtec Condition New

Specifications

Country of Origin	United States
Voltage	318V
Brand	Samtec
Orientation	Straight
Current	2.2A
Model	ERF8
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Bronze
Series	ERF8
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	2
Positions	Up to 200
Pitch	0.8mm
Contact Plating	Gold
Number of Contacts	120
Connector System	Board-to-Board
Stacking Height	18mm
Row Pitch	4.5mm
Stack Height	7.00 mm - 16.00 mm

Key Features

Provides robust electrical connection with 120 contacts organized in 2 rows for high-density PCB layouts.
Features a precise 0.8 mm pitch for compact integration and efficient signal transmission in high-speed circuits.
Rated up to 2.2A and 318V, suitable for demanding board-to-board applications in industrial electronics.
Surface mount with straight orientation ensures secure and reliable placement during automated assembly.
Constructed from liquid crystal polymer housing with gold-plated bronze contacts for high durability and wear resistance.
Board-to-board system supporting stack heights up to 18 mm, ideal for modular electronic assemblies.
Wide operating temperature range from -55°C to 125°C allows reliable operation in harsh environments.
Compliant with advanced signal speeds, supporting up to 28+ Gbps for high-speed data applications.

Product Description

The Samtec ERF8-060-05.0-S-DV-K-TR straight surface mount PCB socket is designed for advanced board-to-board connections in demanding industrial, embedded, and electronics applications. Incorporating 120 contacts organized across 2 rows, this socket offers high-density signal interconnect in a compact form factor with a fine 0.8 mm pitch. The product is rated for up to 2.2A and 318V, providing reliable performance for a wide range of power and signal requirements.

With surface mount termination and straight orientation, this socket facilitates efficient placement on modern PCBs using automated assembly methods, ensuring strong mechanical and electrical stability. Its robust housing material, liquid crystal polymer, and gold-plated bronze contacts deliver high durability, excellent wear life, and corrosion resistance, making it suitable for extended use in harsh environments.

Featuring a board-to-board connector system, the ERF8-060-05.0-S-DV-K-TR supports stack heights up to 18 mm, allowing for flexible modular designs and multi-layer PCB integration. The socket's smooth broad milled contact surface, a hallmark of Samtec Edge Rate® technology, enhances signal integrity and wear life, enabling applications ranging from precision instrumentation to data acquisition and industrial control.

The wide operating temperature range from -55°C to 125°C ensures reliable function across extreme conditions, while advanced electrical performance supports signal speeds up to 28+ Gbps, suitable for high-speed data, networking, and telecommunications circuits.

Robust straight surface mount connector design for board-to-board PCB interfacing. Fine pitch and ample contact density for compact, high-speed applications. Gold-plated bronze contacts and LCP housing ensure lasting performance.

Stack height flexibility enhances design modularity. Excellent suitability for industrial electronics, laboratory setups, instrumentation, and embedded computing systems.

Samtec offers a wide range of high-speed connector solutions for industrial electronics, laboratory instrumentation, telecom, and automation. Discover more Samtec PCB Sockets and board-to-board connectors in the Electronics & Electricals category at EnvMart.
