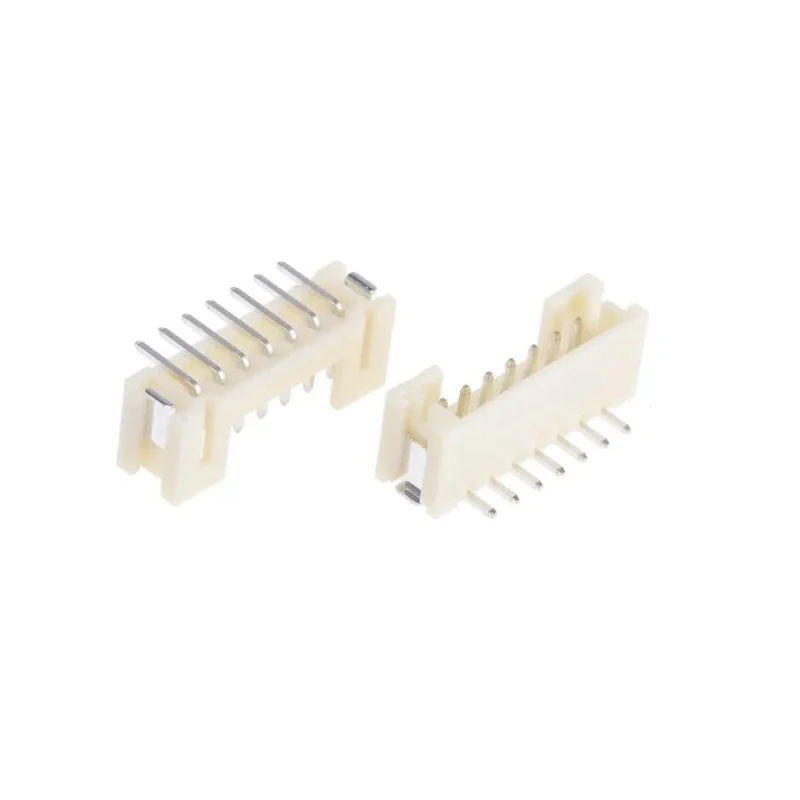

JST PH Series Straight Surface PCB Header 7 Contacts 2 mm Pitch 1 Row Shrouded B7B-PH-SM4-TB(LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST PH Series Straight Surface PCB Header 7 Contacts 2 mm Pitch 1 Row Shrouded B7B-PH-SM4-TB(LF)(SN)



Category PCB Connector Brand JST Condition New

Specifications

Country of Origin	India
Voltage	100V
Brand	JST
Orientation	Straight
Current	2A
Model	B7B-PH-SM4-TB(LF)(SN)
Mount Type	Surface
Housing Material	Polyamide
Contact Material	Copper Alloy
Series	PH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	2mm
Contact Plating	Tin
Number of Contacts	7
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Features a fully shrouded header for enhanced protection and reliability.
Supports current rating of 2A and voltage rating of 100 V AC.
Constructed with polyamide housing and copper alloy contacts plated with tin.
Suitable for surface mount technology with solder termination.
Operates reliably within the temperature range of -25°C to 85°C.
Designed for 32 AWG to 24 AWG wire sizes with low insertion force top entry.
Compact and cost-effective solution for high density PCB connections.

Product Description

JST B7B-PH-SM4-TB(LF)(SN) is a PH Series Straight Surface PCB Header featuring 7 contact points, a 2 mm pitch, 1 row, and a fully shrouded design. This connector is engineered to deliver high density, reliable wire-to-board connections in electronics and electrical assemblies.

The header uses a polyamide housing that ensures durability and excellent insulation. Copper alloy male contacts plated with tin assure effective conductivity and corrosion resistance. Designed for surface mount applications, the solder termination type facilitates ease of assembly and robust mechanical retention.

This PCB header supports a current rating of 2 amperes and operates at voltages up to 100 volts AC, suitable for various low-power electronic equipment. It maintains reliable mechanical and electrical performance over a wide operating temperature range from -25°C to 85°C, making it suitable for industrial, commercial, and consumer electronics environments.

The connector supports wire gauges from 32 AWG to 24 AWG and features a low insertion force top entry for easy wire insertion and maintenance. Its shrouded design provides protection against accidental contact and ensures secure mating with mating connectors.

Fully shrouded header for additional protection and reliability. Current rating of 2A and voltage rating of 100 V AC. Polyamide housing with copper alloy male contacts, tin plated. Surface mount solder termination suitable for PCB assembly.

Operating temperature range from -25°C to 85°C. Supports 7 contacts on a single row with 2 mm pitch. Designed for wire-to-board connection with low insertion force entry.

This JST PH Series PCB header is widely used in electronic manufacturing, industrial control systems, telecommunications, and consumer electronics for reliable circuit board connections. Its compact and cost-effective design aids in high-density PCB layout optimization.

Explore more connectors and accessories in the PCB Connector category on EnvMart for your project requirements.
