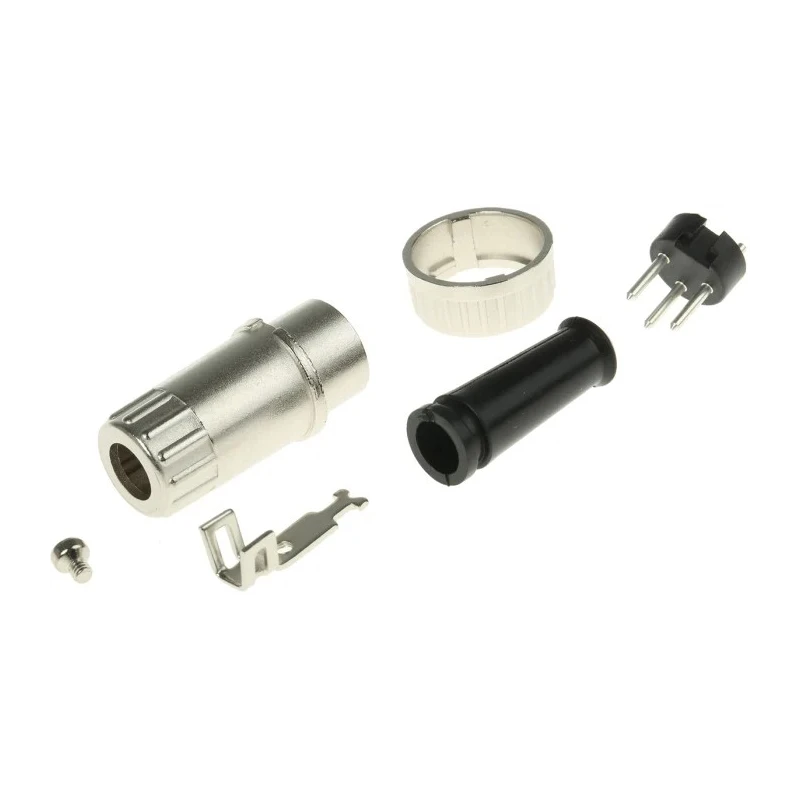

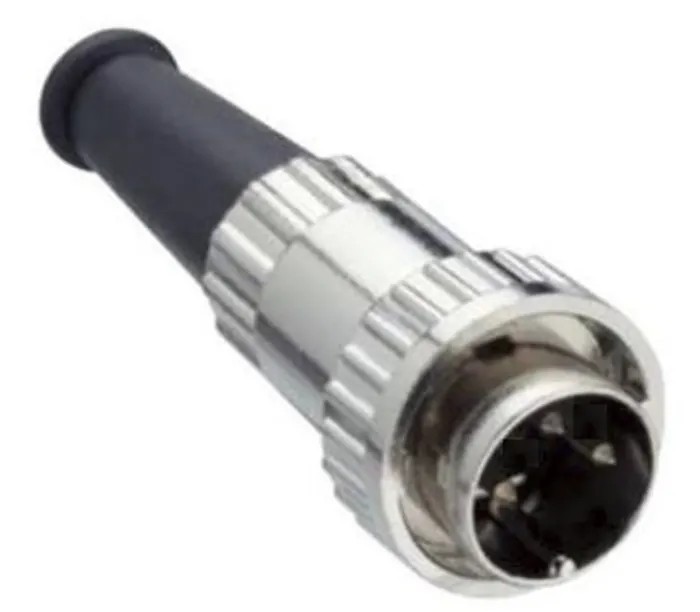

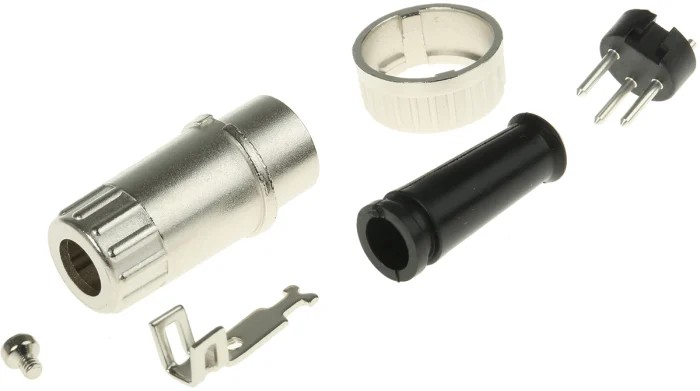

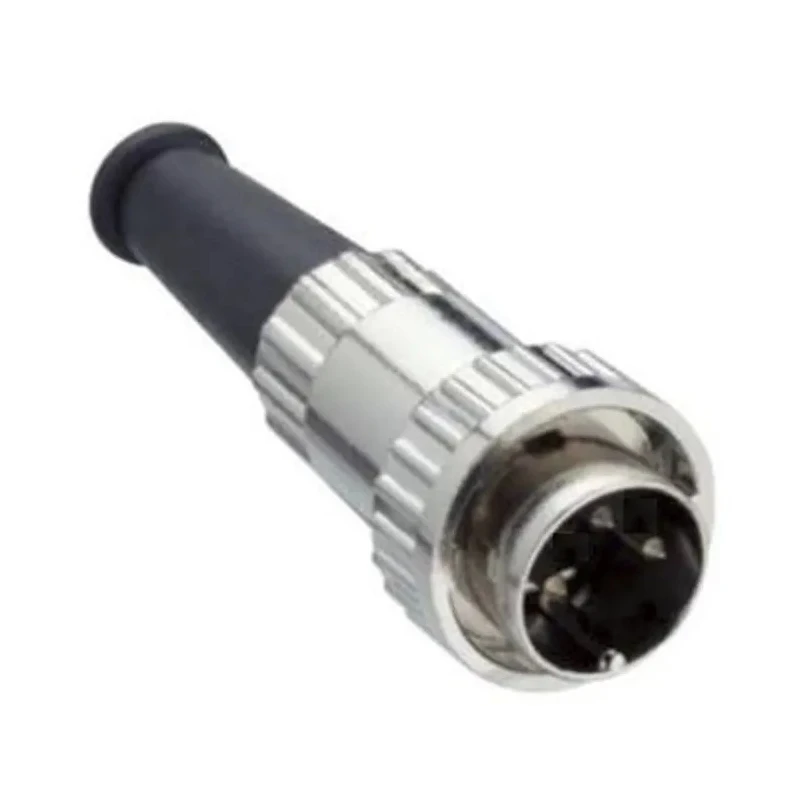

RS PRO 3 Pole Straight Standard DIN Plug 1A 100V AC Bayonet Cable Male 491-005
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 100V ac |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 1A |
| Model | 491-005 |
| Mount Type | Cable |
| Housing Material | ABS |
| Contact Material | Brass |
| Series | RS PRO |
| Maximum Operating Temperature | 70°C |
| Insulation resistance | 100MΩ at 500V DC min |
| Minimum Operating Temperature | -25°C |
| Voltage Withstand | 250V AC for 1 minute |
| Shield Type | Shielded |
| Contact Resistance | Pins 30mΩ max. Shell 50mΩ max |
| Pole Format | 3 |
| Contact Plating | Silver |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Connector Gender | Male |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Shield cover and Bayonet cap | Zinc Alloy Nickel Plated |
| Set screw and 'T' holder | Steel Nickel Plated |
| 592 3 Pole Din, 2A, 34 V ac/dc, Bayonet, Male, Cable MountBrand | NEUTRAL |
Key Features
- This DIN plug features a bayonet locking system for secure and quick connection.
- It has three contacts and a standard connector size suitable for various electronic applications.
- The housing is made from durable ABS while the contacts are brass with silver plating for reliable conductivity.
- Operating temperature ranges from -25°C to 70°C supporting demanding environments.
- Designed with a cable mount type including cable grip and strain relief for secure installation.
- Contact resistance is minimal with pins max 30mΩ and shell max 50mΩ for signal integrity.
- Insulation resistance measures 100MΩ at 500V DC minimum providing excellent electrical isolation.
- Ideal for industrial, electronic, and audio/video equipment requiring robust circular connectors.
Product Description
The RS PRO 491-005 3 Pole Straight Standard DIN Plug is a high-quality, cable-mounted male DIN connector designed for reliable electrical and signal connections in diverse industrial and electronic applications. Featuring a bayonet locking mechanism, this plug ensures quick and secure mating with corresponding chassis mounted sockets, making installation and maintenance efficient and safe.
The plug offers three silver-plated brass contacts housed in durable ABS material, combining robustness with excellent electrical performance. Its shielded design includes a zinc alloy nickel-plated shield cover and bayonet cap to protect against electromagnetic interference, enhancing signal integrity in challenging environments.
Operating over a temperature range from -25°C to 70°C, this connector withstands demanding conditions while maintaining optimal performance. The inclusion of set screws and T holders made of steel nickel-plated components further contribute to mechanical stability and longevity of the connection.
The contact resistance is limited to 30 milliohms maximum for pins and 50 milliohms maximum for the shell, while insulation resistance is rated at a minimum of 100 megaohms at 500 volts DC. The plug is certified for a voltage withstand test of 250 volts AC for one minute, ensuring safety and reliability in operation.
Typical uses for this DIN Plug include connections in personal computers, audio and video systems, power and serial data transmission, and various manufacturing and industrial equipment requiring a compact, shielded circular connector solution.
This DIN cable plug incorporates metal shielding with bayonet locking for secure connections. Shield cover and bayonet cap are zinc alloy with nickel plating for corrosion resistance. Set screw and T holder constructions use nickel-plated steel for durable fittings.
Contacts are brass with silver plating to guarantee excellent conductivity and low resistance. Designed for cable mounting with built-in cable grip and strain relief for strain protection. Operates reliably from -25°C up to 70°C ambient temperature scenarios.
Meets electrical standards with contact resistance max 30mΩ and insulation resistance min 100MΩ. Rated voltage withstand is 250V AC for one minute ensuring safety margins. Manufactured in Taiwan under RS PRO quality controlled production systems.
Suitable for industrial, electronic, audio, video, and data communication equipment.
Explore our extensive range of DIN connectors including different pin counts and mounting types to match your specific connectivity requirements. RS PRO products provide exceptional value, quality, and dependable performance trusted by engineers worldwide. Browse the Electronics Components category on EnvMart for more solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 70°C.
This DIN plug features a bayonet locking mechanism for secure and quick connections.
The insulation resistance measures a minimum of 100MΩ at 500V DC.
The contacts are made of brass and are silver plated to ensure reliable conductivity.
The rated voltage withstand for this connector is 250V AC for one minute.
The maximum contact resistance is 30 milliohms for the pins and 50 milliohms for the shell.
The minimum operating temperature is -25°C.
The housing is made from durable ABS material.
This DIN plug has three contacts.
It is suitable for industrial, electronic, audio, video, and data communication equipment.
This model uses a cable mount type with built-in cable grip and strain relief.
This DIN plug is manufactured in Taiwan.
