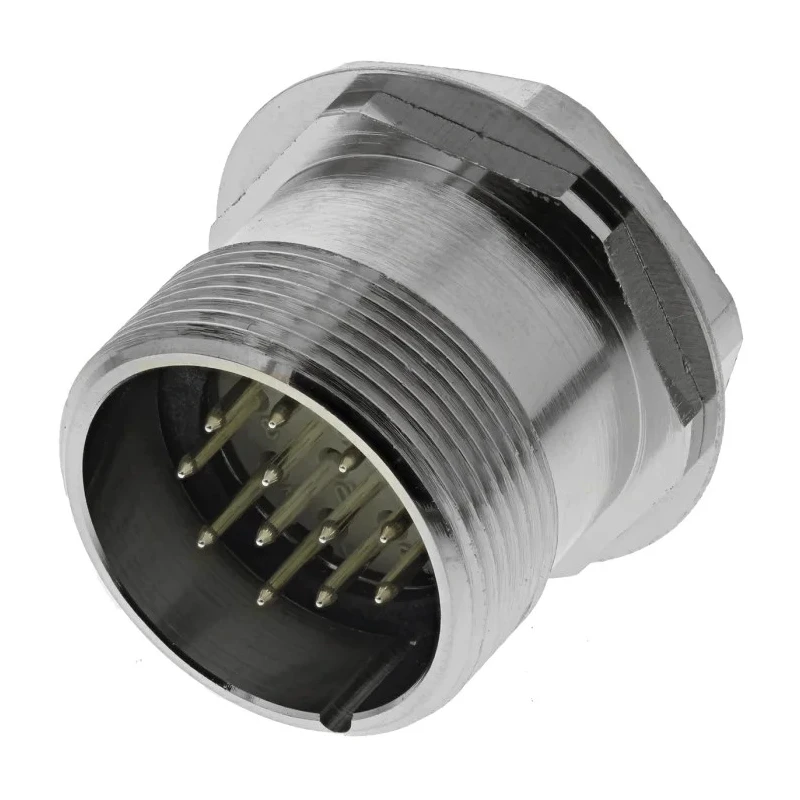

Lapp R Series 12-Pole Straight DIN Plug, Through Hole Male, 7.5A, 1.5kV, IP65, Copper Alloy, 50106202+00009159
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 1.5kV |
| Brand | Lapp |
| Orientation | Straight |
| Current | 7.5A |
| Model | 50106202+00009159 |
| IP Rating | IP65 |
| Mount Type | Through Hole |
| Housing Material | Copper |
| Contact Material | Copper Alloy |
| Series | R |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 12 |
| Contact Plating | Silver |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Size | Standard |
Key Features
- Robust copper alloy housing ensures long-term durability and resistance to corrosion.
- Rated for 7.5A current and 1.5kV voltage, suitable for demanding industrial uses.
- IP65 protection provides reliable dust and water ingress resistance.
- Through hole mounting and straight orientation simplify installation in electrical assemblies.
- Male gender with crimp termination for efficient and secure wire connections.
- Operates reliably within -40°C to +125°C, ideal for harsh environments.
- Screw locking mechanism prevents accidental disconnects and ensures safe operation.
- 12-pole configuration offers versatile multi-circuit connectivity.
Product Description
Lapp 50106202+00009159 12-Pole Straight Standard DIN Plug is engineered for robust industrial and automation connectivity requirements. This plug features a durable copper alloy housing and is rated for 7.5A current and 1.5kV voltage, making it ideal for transmitting power and data in challenging environments.
The IP65 rating guarantees protection against dust and water, fitting seamlessly into electrical assemblies exposed to environmental extremes. The male connector's straight orientation and through hole mount facilitate easy integration into panels, machinery, and control units. Crimp termination enables fast and secure cable attachment, while the silver-plated contacts enhance electrical conductivity and performance.
Robust copper alloy construction offers corrosion resistance and superior mechanical strength. Supports secure multi-pole electrical connections - ideal for industrial machinery, automation systems, and electrical assemblies.
Wide operating temperature range (-40°C to +125°C) ensures functionality in demanding settings. Screw lock mechanism provides secure connection to prevent unplugging during operation. Male gender and straight orientation provide straightforward panel integration.
IP65 enclosure is suited for wet or dusty environments, including manufacturing, process control, and outdoor equipment. 12-pole design provides flexible power and signal routing. Crimp contact termination delivers reliable retention and electrical performance.
This connector is widely used in industrial machinery, robotics, and automation installations, as well as HVAC and manufacturing operations needing high voltage and current transmission in compact form factors. It is especially suited for environments requiring temperature resilience, vibration endurance, and ingress protection.
Typical applications include secure connection in automation cabinets, industrial control systems, machinery, and electrical assemblies needing multi-pole support.
For reliable connections in harsh commercial, manufacturing, and laboratory environments, or whenever dust/water protection and high-voltage capacity are required, choose Lapp DIN Plugs.
Explore more industrial connectors and Lapp components for your requirements in Electronics & Electricals at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a current of 7.5A.
The plug is rated for a voltage of 1.5kV.
It has an IP65 rating, providing protection against dust and water ingress.
This model features a through hole mounting type, facilitating easy installation.
The housing is made of copper alloy, and the contacts are silver-plated for enhanced conductivity.
It operates reliably within a temperature range of -40°C to +125°C.
It uses crimp termination for secure and efficient wire connections.
The connector features a male gender configuration.
The Lapp R Series 12-Pole Straight DIN Plug is manufactured in Germany.
It has a straight orientation, which simplifies panel integration.
It is suitable for industrial machinery, automation systems, and electrical assemblies requiring multi-pole support.
