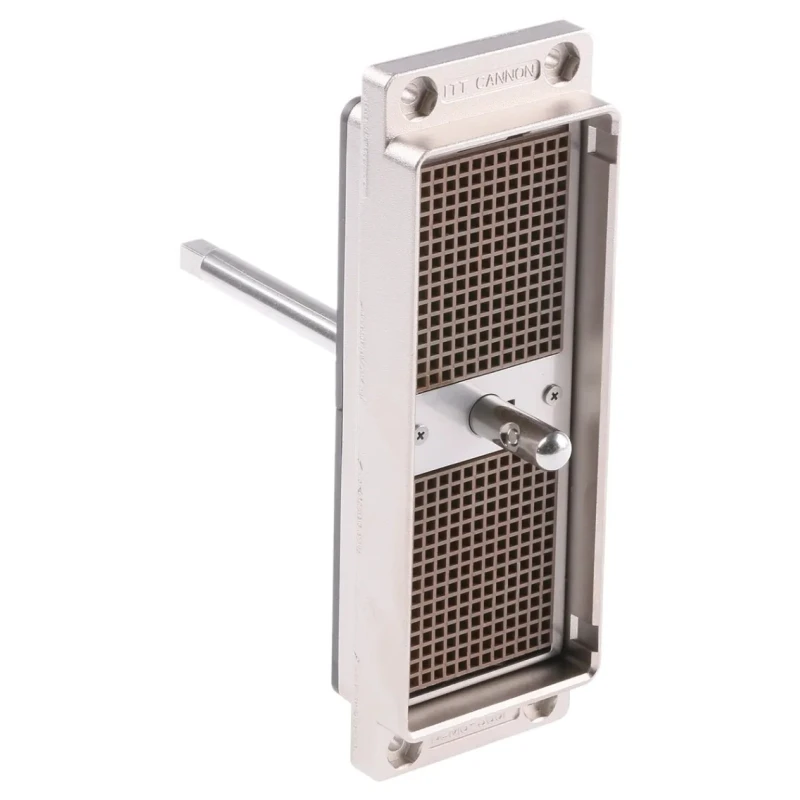

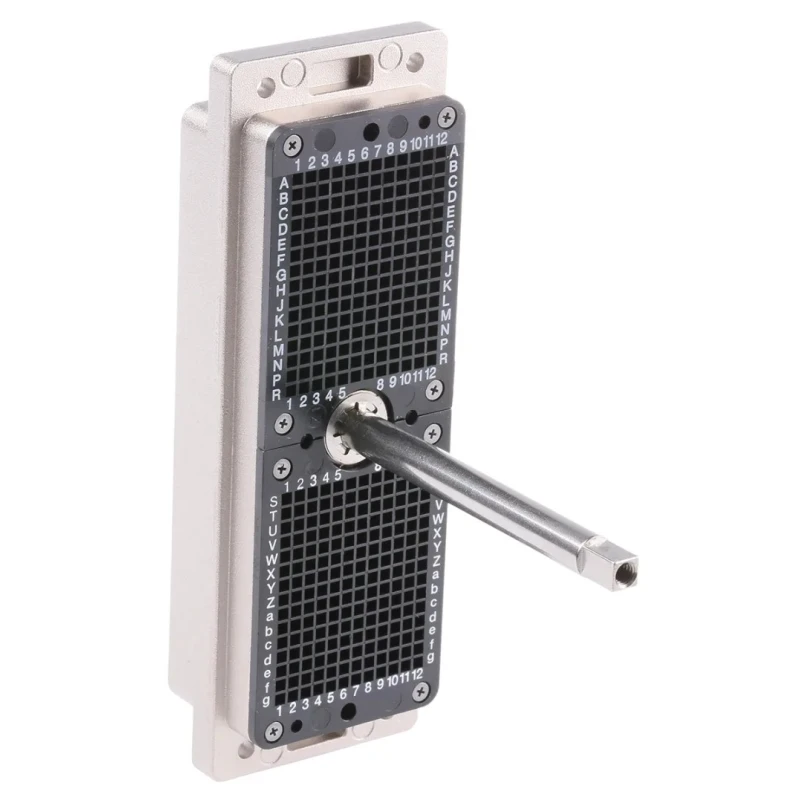

ITT Cannon DLM 2.54 mm Pitch ZIF Plug Body Straight Male 360 Way 1.2kV AC 5A 127050-0034
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1.2kV ac |
| Brand | ITT Cannon |
| Orientation | Straight |
| Current | 5A |
| Mount Type | Panel |
| Housing Material | Aluminium Alloy |
| Contact Material | Beryllium Copper Alloy |
| Series | DLM |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 360 |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Contact Gender | Male |
| Connector Gender | Male |
| Backplane Connector Type | ZIF |
Key Features
- Features a zero insertion force (ZIF) plug body for easy mating and unmating.
- Constructed with an aluminium alloy housing for enhanced durability and EMI/RFI shielding.
- Contains 360 gold-plated beryllium copper alloy contacts for optimal conductivity and corrosion resistance.
- Panel mount type with crimp termination ensuring secure and stable installation.
- Operates reliably within a wide temperature range from -55°C up to 105°C.
- Cam actuated coupling provides uniform mating pressure, ideal for instrumentation and broadcast applications.
- Designed for use in high-performance environments including medical, avionics, and computer broadcast sectors.
- Complies with ANSI/ESD S20.20 (2014) and BS EN 61340-5-1 (2007) standards for electrostatic discharge protection.
Product Description
ITT Cannon 127050-0034 DLM 2.54 mm Pitch ZIF Plug Body Straight Male 360 Way is a high-quality backplane connector engineered for demanding industrial and electronic applications. This plug body features a zero insertion force design that minimizes connector wear and ensures reliable mating over multiple cycles.
The connector employs an aluminium alloy shell which not only provides mechanical robustness but also offers effective EMI/RFI shielding through its shield locking mechanism, delivering uniform mating pressure around the connector perimeter. The 360 contacts are fabricated from beryllium copper alloy with gold plating, offering excellent electrical conductivity and resistance to corrosion.
Rated for 5A current and 1.2kV AC voltage, this connector is suitable for a variety of applications including instrumentation equipment used in medical devices, computers, broadcast systems, and avionics industries. Its operating temperature range spans from -55°C to 105°C, accommodating harsh environmental conditions.
The panel mount configuration with crimp termination ensures secure installation and reliable electrical connections. The cam actuated zero insertion force coupling mechanism simplifies assembly while maintaining high-performance standards.
Zero insertion force plug body reduces wear during mating cycles. Aluminium alloy housing enhances durability and provides EMI/RFI shielding. Gold-plated beryllium copper contacts ensure superior conductivity and corrosion resistance.
Panel mount type with crimp termination for secure connections. Wide operating temperature range from -55°C to 105°C supports harsh environments. Cam actuated coupling mechanism for uniform mating pressure. Applications in medical instrumentation, avionics, broadcast, and computer industries.
Meets ANSI/ESD S20.20 (2014) and BS EN 61340-5-1 (2007) standards.
This ITT Cannon backplane connector offers robust performance and compliance with electrostatic discharge protection standards, making it a reliable choice for critical electronic equipment interconnections. Explore comprehensive ITT Cannon connector solutions and accessories through EnvMart to meet your industrial connectivity requirements.
Explore more products in our DIN Plug category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector is rated for 1.2kV AC voltage.
It has a current rating of 5A.
The housing is made from aluminium alloy, and the contacts are made from beryllium copper alloy with gold plating.
It operates reliably within a temperature range from -55°C to 105°C.
This connector features 360 contacts.
It uses crimp termination for secure installation.
Yes, it complies with ANSI/ESD S20.20 (2014) and BS EN 61340-5-1 (2007) standards for electrostatic discharge protection.
The connector has a straight orientation.
This is a zero insertion force (ZIF) backplane connector.
It is designed for use in high-performance environments including medical, avionics, and computer broadcast sectors.
The cam actuated coupling provides uniform mating pressure, which is ideal for instrumentation and broadcast applications.
The country of origin for this connector is India.
