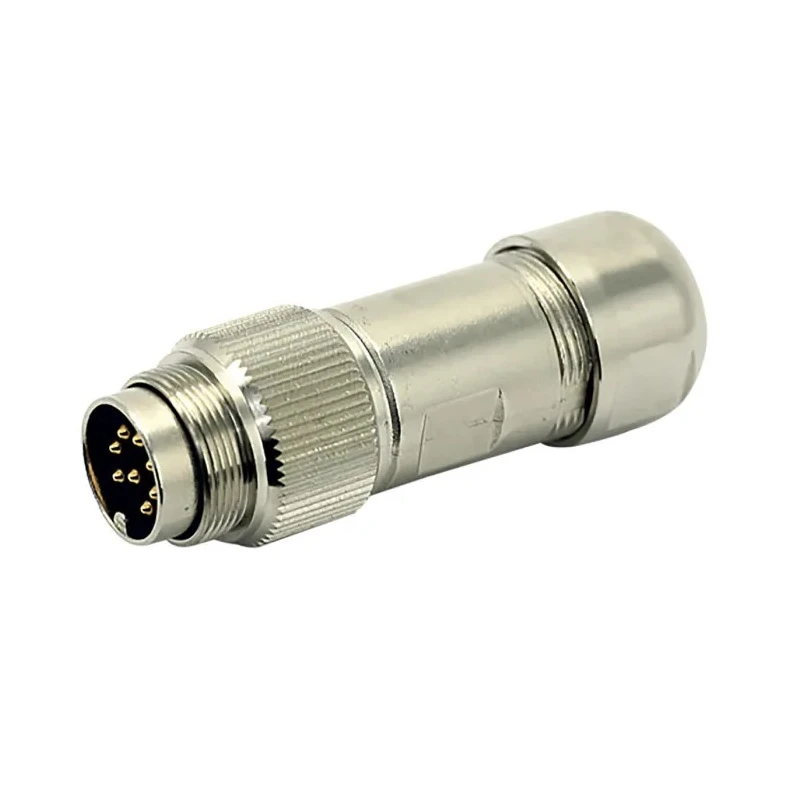

Amphenol Industrial C 091 D 7 Pole Straight M16 DIN Plug Screw Coupling Cable 7A 100V IP68 C091 31H007 102 4 U
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 100V |
| Brand | Amphenol Industrial |
| Orientation | Straight |
| Current | 7A |
| Model | C091 31H007 102 4 U |
| IP Rating | IP68 |
| Mount Type | Cable |
| Housing Material | Die Cast Zinc |
| Series | C 091 D |
| Termination Type | Solder |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -40°C |
| Shield Type | Shielded |
| Pole Format | 7 |
| Contact Plating | Silver |
| Number of Contacts | 7 |
| Contact Gender | Male |
| Connector Gender | Female |
| Mating Type | Screw Coupling |
| Connector Size | M16 |
| DIN Number | DIN EN 61076-2-106 |
Key Features
- Robust circular DIN connector with 7 poles for reliable connections.
- Features screw coupling mounting type for secure attachment.
- Die cast zinc housing provides durability and mechanical protection.
- Silver-plated male contacts ensure low resistance and corrosion resistance.
- Rated IP68 for protection against dust and water ingress.
- Supports operating temperature from -40°C to 100°C.
- Meets DIN EN 61076-2-106 standard with cable mount configuration.
- Shielded design enhances electromagnetic interference protection.
Product Description
Amphenol Industrial C091 31H007 102 4 U is a 7 pole straight M16 DIN Plug designed for cable mounting applications, featuring a screw coupling mechanism for secure mating. Rated for 7A current and 100V voltage, this connector complies with DIN EN 61076-2-106 standard, ensuring high reliability and performance in demanding environments.
The connector housing is die cast zinc, offering excellent mechanical protection and durability. The silver-plated male contacts provide superior conductivity and resistance to corrosion. The connector is fully shielded to protect against electromagnetic interference, making it suitable for use in industrial, medical, robotic, and energy generation systems.
With an IP68 rating, this plug provides robust protection against dust and water ingress, suitable for harsh environmental conditions. It operates reliably within a temperature range of -40°C to 100°C. The internal strain relief further enhances durability and reduces assembly time.
This product is compatible with the C 091 D+ series connectors and is ideal for medical instruments, robotic interfaces, computer systems, CCTV, and other industrial applications. It offers a metal locking ring with thread coupling according to IEC 60130-9 standards.
Robust 7-pole circular DIN connector. Screw locking mechanism ensures a secure connection. Die cast zinc housing with silver contact plating. Rated IP68 for dust and water protection. Wide temperature operating range from -40°C to 100°C.
Shielded design for EMI protection. Cable mount and male contact gender. Complies with DIN EN 61076-2-106. Suitable for industrial, medical, robotic, and energy applications. Manufactured in China. Explore more industrial and electronic connectors like this in EnvMart's comprehensive catalog for reliable industrial component sourcing and project implementation.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 7A and a voltage of 100V.
It has an IP68 rating, providing protection against dust and water ingress.
The housing is made of die cast zinc, and the male contacts are silver-plated for enhanced conductivity and corrosion resistance.
It operates reliably within a temperature range of -40°C to 100°C.
This connector complies with the DIN EN 61076-2-106 standard.
It features a cable mount configuration with a screw coupling mechanism for secure attachment.
This model has 7 poles.
Yes, it features a shielded design to protect against electromagnetic interference.
The connector has male contacts and a female connector gender.
It is suitable for industrial, medical, robotic, and energy generation applications.
The termination type for this model is solder.
The connector size is M16.
