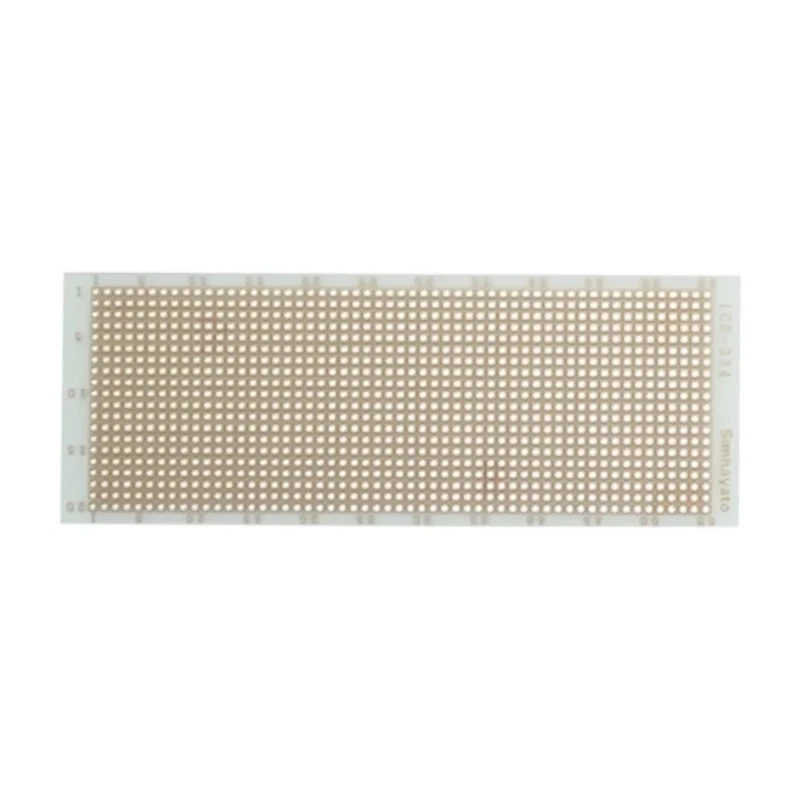

Sunhayato 2 Extender Board Universal Board 45mm x 120mm Epoxy Glass Fabric Laminate FR4 ICB-034

Free Delivery in India | Lowest Global Shipping Charges

Sunhayato 2 Extender Board Universal Board 45mm x 120mm Epoxy Glass Fabric Laminate FR4 ICB-034

Name: Sunhayato 2 Extender Board Universal Board 45mm x 120mm Epoxy Glass Fabric Laminate FR4 ICB-034
Brand: Sunhayato
SKU: 191982
Price: 25.83 USD
Availability: InStock



Category Extender Board Brand Sunhayato Condition New

Specifications

Country of Origin	Japan
Brand	Sunhayato
Length	45mm
Model	ICB-034
Width	120mm
Sub Type	Universal Board
Board Material	Epoxy Glass Fabric Laminate
Number of Sides	2
Board Thickness	1.2mm
FR Material Grade	FR4

Key Features

This universal board supports 2.0 and 2.5 mm pitch components effectively.
The board is fabricated from durable epoxy glass fabric laminate, ensuring longevity and reliability in applications.
It has a dual-sided layout, enhancing versatility in circuit design and testing.
Board thickness is precisely 1.2 mm, to accommodate various electronic component mounting techniques.
Rounded corners facilitate easy soldering even with narrow pitch components.
Manufactured in Japan, guaranteeing high manufacturing standards.
The board is ideal for electronic component prototyping, circuit expansions, and special-pitch part assembly.

Product Description

Sunhayato ICB-034 2 Extender Board Universal Board is constructed using high-quality epoxy glass fabric laminate material with FR4 grade, offering exceptional durability and electrical insulation. The board measures 45 mm in length and 120 mm in width with a thickness of 1.2 mm and has a dual-sided layout for increased circuit connectivity options.

This special-pitch universal board supports 2.0 and 2.5 mm pitch components effectively, making it suitable for prototypes and component testing involving narrow pitch parts. Its rounded corners are designed to facilitate easy and precise soldering even at narrow pitches, providing enhanced usability during assembly.

Manufactured in Japan, this board adheres to strict quality standards and delivers consistent performance for various electronic prototyping and development tasks. It is well-adapted for use in laboratories, electronics manufacturing, R&D departments, and educational institutes specializing in electronics engineering.

The board is also compatible with single-digit 7-segment blue LED displays from Broadcom (Avago Technologies), expanding its application range. The universal design allows flexible usage for diverse experimental circuits and assembly requirements.

Supports 2.0 / 2.5 mm pitch components efficiently. Durable epoxy glass fabric laminate with FR4 grade. Dual-sided board for enhanced circuit prototyping. Precise 1.2 mm board thickness for reliable assembly. Rounded corners enable easy soldering at narrow pitch.

Manufactured in Japan with high quality standards. Ideal for electronic prototyping, testing, and development environments.

This extender board provides a reliable and versatile platform for electronic component interfacing and prototyping projects. It is available at EnvMart within the Electronics Components category, specifically under Extender Boards, facilitating professional buyers in procurement for industrial and laboratory applications.
