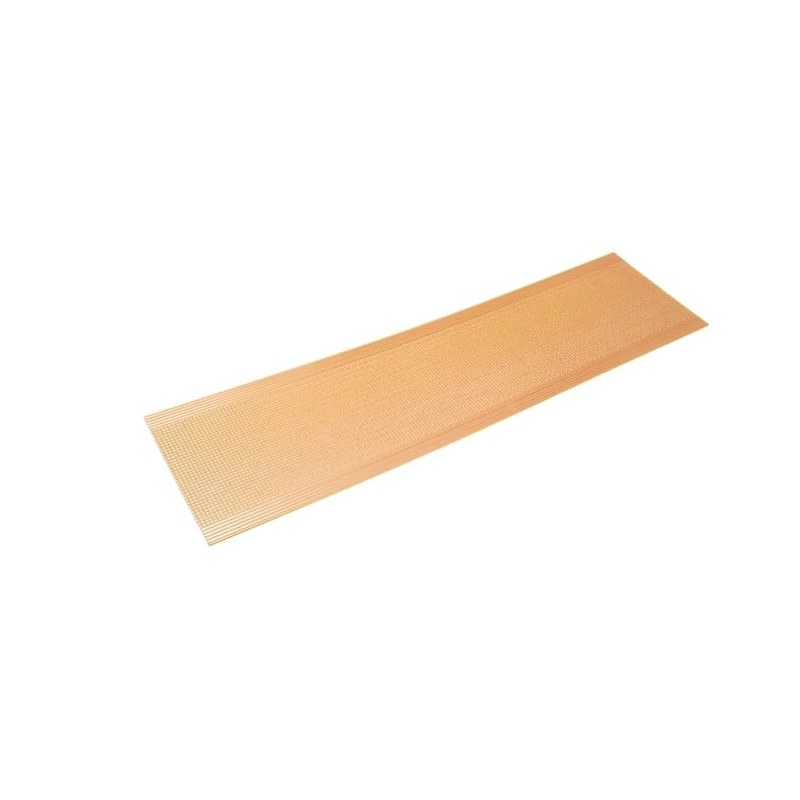

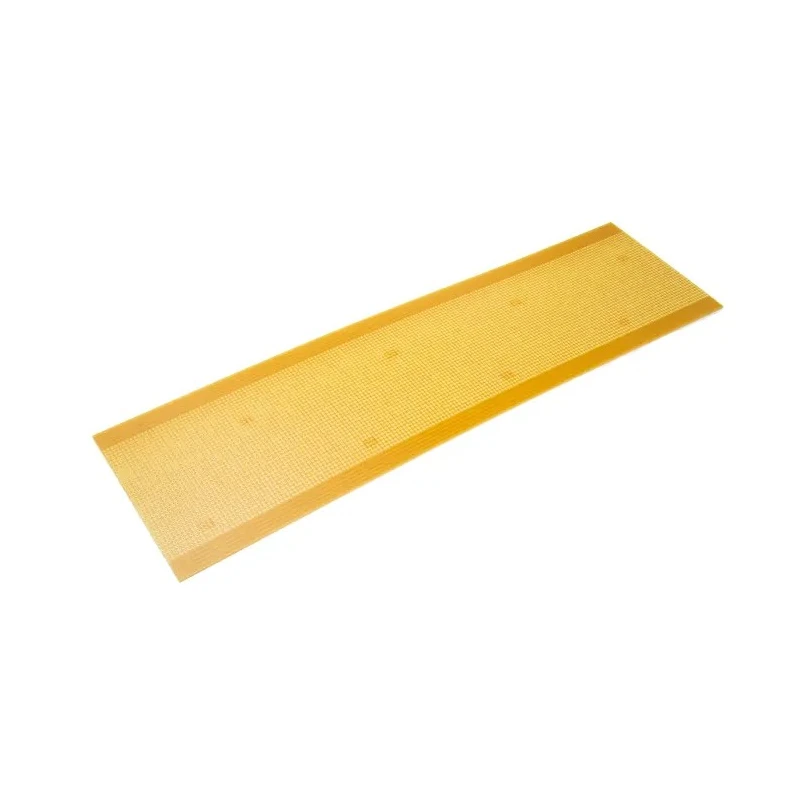

RS PRO Single-Sided Stripboard 454.66 mm x 119.38 mm x 1.6 mm FR1 Material 195-1094
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | RS PRO |
| Length | 454.66mm |
| Model | 195-1094 |
| Width | 119.38mm |
| Hole Diameter | 1.02mm |
| Number of Sides | 1 |
| Board Thickness | 1.6mm |
| FR Material Grade | FR1 |
| Hole Layout | 36 x 179 |
Key Features
- Constructed using synthetic resin bonded paper (FR1) material for durability.
- Single-sided board layout with copper strips for circuit assembly.
- Hole diameter is 1.02 mm with a hole layout of 36 x 179 holes, and a pitch of 2.54 x 2.54 mm.
- Designed to securely mount discrete components and integrated circuits during prototyping.
- Complies with RoHS standards ensuring low hazardous substance content.
- Suitable for applications requiring connection of multiple buses or common signals.
- Electrostatic discharge (ESD) tested to British and international standards to reduce damage risk.
- Manufactured in the United Kingdom ensuring high quality and reliability.
Product Description
RS PRO 195-1094 single-sided stripboard is precision-engineered for electronic prototyping and testing applications, measuring 454.66 mm in length, 119.38 mm in width, and 1.6 mm in thickness. It features an FR1 grade synthetic resin bonded paper base material that provides excellent electrical insulation and mechanical stability.
The stripboard layout includes 36 by 179 holes, each with a diameter of 1.02 mm spaced at 2.54 mm pitch, designed for easy placement and soldering of components such as resistors, capacitors, and integrated circuits. This product is ideal for use in devices like amplifiers and other high current electronics where secure and reliable component connections are essential.
It is single-sided, which means copper strips are only on one side of the board, allowing for simple wiring between the strips by cutting or drilling to isolate tracks as needed. This design facilitates quick and effective development of circuit boards during product design and testing phases.
This stripboard complies with Restriction of Hazardous Substances (RoHS) directives, ensuring environmental safety and user health standards by using minimal harmful materials. Its electrostatic discharge (ESD) resistance is tested to British Standard BS EN 61340-5-1:2007 and ANSI/ESD S20.20:2014 norms, making it suitable for ESD-sensitive environments.
Manufactured in the United Kingdom, this RS PRO Stripboard promises quality and consistency for industrial, laboratory, educational, and hobbyist electronic projects. Constructed using synthetic resin bonded paper (FR1) material for durability.
Single-sided board layout with copper strips for circuit assembly. Hole diameter is 1.02 mm with a hole layout of 36 x 179 holes, and a pitch of 2.54 x 2.54 mm. Designed to securely mount discrete components and integrated circuits during prototyping.
Complies with RoHS standards ensuring low hazardous substance content. Suitable for applications requiring connection of multiple buses or common signals. Electrostatic discharge (ESD) tested to British and international standards to reduce damage risk.
Manufactured in the United Kingdom ensuring high quality and reliability. Explore our comprehensive RS PRO electronics components range on EnvMart for all your prototyping needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The stripboard measures 454.66 mm in length, 119.38 mm in width, and has a thickness of 1.6 mm.
It features a hole layout of 36 x 179 holes, with each hole having a diameter of 1.02 mm.
This stripboard is constructed from FR1 grade synthetic resin bonded paper, providing excellent electrical insulation and mechanical stability.
This model is single-sided, meaning that copper strips are present only on one side of the board.
The pitch between the holes is 2.54 mm x 2.54 mm.
Yes, it complies with RoHS standards, ensuring low hazardous substance content.
It is designed to securely mount discrete components and integrated circuits during prototyping.
It is electrostatic discharge (ESD) tested to British Standard BS EN 61340-5-1:2007 and ANSI/ESD S20.20:2014 norms.
This product is manufactured in the United Kingdom, ensuring quality and reliability.
It is suitable for applications requiring the connection of multiple buses or common signals, particularly in electronic prototyping and testing.
FR1 material grade provides durability and is specifically designed for electronic applications, ensuring good performance under various conditions.
The copper strips facilitate circuit assembly by allowing for simple wiring connections between components.
