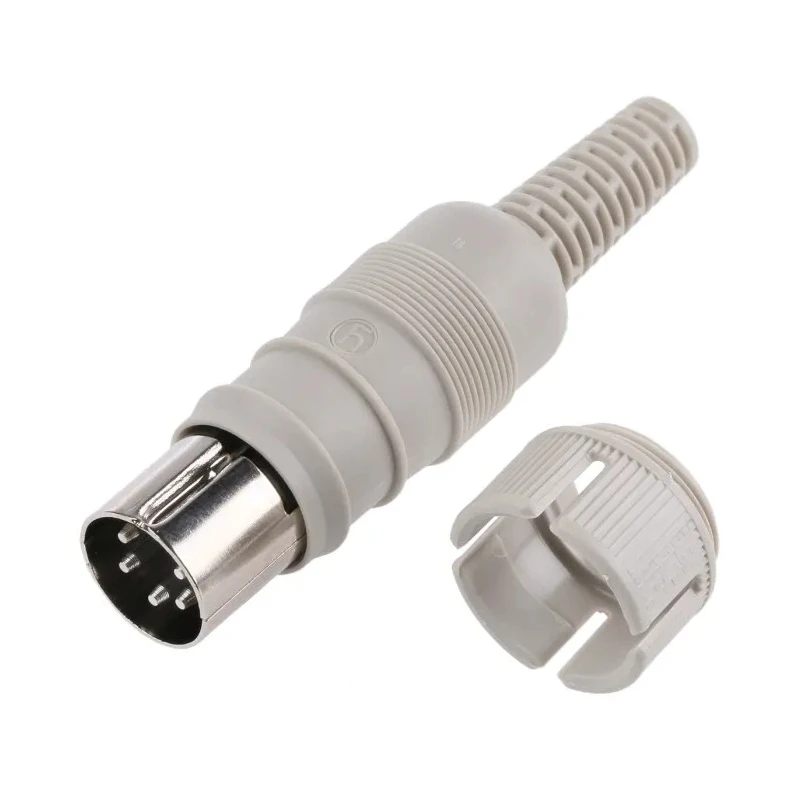

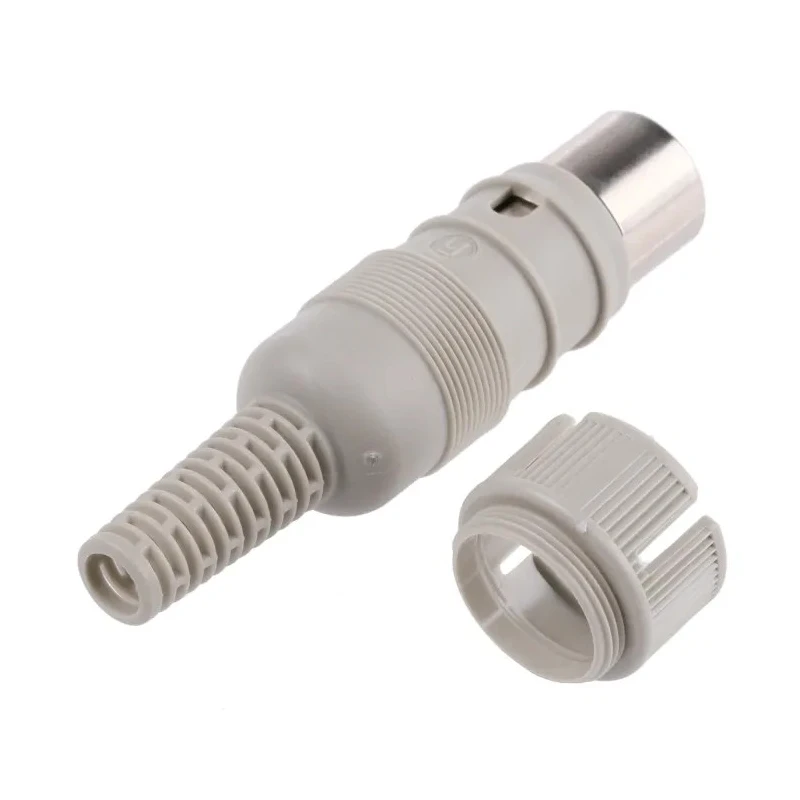

Hirschmann MAS Series DIN Plug 5-Pole Straight, M16, 4A, 34V AC/DC, IP30, Cable Male 930964517 MAS 5100
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Voltage | 34, 34V ac |
| Brand | Hirschmann |
| Orientation | Straight |
| Current | 4A |
| Model | 930964517 MAS 5100 |
| IP Rating | IP30 |
| Mount Type | Cable |
| Housing Material | Polyethylene |
| Contact Material | Brass |
| Series | MAS |
| Termination Type | Solder |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Shield Type | Shielded |
| Pole Format | 5 |
| Contact Plating | Tin |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Size | M16 |
| DIN Number | DIN EN 60 130 09 |
| Maximum Conductor Size | 0.34mm² |
Key Features
- Reliable DIN plug with 5-pole straight configuration for secure cable connections.
- Rated for 4A current and supports up to 34V AC/DC voltage.
- M16 connector size offers compatibility with industrial systems.
- Shielded design and IP30 rating for protection against solid objects larger than 2.5mm.
- Screw lock and solder termination ensure robust installation and vibration resistance.
- Polyethylene housing provides impact protection durable for industrial settings.
- Supports operating temperatures from -20°C to +60°C for demanding environments.
- Tin-plated brass contacts maximize reliable conductivity.
Product Description
The Hirschmann MAS Series DIN Plug, model 930964517 MAS 5100, is a high-quality straight M16 circular connector designed for industrial and electronic applications requiring reliable 5-pole cable connections. Its robust polyethylene housing ensures impact protection and long-term durability, making it suitable for harsh environments.
This DIN plug is rated for 4A current and supports voltages up to 34V AC and 34V DC, providing essential compatibility for legacy computers, MIDI instruments, and analogue audio systems across commercial and manufacturing sectors. The shielded connector with male gender and straight orientation supports easy mating and secure connections.
The IP30 protection rating indicates resistance against solid objects larger than 2.5mm, making it appropriate for use in controlled environments where dust and debris exposure is limited. Tin-plated brass contacts deliver excellent electrical performance and efficient signal transfer. The solder termination type allows direct and firm installation onto cables with a maximum conductor size of 0.34mm² and cable diameter of 5.5mm.
Featuring a screw lock mechanism, the plug provides enhanced retention and vibration protection, preventing accidental disconnection during operation. Operating temperatures from -20°C to +60°C ensure reliability under temperature fluctuations typical in industrial, laboratory, and music industry setups.
Reliable DIN Plug with 5-pole straight configuration for secure cable connections. Rated for 4A current and supports up to 34V AC/DC voltage. M16 connector size offers compatibility with industrial systems. Shielded design and IP30 rating for protection against solid objects larger than 2.5mm.
Screw lock and solder termination ensure robust installation and vibration resistance. Polyethylene housing provides impact protection durable for industrial settings. Supports operating temperatures from -20°C to +60°C for demanding environments.
Tin-plated brass contacts maximize reliable conductivity.
Typical use cases include legacy computer peripherals, MIDI instruments, analogue audio systems, and applications in the music industry, manufacturing environments, and laboratory setups. Browse other Hirschmann MAS Series connectors and circular connectors in the EnvMart catalogue for tailored industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports voltages up to 34V AC and 34V DC.
The DIN plug has an IP30 rating, indicating protection against solid objects larger than 2.5mm.
The maximum operating temperature is 60°C.
It uses a solder termination type for cable connections.
The housing is made of polyethylene, and the contacts are made of brass with tin plating.
This DIN plug features an M16 connector size.
The minimum operating temperature is -20°C.
It has a 5-pole configuration.
The connector is male gendered.
It features a shielded design for enhanced protection.
