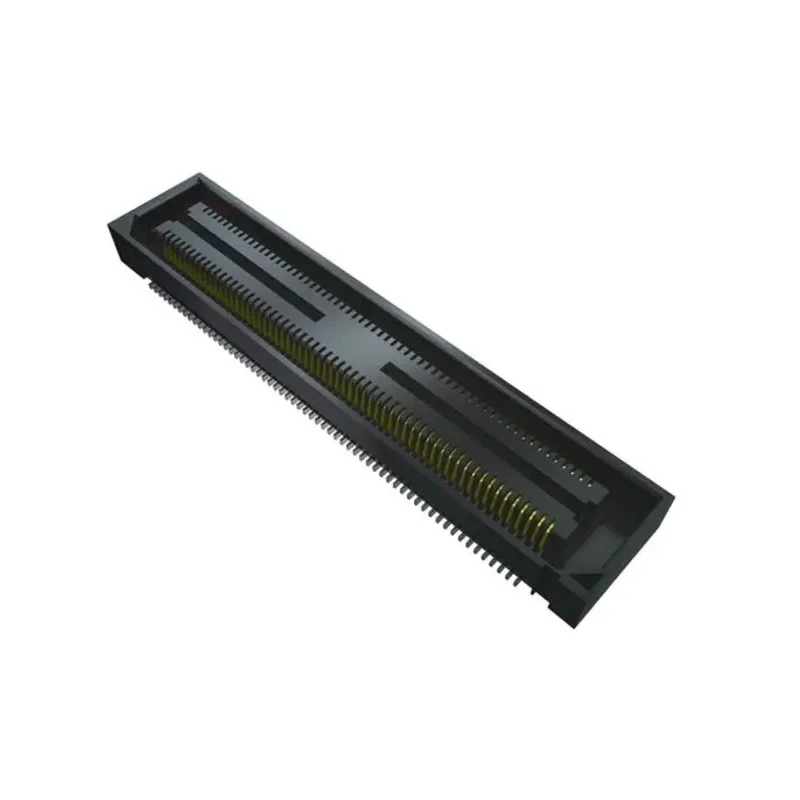

Samtec BSH Series Straight Surface Socket Strip 60-Contact, 2 Row, 0.5 mm Pitch Solder BSH-030-01-H-D-A-TR

Samtec BSH-030-01-H-D-A-TR is a high-performance straight surface socket strip designed for board-to-board electronic connections. This 60-contact, 2-row socket strip features a 0.5 mm pitch that allows for dense and reliable PCB mounting, making it ideal for compact and advanced electronic devices.

The socket's contacts are made from phosphor bronze, providing excellent electrical conductivity and mechanical strength. These contacts are plated with gold to ensure optimal corrosion resistance and extended operational life, enhancing the reliability of electrical connections in industrial and commercial environments.

Its housing is crafted from liquid crystal polymer (LCP), a material known for its excellent heat resistance and mechanical stability, capable of withstanding operating temperatures ranging from -55°C to 125°C. This makes the socket strip suitable for a wide range of applications, including industrial electronics, telecommunications, and consumer electronics where temperature resilience is required.

Designed for surface mounting, the strip has a row pitch of 5.73 mm and a stack height of 5.0 mm, facilitating integration into multilayer PCB assemblies. The straight orientation and solder termination type ensure secure and robust connections. With a current rating of 2 amperes and voltage rating of 175 volts, it accommodates diverse power requirements safely.

The product is part of Samtec’s BSH series, renowned for its extended life and precision. The socket strip is supplied in a tape and reel packaging format to streamline automated assembly and minimize handling damage.

This socket strip offers reliable board-to-board connectivity with 60 contacts in two rows. 0.5 mm pitch allows for dense component placement on PCBs. Gold-plated phosphor bronze contacts ensure durability and superior conductivity.

Liquid crystal polymer housing provides excellent thermal stability and mechanical strength. Operating temperature range from -55°C to 125°C suits harsh environments. Supports current of 2A and voltage up to 175V, fitting various electronic applications.

Surface mount design with Solder termination facilitates integration and assembly. Packaging in tape and reel format supports mass production efficiency.

This socket strip is suitable for electronic manufacturing, industrial equipment, communications, and other electronics sectors where precise and reliable connector solutions are essential. Explore further options in PCB sockets and connectors at EnvMart for comprehensive solutions to your electronic assembly needs.
