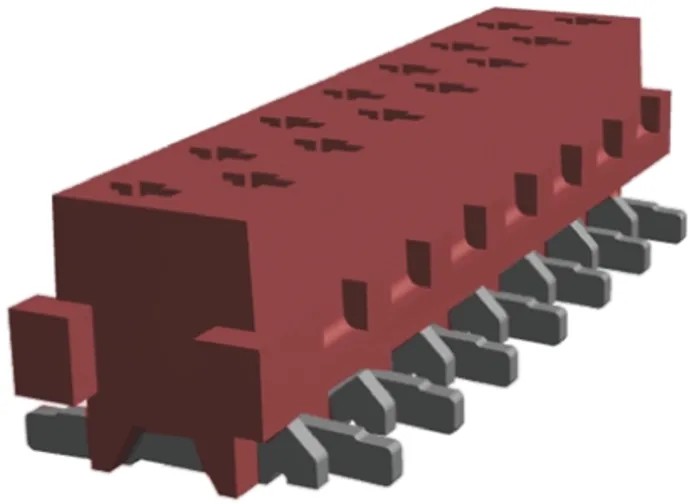

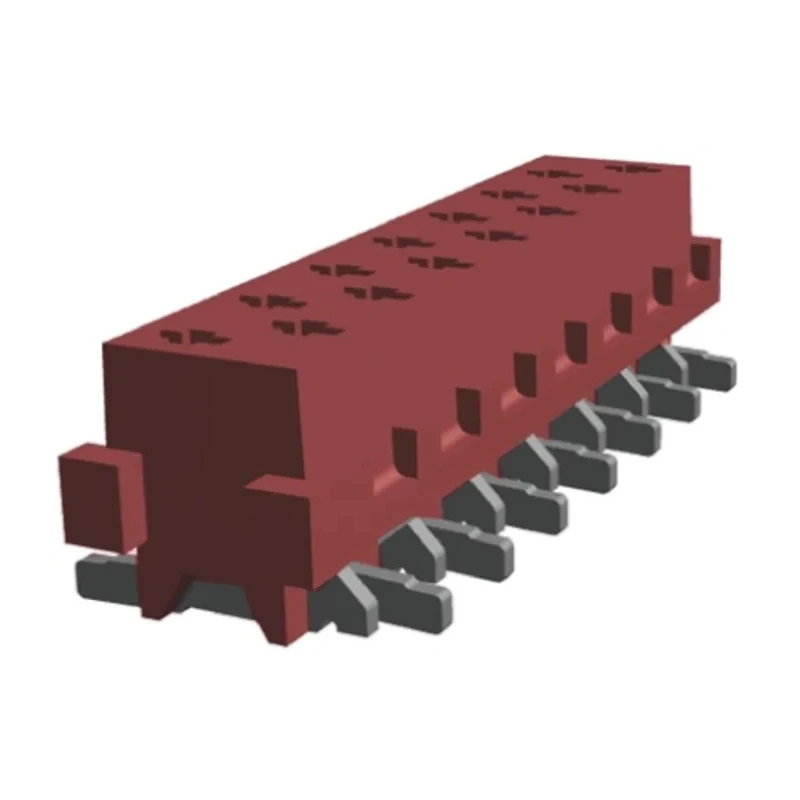

TE Connectivity Micro-MaTch Industrial Series Straight Surface PCB Socket 14-Contact 2 Row 1.27 mm Pitch Solder 1-188275-4

TE Connectivity 1-188275-4 Micro-MaTch Industrial Series is a 14-contact straight surface PCB socket designed for high-reliability wire-to-board electrical connections. This surface mount connector features a compact 1.27 mm pitch with 2 rows of female contacts constructed from bronze material plated with tin and nickel to ensure durability and excellent electrical performance.

The Micro-MaTch series incorporates a unique contact spring system preventing fretting corrosion by creating a gas-tight connection. Additionally, a positioning spring absorbs movements caused by vibration and thermal expansion, enhancing connection robustness in demanding industrial environments. The connector is polarized to guard against mismating and may feature locking latches for secure mating.

It supports a current of 1.5 A and operates at voltages up to 100 V. The housing is made of durable polyamide material, suitable for use in industrial applications with temperature ranges from -40°C to 105°C.

This socket finds applications across various industries including production and material handling equipment, robotics, motor controls, central heating units, car radios, navigation systems, dashboard electronics, base stations, set-top boxes, and audio systems. Its reliable design ensures efficient and consistent electrical contact in harsh operational environments.

TE Connectivity’s Micro-MaTch Industrial Series 1-188275-4 socket provides high precision and robust performance for industrial electronic assemblies requiring compact, reliable PCB connectors.

Compact 1.27 mm pitch ensures space-saving PCB connections. Features 14 female contacts arranged in 2 rows for reliable connectivity. Constructed from polyamide housing with bronze contacts plated in tin and nickel. Supports up to 1.5 A current and 100 V operating voltage.

Designed for surface mount with straight orientation suitable for Solder termination. Operates reliably between -40°C and 105°C temperature range. Contact spring system prevents fretting corrosion and maintains gas-tight connection.

Polarized design prevents mismating and ensures secure assembly. Applications include robotics, control units, audio equipment, central heating, and automotive dashboards. Explore the wide range of PCB connectors and sockets at EnvMart for industrial, manufacturing, and electronics applications.
