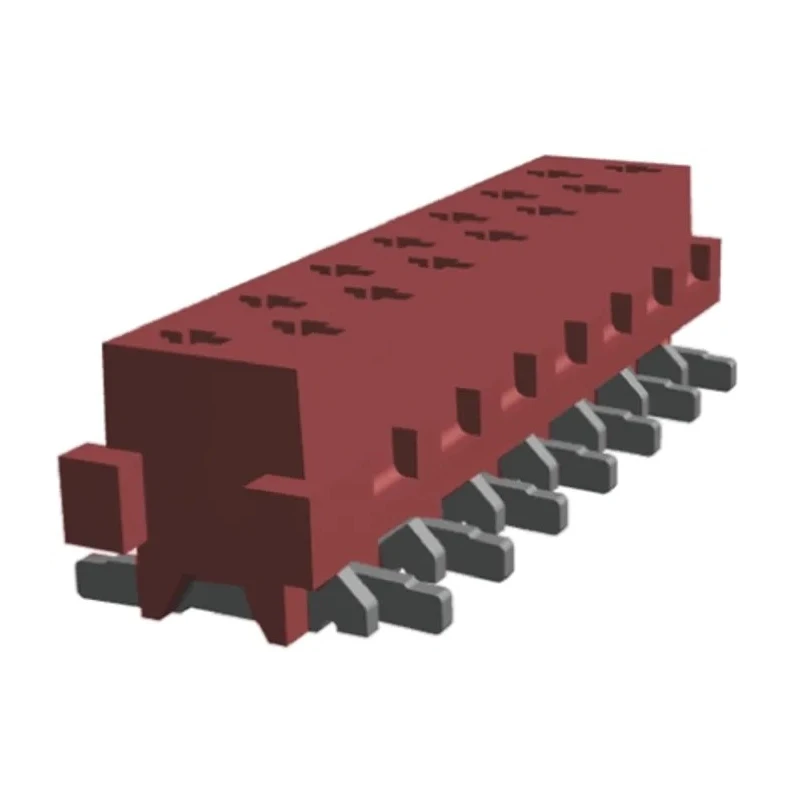

TE Connectivity Micro-MaTch Industrial Series Straight Surface PCB Socket, 14-Contact, 2 Row, 1.27 mm Pitch Solder 1-188275-4
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 100V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1.5A |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Bronze |
| Series | Micro-MaTch Industrial |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Connector |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 718-9914PBrand: TE ConnectivityManufacturers Part No.: 1-188275-4 |
| Contact Plating | Tin, Nickel Plated |
| Number of Contacts | 14 |
| Contact Gender | Female |
| Connector System | Wire-to-Board |
| Row Pitch | 1.5mm |
Key Features
- Compact and space-saving design suitable for high-density PCB applications.
- Features a fully tin-plated bronze contact system for corrosion resistance.
- Contact spring system prevents fretting corrosion and ensures a gas-tight connection.
- Polarized design prevents mismating and ensures secure connections.
- Rated for 100V voltage and 1.5A current operation.
- Operates reliably in temperatures ranging from -40°C to 105°C.
- Surface mount termination type with wire-to-board connector system.
- Compatible with Micro-MaTch Industrial Series components for versatile interconnections.
Product Description
TE Connectivity 1-188275-4 Micro-MaTch Industrial Series PCB Socket is a precision-engineered connector designed for reliable wire-to-board applications. This straight surface mount socket features 14 female contacts arranged in two rows with a fine 1.27 mm pitch, making it ideal for high-density electronic assemblies requiring secure and compact connections.
The contacts are made of bronze material with tin and nickel plating, providing excellent conductivity and resistance to corrosion. The connector incorporates a specialized contact spring system that mitigates fretting corrosion by ensuring a gas-tight connection. A positioning spring enhances mating stability by absorbing mechanical vibrations and thermal expansions, thereby preventing contact degradation over time.
Its polarization feature ensures correct orientation during mating, preventing damage due to mismating. Variants with locking latches are available for secured connections in dynamic environments.
This connector is rated for 100 volts and a current of 1.5 amperes, suitable for a broad range of electronic devices and industrial equipment. It operates efficiently within a temperature range of -40°C to 105°C.
Compact and space-saving design suitable for high-density PCB applications. Fully tin-plated bronze contacts resistant to corrosion. Gas-tight contact system prevents fretting corrosion. Polarized design prevents mismating errors.
Rated for 100V and 1.5A current capacity. Wide operating temperature range from -40°C to 105°C. Surface mount termination type for PCB installation. Wire-to-board connector system compatibility. Ideal for production machinery, robotics, control units, audio, and navigation systems.
This product suits industrial, manufacturing, and electronic assembly applications requiring high reliability and compact form factor connectors. Whether used in automation, automotive electronics, or communications equipment, the TE Connectivity Micro-MaTch series offers dependable connection integrity.
Explore the full range of PCB sockets and connectors at EnvMart to find complementary components tailored to your project requirements.
Explore more products in our Solder category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for 100 volts and a current of 1.5 amperes, making it suitable for a variety of electronic devices and industrial applications.
It operates efficiently within a temperature range of -40°C to 105°C, allowing for versatility in different environments.
This connector features 14 female contacts arranged in two rows, designed for high-density applications.
The contacts are made of bronze and are tin and nickel plated, providing excellent conductivity and corrosion resistance.
It utilizes a surface mount termination type with a wire-to-board connector system, suitable for PCB installation.
Yes, it features a polarized design that prevents mismating, ensuring secure connections during installation.
The contacts have a fine pitch of 1.27 mm, which is ideal for compact and high-density electronic assemblies.
The housing is made from polyamide, providing structural integrity for the connector.
Yes, there are variants available with locking latches for secured connections in dynamic environments.
It is suitable for industrial, manufacturing, and electronic assembly applications, including production machinery, robotics, and control units.
The connector is manufactured in India, as indicated by its country of origin.
This model features a straight orientation, facilitating easy integration into PCB layouts.
