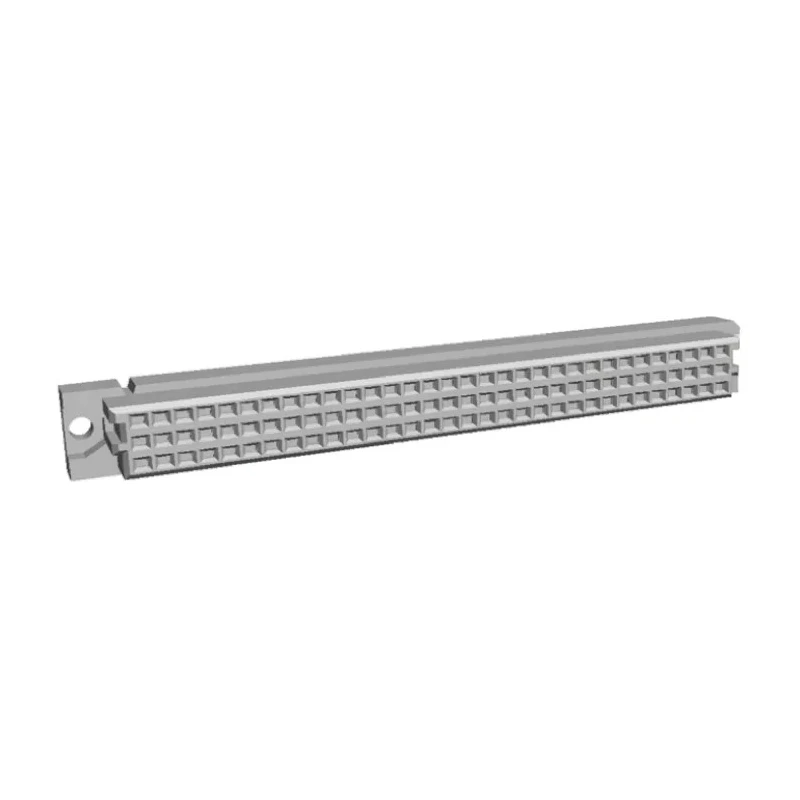

TE Connectivity Eurocard 96 Way 2.54 mm Pitch, Type Through Hole, Type C/2, Type Solder Class Class C2, 3 Row 5535090-4

TE Connectivity 5535090-4 is a Eurocard DIN 41612 Connector with 96 contacts in 3 rows, providing a 2.54 mm pitch spacing designed for high signal integrity and electrical performance. This female connector uses a through hole mount type and features solder class Class C2 termination, classified under type C/2, suitable for reliable soldering onto PCBs.

The connector contacts are made from phosphor bronze with gold over nickel plating, ensuring excellent conductivity and corrosion resistance. The housing material is flame retardant polyethylene terephthalate, contributing to safety and durability in demanding industrial environments.

This connector meets both DIN 41612 and IEC 60603-2 standards and supports a maximum operating voltage of 250V AC. It is engineered to function reliably in temperature ranges from -55°C to 125°C. The product design includes polarization features to prevent incorrect mating and selective contact loading to optimize electrical connections according to system requirements.

TE Connectivity’s Eurocard 5535090-4 is commonly used in industrial control DCS systems, telecommunications equipment, servers, backplane and motherboard assemblies, modular rack systems, and transport applications such as high-speed trains. These connectors support common bus systems including STE Bus, CIMBUS, FUTUREBUS, VMEBus, MULTIBUS (II), NUBUS, VXi Bus, and VME 64X.

The connector features 96 contacts arranged in 3 rows for reliable high-density connections. Constructed with phosphor bronze contacts plated with gold over nickel for superior conductivity. Equipped with a flame retardant polyethylene terephthalate housing for enhanced safety.

Certified to DIN 41612 and IEC 60603-2 standards ensuring quality and reliability. Designed to operate within temperatures from -55°C to 125°C and up to 250V AC. Includes solder class Class C2, type C/2 termination for excellent Solderability.

Polarization and selective contact loading features prevent mismating and optimize connections. Ideal for use in telecommunications, data centers, industrial control systems, and transport industries. Explore more high-quality connectors and electronic components in our dedicated sections for industrial and commercial applications at EnvMart.
