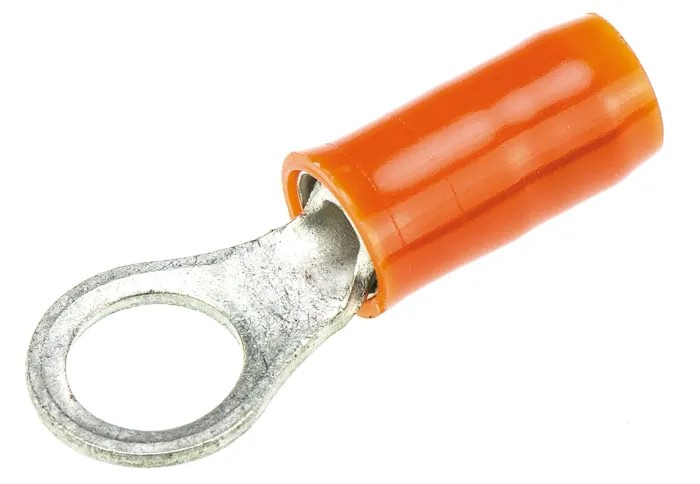

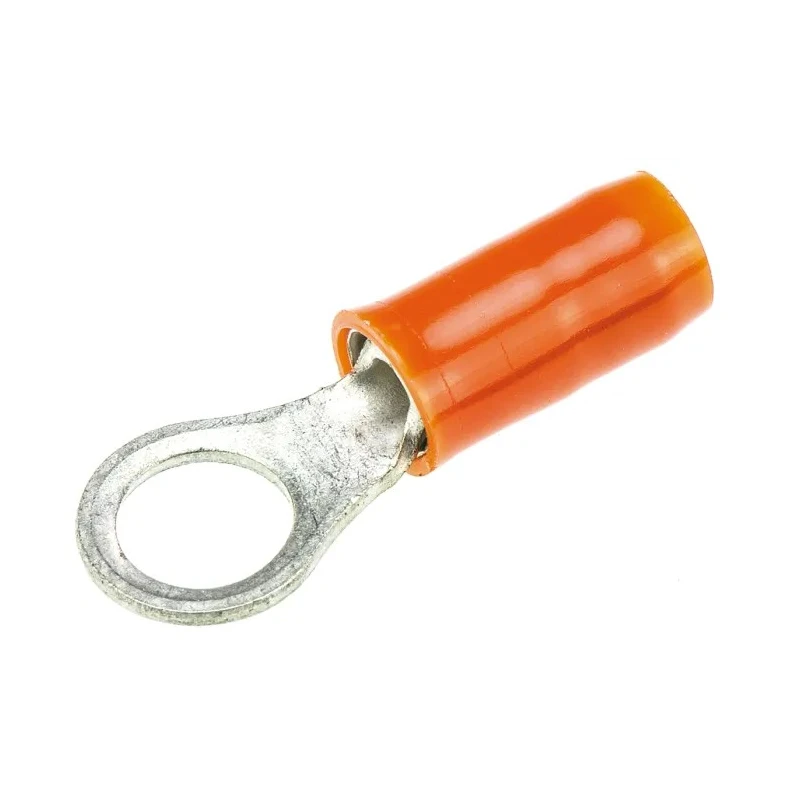

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size Nylon Sleeve 18 AWG 16 AWG Wire Size 152881
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Orange, Red |
| THICKNESS | 0.79mm |
| Model | 152881 |
| Insulation | Insulated |
| Overall Length | 20.45mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 710-5597PBrand: TE ConnectivityManufacturers Part No.: 152881 |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.8mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 18AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 7.14mm |
| Inner Ring Diameter | 5mm |
| Stud Size | M5 |
Key Features
- High conductivity copper body ensures efficient electrical connection.
- Copper sleeve improves wire insulation support and prevents fraying.
- Serrated wire barrel provides maximum contact and tensile strength after crimping.
- Colour coded nylon sleeve allows quick and easy wire size identification.
- Funnelled wire entry enables fast and reliable wire insertion.
- Durable design withstands maximum operating temperatures up to 105°C.
- Compatible with various wiring applications including instruments, lighting, power supplies, and motors.
Product Description
TE Connectivity 152881 PIDG insulated ring terminal is engineered with a precision-formed high conductivity copper body and barrel to deliver reliable electrical connections under demanding conditions. This ring terminal features an outer orange nylon insulation sleeve suitable for wire sizes ranging from 18 AWG to 16 AWG and an M5 stud size. Serrations inside the barrel enhance tensile strength and contact reliability after crimping, while the copper sleeve prevents wire fraying and adds insulation support.
The colour coded nylon sleeve facilitates quick identification of wire sizes and tooling compatibility. The funnelled wire entry design further optimizes the terminal for high-speed production by enabling easy wire insertion, minimizing installation time.
These PIDG terminals meet or exceed multiple industry requirements including MIL-T-7928, Type II, Class 1 and 2, making them ideal for use within industrial, electrical, transportation, aerospace, and appliance manufacturing sectors. Their construction promotes uniform and reliable crimps ensuring optimum performance and durability in control instruments, lighting systems, panel boxes, and motor wiring.
High conductivity copper body for enhanced electrical performance. Copper sleeve provides improved wire insulation support. Serrated barrel surface ensures maximum contact and tensile strength post-crimp. Colour coded nylon sleeve facilitates wire size and tool identification.
Funnelled wire entry design prevents wire strand turn-back for fast insertion. Rated for maximum operating temperature of 105°C. Applicable across instrumentation, power supply, transportation, aerospace, and motor applications.
This product is a new TE Connectivity PIDG insulated ring terminal stocked under RS Stock No. 710-5597P. It offers a versatile and dependable solution for professional electrical wiring needs. Explore additional TE Connectivity Ring Terminals and PIDG series products on EnvMart for comprehensive power connector solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is compatible with wire sizes ranging from 18 AWG to 16 AWG.
The maximum operating temperature for this terminal is rated at 105°C.
The contact material is copper, and it features a nylon insulation sleeve.
The stud size for this terminal is M5.
The overall length of this terminal is 20.45 mm, with an outer ring diameter of 7.14 mm and an inner ring diameter of 5 mm.
The serrated barrel surface enhances tensile strength and contact reliability after crimping, ensuring a secure connection.
The nylon sleeve is color coded in orange, which facilitates quick identification of wire sizes and tooling compatibility.
This terminal is suitable for use in industrial, electrical, transportation, aerospace, and appliance manufacturing sectors.
The thickness of this terminal is 0.79 mm.
This product meets or exceeds multiple industry requirements including MIL-T-7928, Type II, Class 1 and 2.
The funnelled wire entry design allows for fast and reliable wire insertion, minimizing installation time.
The contact plating of this terminal is tin.
