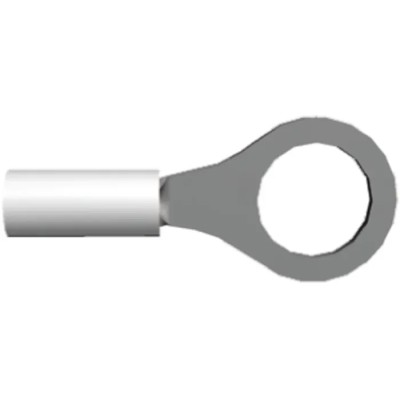

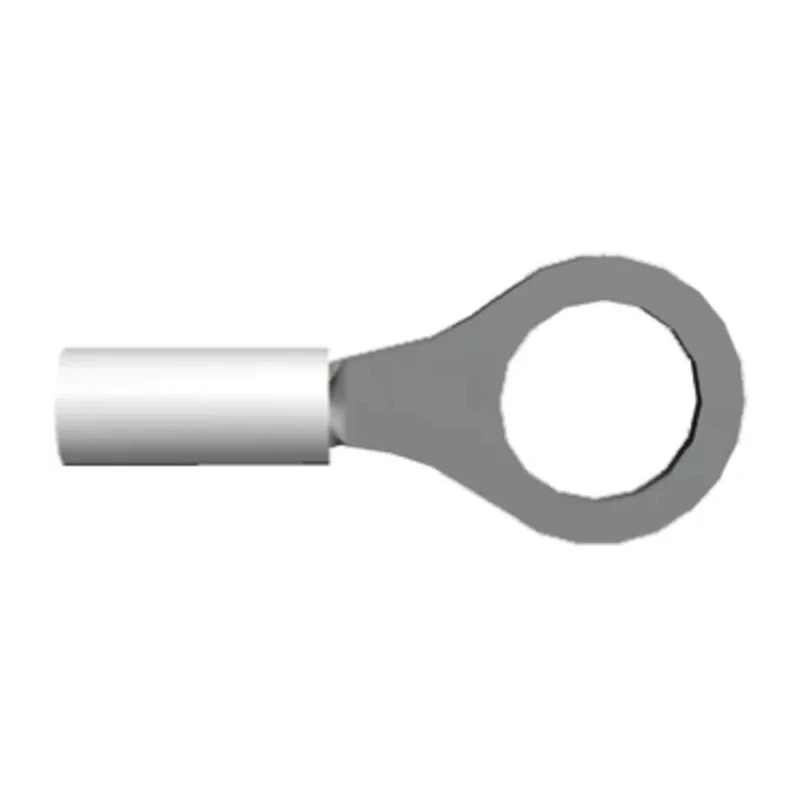

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 24 AWG 20 AWG Wire Size Natural 323990
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Natural |
| THICKNESS | 0.79mm |
| Model | 323990 |
| Insulation | Insulated |
| Overall Length | 20.85mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 731-3170PBrand: TE ConnectivityManufacturers Part No.: 323990 |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 20AWG |
| Outer Ring Diameter | 7.92mm |
| Inner Ring Diameter | 5mm |
| Stud Size | M5 |
Key Features
- Constructed with high conductivity copper body for superior electrical performance.
- Insulated with nylon material ensuring durability and environmental protection.
- Features serrations in the wire barrel providing maximum contact and tensile strength after crimping.
- Color-coded natural nylon sleeve aids in wire size identification and tooling.
- Designed with funnelled wire entry for fast and secure wire insertion during production.
- Suitable for use up to a maximum operating temperature of 105°C.
- Compliant with RoHS standards ensuring environmentally friendly manufacturing.
- Compatible with a wide range of industrial applications including control instruments, lighting, power supplies, motors, and aerospace.
Product Description
TE Connectivity 323990 PIDG Insulated Ring Terminal combines precision engineering and reliable electrical connection for industrial and commercial wiring applications. This ring terminal is designed for wire sizes 24 AWG to 20 AWG and features an M5 stud size, ensuring compatibility with various panel and machinery terminals.
The terminal body is made from high conductivity copper, plated with tin to resist corrosion and enhance durability. The insulated section uses nylon material with a natural color coding for easy wire size identification and enhanced environmental protection.
The PIDG (Pre-Insulated Diamond Grip) design incorporates serrations inside the wire barrel, which provide excellent contact and tensile strength after crimping, ensuring a reliable and uniform connection. The copper sleeve surrounding the barrel offers additional wire insulation support and prevents fraying, while the funnelled wire entry allows fast and secure wire insertion, optimizing production efficiency.
These Ring Terminals meet RoHS compliance standards and are rated for maximum operating temperatures up to 105°C, making them ideal for demanding electrical environments.
Applications cover a broad spectrum of industries including instrument and control systems, lighting installations, power supply connections, panel boxes, transportation equipment, lifting devices, motors, aerospace, and various appliances.
Made of high conductivity copper body with tin plating for corrosion resistance. Insulated with durable natural nylon sleeve aiding wire size identification. Serrated wire barrel for secure and strong crimp connections. Copper sleeve provides additional insulation support and prevents wire fraying.
Funnelled wire entry supports easy and quick wire insertion. Meets RoHS environmental and safety standards. Rated for maximum operating temperature of 105°C. Ideal for industrial, automotive, aerospace, and control panel wiring applications.
This TE Connectivity PIDG ring terminal is designed to deliver consistent electrical performance and durability for professional and industrial use. Browse EnvMart's wide selection of TE Connectivity products and other Power Connectors for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal is compatible with wire sizes ranging from 24 AWG to 20 AWG.
The maximum operating temperature for this model is 105°C.
The contact material for this terminal is copper, which is plated with tin to resist corrosion.
The stud size for this terminal is M5.
This terminal features insulation made from nylon material, providing environmental protection and aiding in wire size identification.
The overall length of this terminal is 20.85mm, with an outer ring diameter of 7.92mm and an inner ring diameter of 5mm.
Yes, this terminal complies with RoHS standards, ensuring environmentally friendly manufacturing.
This model is designed with a funnelled wire entry, allowing for fast and secure wire insertion during production.
It is suitable for a wide range of industrial applications including control instruments, lighting, power supplies, motors, and aerospace.
The thickness of this terminal is 0.79mm.
The serrations in the wire barrel provide maximum contact and tensile strength after crimping, ensuring a reliable connection.
This terminal is manufactured in India.
