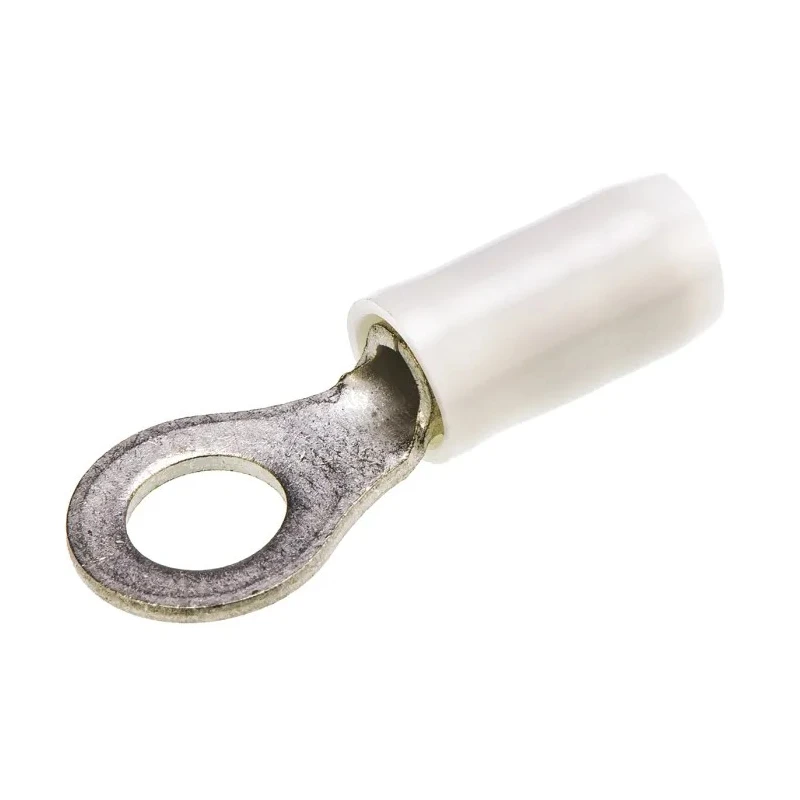

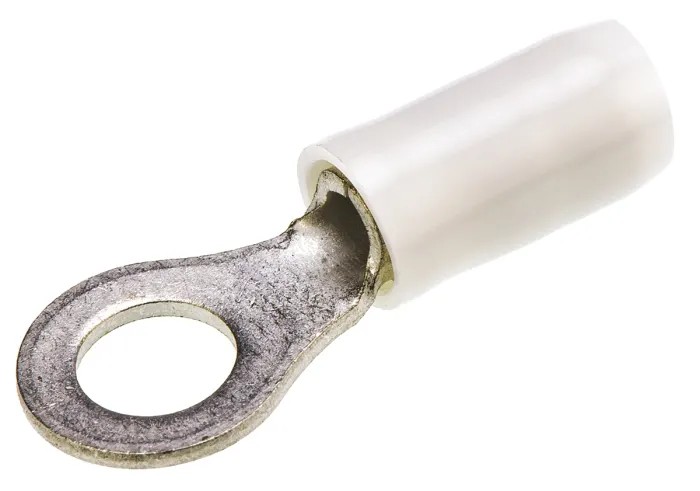

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size, 14 AWG to 12 AWG Wire Size, Red, White 152872

TE Connectivity 152872 PIDG Insulated Ring Terminal M5 stud size, designed for 14 AWG to 12 AWG wire sizes, offers reliable and uniform crimp performance in electrical wiring applications. The terminal uses a high conductivity copper body and brass barrel surrounded by a copper sleeve to enhance wire insulation support and prevent fraying.

The ring terminal features a nylon insulation sleeve color-coded in red and white, enabling easy wire size identification and tooling compatibility. The design includes serrations inside the barrel to maximize contact and tensile strength after crimping, and the funnelled wire entry expedites wire insertion while maintaining wire integrity.

With an outer ring diameter of 8.71mm and an inner ring diameter of 5mm, the terminal securely fits M5 stud bolts. The overall length of 22mm and thickness of 0.75mm ensure mechanical durability in various usage scenarios.

These PIDG ring terminals meet high standards suitable for industrial, manufacturing, HVAC, transportation, aerospace, and electronic equipment wiring tasks, withstanding temperatures up to 105°C for safe operation.

High conductivity copper body for excellent electrical performance. Nylon insulation sleeves with color coding for identification. Tin-plated copper contacts ensure corrosion resistance. Funnelled wire entry prevents wire strand damage and improves installation speed.

Precision design offers reliable crimp and mechanical strength. Suitable for instruments, power supplies, panel boxes, motors, and aerospace applications. Supports wire sizes from 14 AWG (1.65mm²) to 12 AWG (3.45mm²). Operates reliably up to 105°C maximum temperature.

This TE Connectivity product is a high-quality component suitable for professional electricians and engineers needing durable, reliable Ring Terminals. Explore more wire terminals and accessories in the Electronics & Electricals Power Connectors category at EnvMart.
