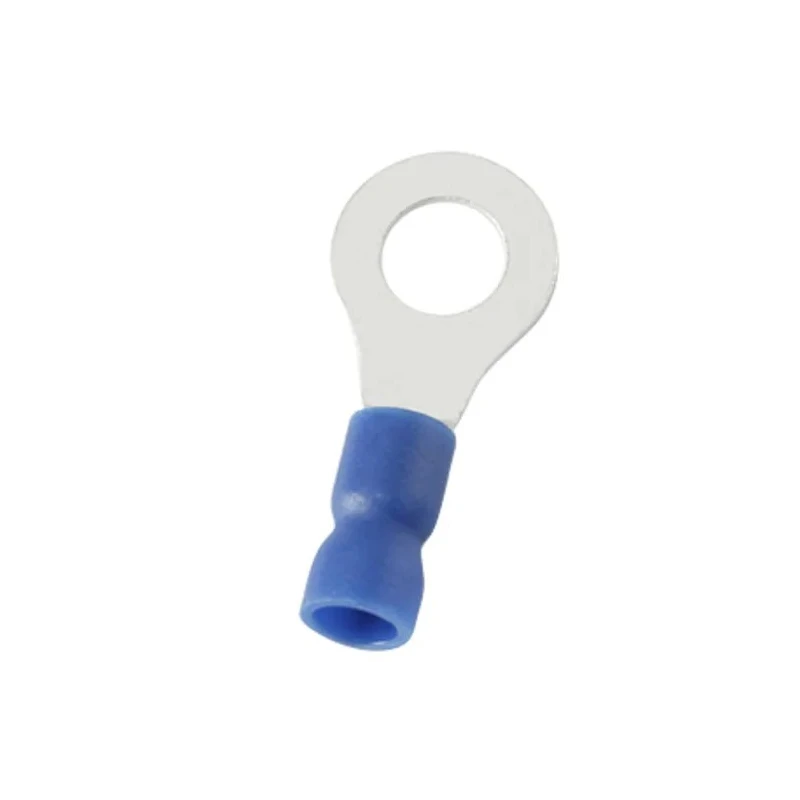

RS PRO Insulated Ring Terminal 8.4 mm Stud Size 16 AWG 14 AWG Wire Size Blue 178-8682
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Blue |
| THICKNESS | 0.8mm |
| Model | 178-8682 |
| Insulation | Insulated |
| Overall Length | 28.3mm |
| Contact Material | Copper |
| Series | RS PRO |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Vinyl |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1.5mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Outer Ring Diameter | 12mm |
| Inner Ring Diameter | 8.4mm |
| Stud Size | 8.4 mm |
Key Features
- High-quality copper contact material ensures excellent conductivity.
- Vinyl insulation provides electrical safety and durability.
- Blue color coding for easy identification of wire size.
- Overall length of 28.3 mm and thickness of 0.8 mm.
- Suitable for maximum wire size 14 AWG (2.5 mm²) and minimum wire size 16 AWG (1.5 mm²).
- Stud size compatible with 8.4 mm screws or bolts.
- Tin plating on contacts for corrosion resistance.
- Operating temperature range from -40°C to 105°C for versatile applications.
Product Description
RS PRO 178-8682 insulated ring terminal is engineered for reliable electrical connections in industrial and commercial wiring applications. It features a vinyl insulation material colored blue to denote wire size compatibility, ideal for 16 AWG to 14 AWG wires. The terminal has a stud size of 8.4 mm and an overall length of 28.3 mm, making it suitable for connectors requiring this standard size.
The contact material is high-quality copper, plated with tin to resist corrosion and ensure optimal electrical conductivity. Its thickness of 0.8 mm adds mechanical strength for durable performance under stress.
This ring terminal supports a maximum wire size of 2.5 mm² and is rated for operating temperatures from -40°C up to 105°C, allowing for use in diverse environments including HVAC, electrical panels, automotive, and general wiring installations.
The construction and materials meet the RS PRO series quality standards but do not carry additional certifications or approvals. Ideal for assembly and maintenance tasks, these Ring Terminals facilitate secure and lasting wire connections in electronic systems and power distribution applications.
High-quality copper contacts and tin plating provide reliable conductivity. Vinyl insulated blue color ensures clear wire size identification. Rated for a wide temperature range for industrial use. Compact and sturdy design with 28.3 mm length and 0.8 mm thickness.
Compatible with 8.4 mm stud screws for secure fastening. Suitable for wire sizes 16 AWG to 14 AWG (1.5 mm² to 2.5 mm²). Manufactured in Taiwan, Province Of China, reflecting quality standards. Explore the full range of RS PRO connectors and accessories on EnvMart for your electrical and electronic component sourcing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This insulated ring terminal is compatible with wire sizes ranging from 16 AWG (1.5 mm²) to 14 AWG (2.5 mm²).
The stud size for this model is 8.4 mm, making it suitable for screws or bolts of that size.
It features high-quality copper as the contact material, which is tin plated for corrosion resistance, and is insulated with vinyl.
The overall length of the terminal is 28.3 mm with a thickness of 0.8 mm.
It is rated for an operating temperature range from -40°C to 105°C, allowing for use in diverse environments.
The blue color coding indicates the wire size compatibility, making it easier to identify the appropriate wire size for use.
The outer ring diameter is 12 mm, and the inner ring diameter is 8.4 mm.
It is suitable for various applications including HVAC, electrical panels, automotive, and general wiring installations.
The thickness of this terminal is 0.8 mm, which adds mechanical strength for performance under stress.
This ring terminal is manufactured in Taiwan, Province Of China.
The tin plating on the contacts provides corrosion resistance, ensuring optimal electrical conductivity.
The construction and materials meet the RS PRO series quality standards but do not carry additional certifications or approvals.
