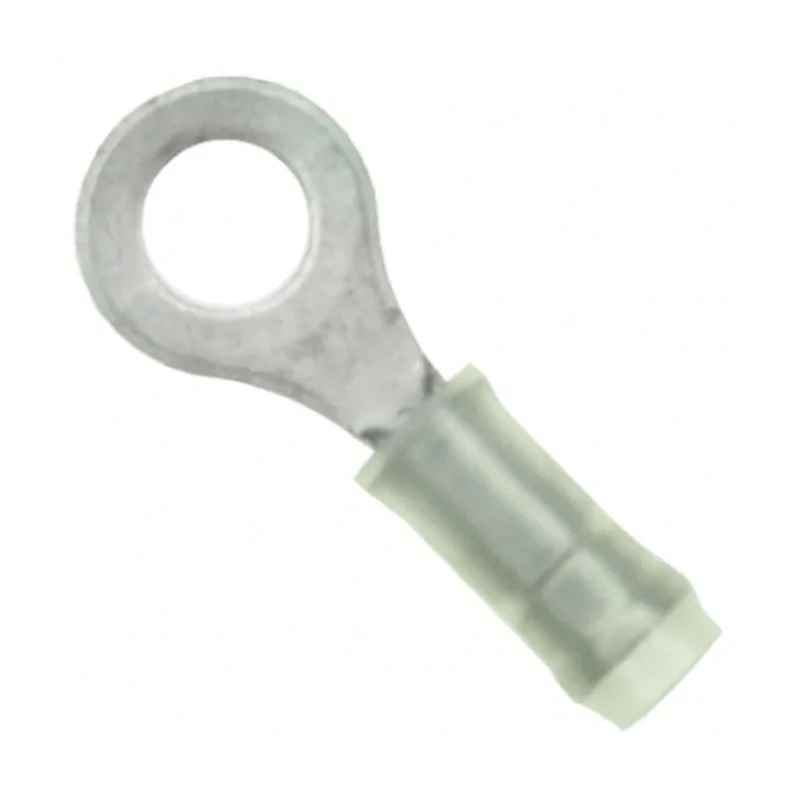

TE Connectivity PIDG Insulated Ring Terminal M4 Stud Size 24 AWG 20 AWG Wire Size Natural 323989
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Natural |
| THICKNESS | 0.79mm |
| Model | 323989 |
| Insulation | Insulated |
| Overall Length | 20.85mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 718-7491PBrand: TE ConnectivityManufacturers Part No.: 323989 |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 20AWG |
| Outer Ring Diameter | 7.93mm |
| Inner Ring Diameter | 4.34mm |
| Stud Size | M4 |
Key Features
- Made with high conductivity copper body for superior electrical performance.
- Features nylon insulation material with a natural color for easy wire size identification.
- The copper sleeve enhances wire insulation support and prevents wire fraying.
- Serrations in the barrel ensure maximum contact and tensile strength after crimping.
- Funnelled wire entry design allows fast and easy wire insertion during production.
- Complies with RoHS standards for environmental safety.
- Maximum operating temperature is 105°C, suitable for demanding electrical environments.
- Ideal for instruments, control panels, lighting, power supplies, motor connections, aerospace, and appliance applications.
Product Description
TE Connectivity 323989 PIDG Insulated Ring Terminal is engineered for dependable performance in electrical wiring applications, accommodating wire sizes ranging from 24 AWG to 20 AWG and designed for an M4 stud size. Its high conductivity copper body and tin plating ensure excellent electrical contact, while the copper sleeve enhances wire insulation and prevents fraying.
The nylon insulation, colored naturally, facilitates wire size identification, and the funnelled wire entry feature enables swift and reliable wire insertion during rapid production processes. Serrated barrel design provides superior tensile strength and contact reliability after crimping.
These Ring Terminals comply with RoHS environmental standards and can withstand maximum operating temperatures up to 105°C, making them fit for use in a variety of industrial and commercial applications including instruments, control equipment, lighting systems, power supplies, panel boxes, transportation machinery, motors, aerospace, and household appliances.
The PIDG (Pre-Insulated Diamond Grip) construction enables a uniform and reliable crimp, enhancing overall circuit integrity and durability under demanding conditions. High conductivity copper body for optimal electrical performance.
Natural nylon insulation sleeve for easy wire size identification. Copper sleeve to support insulation and prevent wire fraying. Serrated wire barrel for strong mechanical and electrical connection. Funnelled wire entry ensures fast and accurate wire termination.
RoHS compliant and environmentally safe. Maximum operating temperature 105°C for versatile use environments. Suitable across industries including aviation, automotive, and industrial machinery. Designed for wire sizes 24 AWG to 20 AWG with M4 stud size compatibility.
This product is part of the extensive TE Connectivity range available at EnvMart, serving various industries with reliable connectivity solutions. Browse our catalog for additional accessories and related wire terminal products to complete your electrical wiring projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model accommodates wire sizes ranging from 24 AWG to 20 AWG.
The maximum operating temperature is 105°C, making it suitable for demanding electrical environments.
The contact material is copper, which ensures excellent electrical performance.
This terminal is designed for an M4 stud size.
The insulation material is nylon, which aids in easy wire size identification.
The outer ring diameter is 7.93 mm.
This terminal complies with RoHS standards for environmental safety.
The serrated barrel design provides superior tensile strength and ensures reliable contact after crimping.
The overall length of this terminal is 20.85 mm.
The funnelled wire entry design allows for fast and easy wire insertion during production.
It is suitable for various applications including instruments, control panels, lighting, power supplies, and motor connections.
The thickness of the terminal is 0.79 mm.
