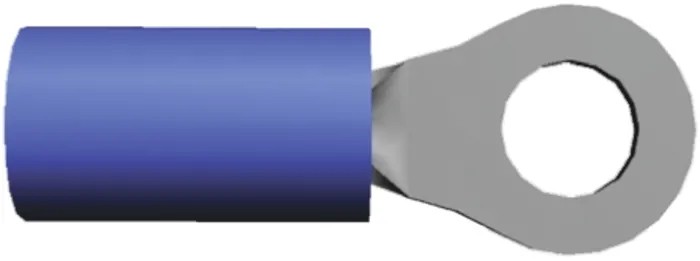

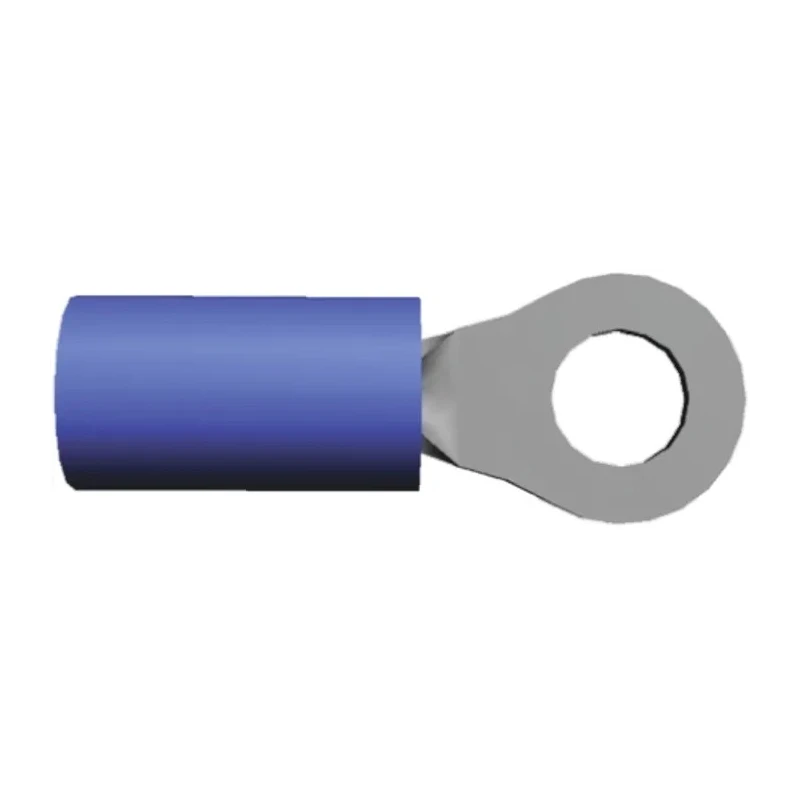

TE Connectivity PIDG Insulated Ring Terminal M4 Stud Size 16 AWG 14 AWG Wire Size Blue 53941-1

TE Connectivity 53941-1 PIDG Insulated Ring Terminal is engineered for secure and reliable electrical connections with M4 stud compatibility. This ring terminal supports wire sizes from 16 AWG to 14 AWG and incorporates a high conductivity copper body with a tin plating finish for excellent conductivity and corrosion resistance.

The PIDG design employs a pre-insulated diamond grip system, which, coupled with serrations inside the wire barrel, delivers consistent and robust crimps ensuring maximum contact and tensile strength in challenging circuit applications.

A blue nylon outer sleeve aids in quick wire size identification and provides enhanced insulation, improving safety and ease of use. Additionally, the copper sleeve inside the barrel supports the wire insulation and prevents fraying, making it suitable for high-speed production environments.

With an overall length of 20.65 mm and a thickness of 0.78 mm, this terminal is compact yet durable. It can withstand operating temperatures up to 105°C, making it reliable for use in industrial, laboratory, manufacturing, HVAC, automotive, aerospace, transportation, and control panel wiring applications.

These ring terminals meet or exceed key industry standards including UL, RoHS, and CSA certifications, adding assurance for safety and environmental compliance. Constructed with high conductivity copper and tin plating for enhanced electrical performance.

PIDG (Pre-Insulated Diamond Grip) design ensures uniform, reliable crimps in demanding circuit environments. Blue nylon insulation sleeve provides easy wire size identification and superior insulation. Wire barrel serrations maximize contact and tensile strength after crimping.

Suitable operating temperature up to 105°C for high temperature resistance. Compact dimensions with 20.65 mm length and 0.78 mm thickness. Copper sleeve supports wire insulation and prevents fraying. Meets UL, RoHS, and CSA standards for quality and compliance.

Ideal for use in instrumentation, control panels, power supplies, motors, aerospace, and transportation equipment.

These PIDG insulated ring terminals by TE Connectivity offer a dependable, versatile solution for a wide range of wiring and electrical assembly requirements. Explore more products in our Ring Terminals category for compatible connectors and wiring accessories from trusted industrial brands.
