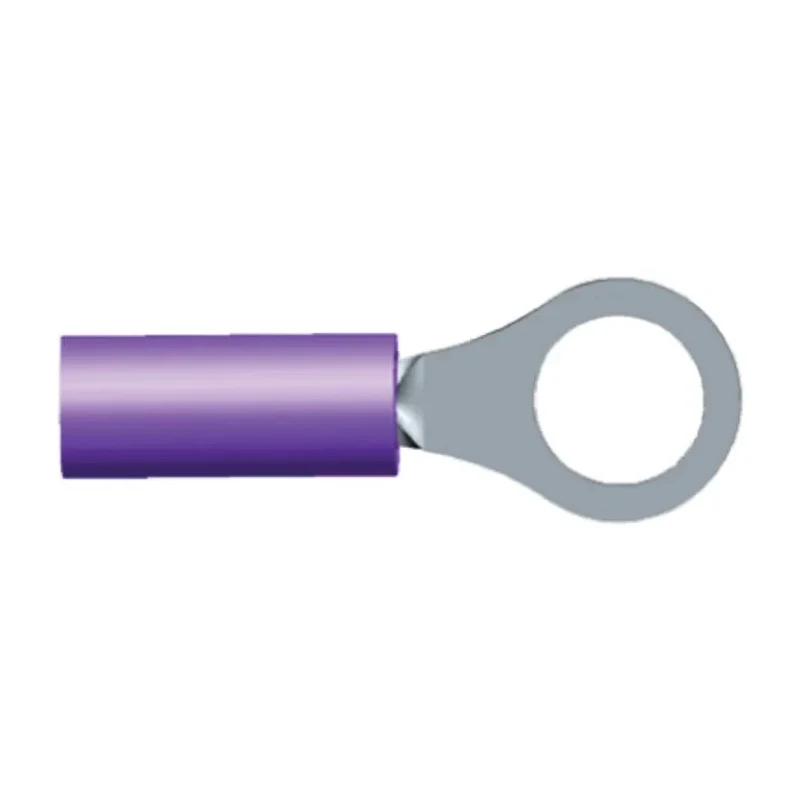

TE Connectivity PIDG Insulated Ring Terminal M4 Stud Size 20 AWG Wire Size, Purple 152894

TE Connectivity 152894 PIDG Insulated Ring Terminal is a high-quality ring tongue wire crimp terminal designed for consistent and reliable electrical connections. It is engineered for wire size 20 AWG and stud size M4, with a durable purple nylon insulation sleeve that supports easy wire size identification. The terminal's body is precision-formed from high conductivity copper with a tin-plated contact surface, ensuring optimal electrical contact and corrosion resistance.

This insulated ring terminal features a copper sleeve inside the barrel that provides enhanced wire insulation support, preventing fraying and maintaining connection integrity. Serrations within the wire barrel maximize contact and tensile strength, producing a uniform and strong crimp critical for secure electrical connections. The funnelled entry allows quick wire insertion, facilitating efficient high-speed production processes.

The product meets RoHS standards, indicating compliance with relevant safety and environmental regulations. Its maximum operating temperature is rated at 105°C, making it suitable for demanding electrical environments including instrumentation, control panels, lighting, power supply systems, panel boxes, transportation equipment, lifting machinery, motors, aerospace components, and household appliances.

High conductivity copper body provides excellent electrical performance. Copper sleeve enhances wire insulation support and prevents fraying. Serrated wire barrel ensures maximum contact and tensile strength after crimping.

Purple color-coded nylon insulation sleeve for easy wire size and tooling identification. Funnelled wire entry enables easy and fast wire insertion during assembly. Meets RoHS compliance standards for environmental safety.

Designed for use in demanding industrial and electrical applications. Rated maximum operating temperature of 105°C.

This PIDG ring terminal is an ideal choice for industries requiring durable, reliable wire termination solutions. Te Connectivity's range of PIDG terminals provides versatility across various wire, barrel, and stud sizes, ensuring adaptable solutions for complex wiring needs.
