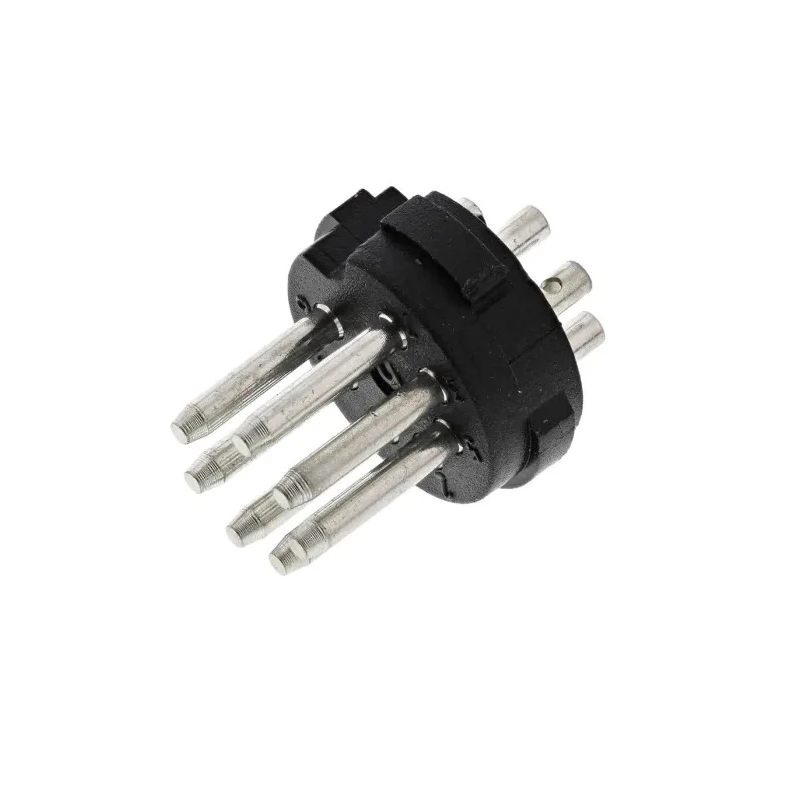

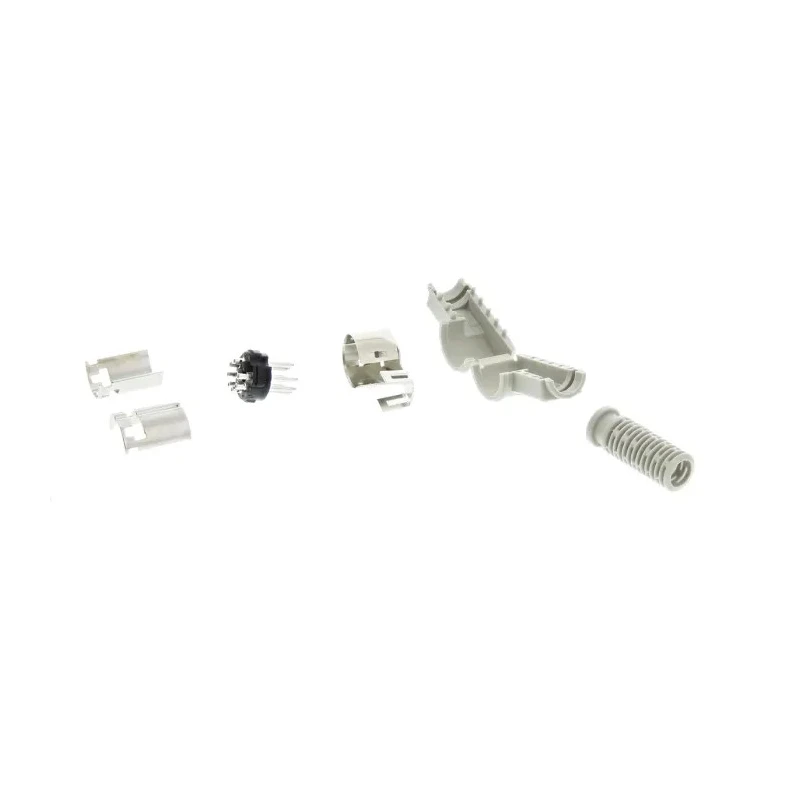

RS PRO MAWI 7 Pole Right Angle Standard DIN Plug Cable Male 4A 34V AC/DC IP30 DIN 45329 Polyethylene Brass Tin 776-628
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Voltage | 34, 34V ac |
| Brand | RS PRO |
| Orientation | Right Angle |
| Current | 4A |
| Model | 776-628 |
| IP Rating | IP30 |
| Mount Type | Cable |
| Housing Material | Polyethylene |
| Contact Material | Brass |
| Series | MAWI |
| Termination Type | Solder |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Shield Type | Shielded |
| Pole Format | 7 |
| Contact Plating | Tin |
| Number of Contacts | 7 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Size | Standard |
| DIN Number | DIN 45329 |
Key Features
- Seven-pole DIN plug with cable mount for efficient wiring solutions.
- Rated for 4A current and 34V AC/DC operation, suitable for low-voltage signal transmission.
- Shielded and right angle orientation ensures secure fit and minimized electromagnetic interference.
- Polyethylene housing and tin-plated brass contacts deliver durability and corrosion resistance.
- IP30 protection and solder termination for enduring use in controlled environments.
- Compatible with DIN 45329 and MAWI series standards for cross-industry integration.
- Operating temperature range from -20°C to 60°C meets diverse environmental requirements.
- Male contact gender and standard connector size provide broad compatibility.
Product Description
The RS PRO MAWI 7 Pole Right Angle Standard DIN Plug, model 776-628, is an industrial-grade cable-mounted connector designed for robust and reliable connectivity in electronics, industrial automation, and laboratory environments. This plug features seven contacts and is engineered for right angle cable entry, making it ideal for systems where space constraints demand a compact and secure connection solution.
Constructed with a durable polyethylene housing and tin-plated brass contacts, this DIN Plug delivers excellent mechanical strength, resistance to corrosion, and consistent electrical conductivity. Its shielded construction helps minimize signal interference, making it suitable for environments with moderate electromagnetic activity.
The plug is rated for 4A current and supports up to 34V AC or DC, aligning with common requirements for low-voltage signaling, sensor inputs, and instrumentation. IP30-rated protection ensures safety against dust and accidental contact, enhancing its suitability for use in controlled environments such as test benches, laboratory setups, and industrial machinery panels.
Solder termination simplifies installation and serviceability, while the male contact configuration is compatible with standard DIN chassis sockets. Compliance with DIN 45329 and the MAWI series standards guarantees compatibility with a wide variety of complementary circular connectors across sectors.
With an operating temperature range of -20°C to +60°C, this connector can withstand changing ambient conditions without loss of performance. It is widely used in control systems, audio interfaces, laboratory instrumentation, sensor arrays, and automation equipment in industries such as electronics manufacturing, process control, and scientific research.
Choose RS PRO’s 776-628 for structured connectivity in industrial, laboratory, and automation markets where reliability, versatility, and conformity to DIN standards are paramount. Explore more DIN connectors from RS PRO in the Electronics Components category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RS PRO MAWI 7 Pole Right Angle Standard DIN Plug is rated for a current of 4A.
This model supports a maximum voltage of 34V AC or DC.
It has an IP30 rating, providing protection against dust and accidental contact.
The housing is made of polyethylene, and the contacts are tin-plated brass.
The operating temperature range is from -20°C to +60°C.
This connector features seven contacts.
It uses solder termination for installation and serviceability.
Yes, it complies with DIN 45329 and the MAWI series standards.
The plug is designed for right angle orientation, which is suitable for space-constrained applications.
The contact gender is male, which allows compatibility with standard DIN chassis sockets.
The country of origin for this product is the Czech Republic.
It is suitable for use in control systems, audio interfaces, laboratory instrumentation, and automation equipment.
