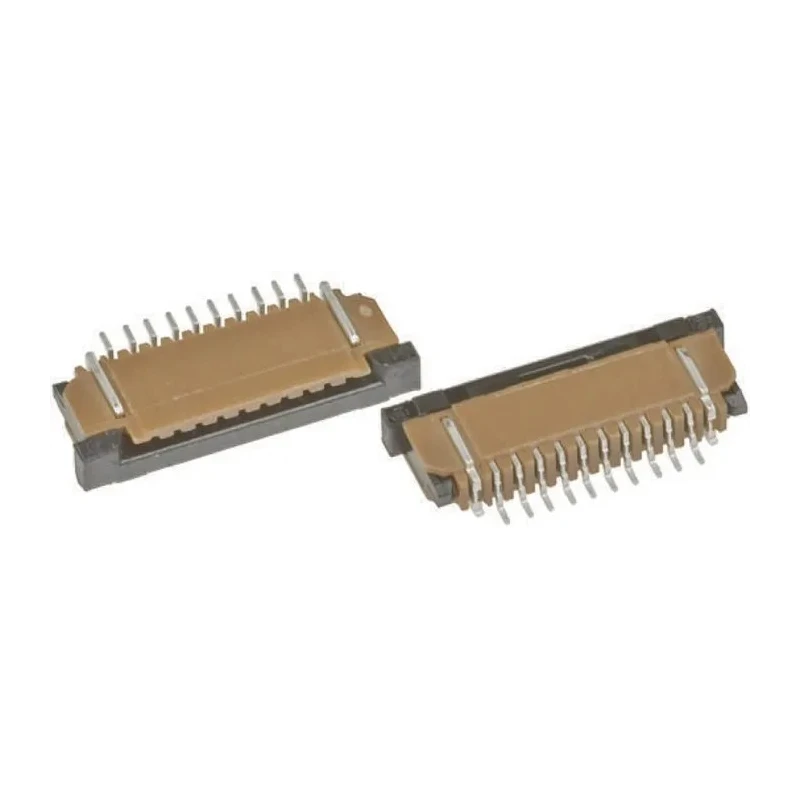

Amphenol Communications Solutions 1 mm Pitch 20 Way Right Angle Female FPC Connector, Solder SFW20R-1STE9LF

Amphenol Communications Solutions SFW20R-1STE9LF is a 20-way right angle female FPC Connector with a 1 mm pitch, designed for surface mount solder termination. This connector features phosphor bronze contacts plated with tin, providing reliable electrical conductivity and durability.

Its zero insertion force (ZIF) design facilitates easy and damage-free cable connection. The connector is oriented at a right angle with bottom contact position, optimizing circuit board layout and space usage.

Operating voltage of the connector is 100 V AC, supporting a current of 1 A per pin. It withstands a wide temperature range from -55°C to 105°C, making it suitable for industrial, communication, automotive, and consumer electronics applications such as mobile phones, printers, and multimedia devices.

The housing is made from polysulfone, offering excellent mechanical strength and stability. The connector system does not feature a locking mechanism but uses a traditional sliding actuator to secure the cable connection.

Its series designation is SFW-R, produced in Malaysia under high quality standards, meeting the needs for versatile, economical, and efficient electronic interconnections. Features a 20-contact configuration for versatile use.

Constructed with phosphor bronze contacts plated in tin for durability. Supports a current rating of 1A per pin ensuring stable electrical performance. Connector has a 1 mm pitch with surface mount design for PCB compatibility.

Right angle orientation with bottom contact position facilitates compact assembly. Termination is by solder ensuring secure connections in circuits. Operates effectively in temperatures from -55°C to 105°C. Housing made of robust polysulfone material for mechanical stability.

Designed without locking mechanism and uses zero insertion force (ZIF) technology. Voltage rating up to 100 V AC suitable for diverse electronic systems.

This connector suits industrial, laboratory, communication equipment, automotive controls, and consumer electronics manufacturing environments. Its robust design and easy installation make it ideal for reliable signal and power connections in compact electronic assemblies.
