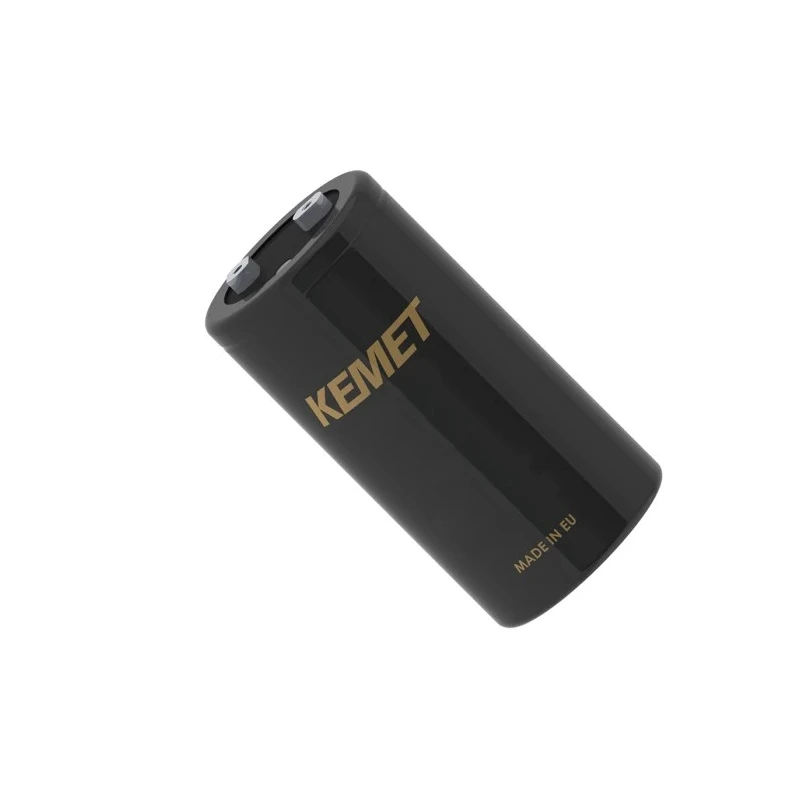

KEMET Aluminium Electrolytic Capacitor 0.22F, 25V DC, Screw Mount, Cylindrical Can, ALS31A224NF025
Specifications
| Country of Origin | Portugal |
|---|---|
| Voltage | 25V dc |
| Diameter | 77mm |
| Brand | KEMET |
| Model | ALS31A224NF025 |
| Packaging | Box |
| Mount Type | Screw |
| Construction | Cylindrical Can |
| Series | ALS31 |
| Termination Type | Screw |
| Maximum Operating Temperature | 85°C |
| Tolerance | ±20 % |
| Lifetime | 40000 h |
| Capacitance | 0.22F |
| Minimum Operating Temperature | -40°C |
| Polarity | Polar |
| Leakage Current | 6μA |
| Standards/Approvals | IEC 60384-4, RoHS |
| Pin Count | 2 |
| Lead Pitch | 31.8mm |
| Equivalent Series Resistance ESR | 6mΩ |
| Capacitor Ripple Current | 30.8A |
| KEMET 0.22F Electrolytic Capacitor 25V dc, Screw Mount - PEH200HT6220MB2Brand | KEMET |
Key Features
- Features a robust cylindrical can construction with screw mount for secure installation.
- Capacitance of 0.22F provides high energy storage capability.
- Designed for high ripple current up to 30.8A and long operational life of up to 40,000 hours.
- Operating temperature range from -40°C to 85°C suitable for demanding environments.
- Polar configuration ensures correct orientation for safe operation.
- Compliant with IEC 60384-4 and RoHS standards for safety and environmental requirements.
- Applications include AC motor control, process control, welding, traction, measuring, and telecommunication power supplies.
Product Description
KEMET ALS31A224NF025 is a high-performance aluminium electrolytic capacitor designed for industrial and demanding commercial applications where reliability and longevity are paramount. Featuring a capacitance of 0.22F and a voltage rating of 25V DC, this capacitor is engineered to deliver excellent energy storage and smoothing performance.
The ALS31A224NF025 capacitor comes in a durable cylindrical can design and uses a screw mount for secure installation in equipment or panel systems. Polarized for safe and effective use, it features two pin terminals with screw termination, ensuring high contact reliability.
With a rated ripple current of 30.8A and an operating temperature range from -40°C up to 85°C, this capacitor is suitable for environments where thermal and electrical stability are critical. Its exceptionally high operational life expectancy of up to 40,000 hours supports extended maintenance cycles and optimal performance in continuous-duty systems.
The capacitor demonstrates excellent surge voltage capability and high CV volume, combining high capacitance with ripple current handling ability. It also meets IEC 60384-4 and RoHS compliance standards, verifying its suitability for regulated and environmentally conscious applications.
ALS31 series capacitors, including this model, are commonly used in AC motor control, process control systems, welding equipment, traction, industrial measuring instruments, and power supply smoothing in telecommunication infrastructure.
Its construction and electrical properties make it the ideal choice for energy storage, pulse operation, and smoothing applications demanding high reliability and long product lifespan.
The ALS31A224NF025 is manufactured in Portugal and delivers proven KEMET quality for mission-critical installations. For further technical compatibility, please refer to the detailed specifications provided below.
Explore more industrial Capacitors and related products from KEMET in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ALS31A224NF025 has a capacitance of 0.22F and a voltage rating of 25V DC.
This capacitor can operate at a maximum temperature of 85°C.
It uses a screw mount for secure installation.
The capacitor has a ripple current rating of 30.8A.
The diameter of this model is 77mm, with a lead pitch of 31.8mm.
The operating temperature range is from -40°C to 85°C.
It complies with IEC 60384-4 and RoHS standards.
The capacitor features a cylindrical can construction.
This model is polarized, ensuring correct orientation for safe operation.
It is suitable for applications such as AC motor control, process control, welding, traction, and telecommunication power supplies.
The ALS31A224NF025 is manufactured in Portugal.
