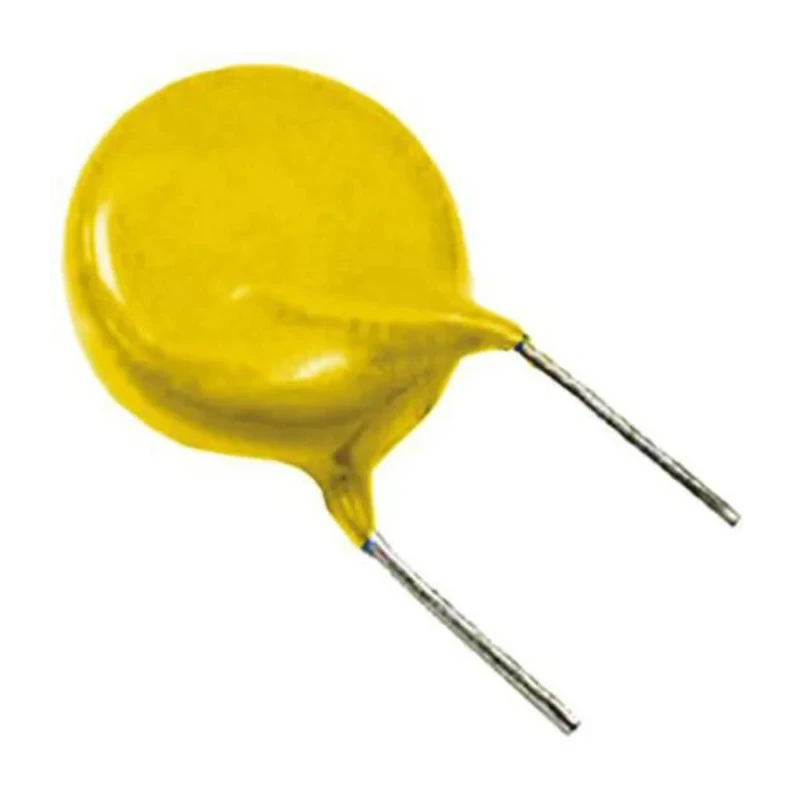

Vishay Single Layer Ceramic Capacitor 10nF 300V AC ±20% Y5V VY2 Through Hole 125°C Max Op Temp VY2103M59Y5VS63V0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V ac |
| Diameter | 15mm |
| Brand | Vishay |
| Height | 19mm |
| Model | VY2103M59Y5VS63V0 |
| Width | 5mm |
| Mount Type | Through Hole |
| Series | VY2 |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±20 % |
| Capacitance | 10nF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Radial |
| Dissipation Factor | 2.5% |
| Standards/Approvals | DIN EN 60384-14, CSA, RoHS, IEC 60384-14 |
| Pin Count | 2 |
| Dielectric | Y5V |
| Suppression Class | Y2/X1 |
| IEC 60384-14.4, UL 60384-14, DIN EN 60384-14, CSA E60384-1 | 03, CSA E60384-14:09 |
Key Features
- Capacitance of 10nF suitable for filtering and coupling applications.
- Rated for 300V AC operation to ensure robust performance.
- ±20% tolerance delivers reliable and consistent capacitance values.
- Y5V dielectric provides high reliability and flame retardancy.
- Through hole mounting and radial terminals simplify installation.
- Operating temperature range from -40°C to 125°C for wide environmental compatibility.
- VY2 series and suppression class Y2/X1 for enhanced safety in high-voltage environments.
- RoHS compliant and meets DIN EN 60384-14, CSA, IEC 60384-14 standards.
Product Description
The Vishay VY2103M59Y5VS63V0 is a precision-engineered single layer ceramic capacitor with a capacitance value of 10nF and an AC voltage rating of 300 volts. This model features a Y5V dielectric and comes from the reliable VY2 series, suited for critical circuit protection and filtering tasks.
This capacitor is built using a ceramic disc with both sides silver-plated and encapsulated in flame retardant epoxy resin, providing exceptional electrical safety. The radial connection leads are made from tinned copper clad steel, enhancing long-term reliability and making it easy to insert in PCB designs.
Ideal for use in across-the-line, line bypass, and antenna coupling circuits, the VY2103M59Y5VS63V0 is well-suited for safety-related applications in consumer and industrial electronics. Its suppression class Y2/X1 ensures compatibility with high-voltage and EMI-sensitive installations.
It features a tolerance of ±20%, allowing for consistent operation across a broad electrical environment. The operating temperature range from -40°C to 125°C provides dependable performance in harsh conditions, while through hole mounting supports easy installation on printed circuit boards.
With approvals including RoHS, DIN EN 60384-14, CSA, and IEC 60384-14, this capacitor meets international safety and environmental standards. Its compact form factor helps save space, with physical measurements of 19mm height, 15mm diameter, and 5mm width.
Capacitance of 10nF suitable for filtering and coupling tasks in industrial, consumer, and laboratory electronic systems. Rated 300V AC operation ensures compatibility with high-voltage circuits. Y5V dielectric and flame retardant epoxy for enhanced safety and extended temperature range.
VY2 series and suppression class Y2/X1 for reliable performance in safety-critical applications. Through hole mounting and radial terminals for secure PCB installation. RoHS compliant and meets DIN EN 60384-14, CSA, IEC 60384-14 standards.
Operating temperature range from -40°C to 125°C guarantees robust performance. Suitable for industrial, laboratory, automation, and consumer electronics requiring precise voltage filtering and suppression. Choose Vishay for high-reliability passive components. Explore more ceramic Capacitors and related electronic components in the Electronics Components category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance of 10nF, suitable for filtering and coupling applications.
It is rated for 300V AC operation, ensuring robust performance in high-voltage applications.
The tolerance is ±20%, which allows for reliable and consistent capacitance values.
The operating temperature range is from -40°C to 125°C, making it suitable for a wide variety of environmental conditions.
It uses a Y5V dielectric, which provides high reliability and flame retardancy.
This model features through hole mounting, which simplifies installation on printed circuit boards.
It has a height of 19mm, a diameter of 15mm, and a width of 5mm.
It has a suppression class of Y2/X1, ensuring compatibility with high-voltage and EMI-sensitive installations.
It is RoHS compliant and meets DIN EN 60384-14, CSA, and IEC 60384-14 standards.
It features radial terminals made from tinned copper clad steel, enhancing long-term reliability.
It is ideal for use in across-the-line, line bypass, and antenna coupling circuits, particularly in safety-related applications.
The dissipation factor is 2.5%, which is relevant for its performance in various electronic applications.
