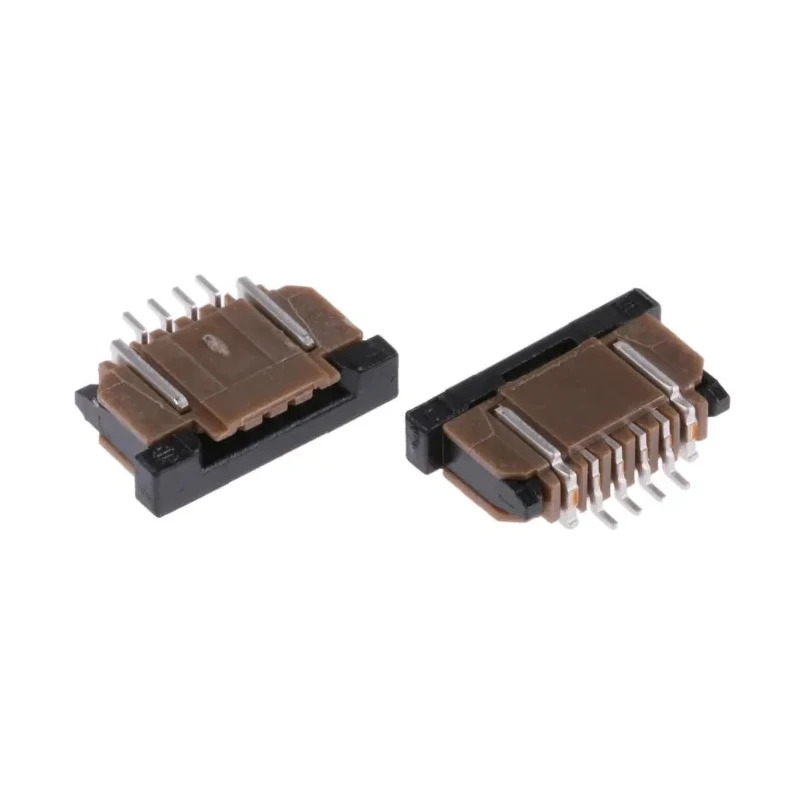

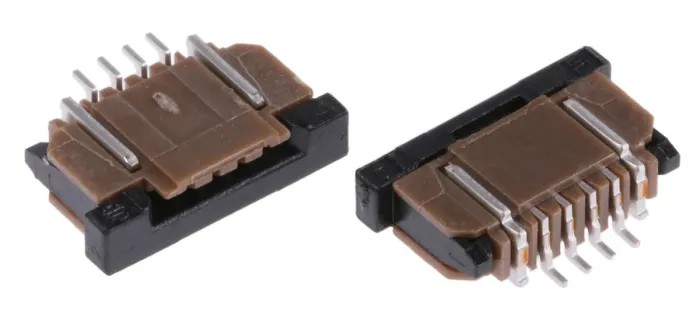

Amphenol Communications Solutions 1 mm Pitch 4 Way Right Angle Female FPC Connector ZIF Bottom Contact SFW4R-1STE9LF

Amphenol Communications Solutions SFW4R-1STE9LF is a 4 Way Right Angle Female FPC Connector featuring a 1 mm pitch and Zero Insertion Force (ZIF) bottom contact. Designed for professional use, this connector is ideal for applications demanding compact and reliable interconnection such as mobile phones, printers, car multimedia devices, and other mobile electronics.

The phosphor bronze contacts are plated with tin to ensure consistent electrical conductivity and resistance to corrosion. The right angle orientation helps in efficient PCB layout, especially in space-constrained designs.

This connector supports a maximum current of 1 ampere per contact and is designed to withstand operating temperatures from -55°C to 105°C, making it suitable for harsh industrial and commercial environments.

The housing is constructed from sturdy polysulfone material that provides excellent mechanical strength while maintaining electrical insulation. The connector employs a surface mount mount type with one row and a total of four contacts. Its 100 V AC voltage rating fits various electronic control and instrumentation needs.

Its Zero Insertion Force bottom contact design simplifies cable connection and reduces wear during assembly. While no locking mechanism is present, the traditional sliding actuator design secures the cable effectively.

Features low insertion force ZIF bottom contacts enhancing ease of assembly and durability. Right angle orientation supports efficient PCB integration in compact spaces. Robust polysulfone housing ensures stable mechanical performance.

Suitable for industrial control, printer, automotive multimedia, and mobile device applications. Operates reliably across a wide temperature range from -55°C to 105°C. Current rating of 1 ampere per contact for dependable electrical performance.

Voltage rating of 100 V AC meets standard electronic device requirements.

This FPC Connector is manufactured in Malaysia and comes from the trusted SFW-R series by Amphenol Communications Solutions. It provides a versatile, economical connection solution for multiple professional and consumer electronic devices. This product enhances the reliability and efficiency of electronic assemblies and is widely adopted in the electronics manufacturing industry.
