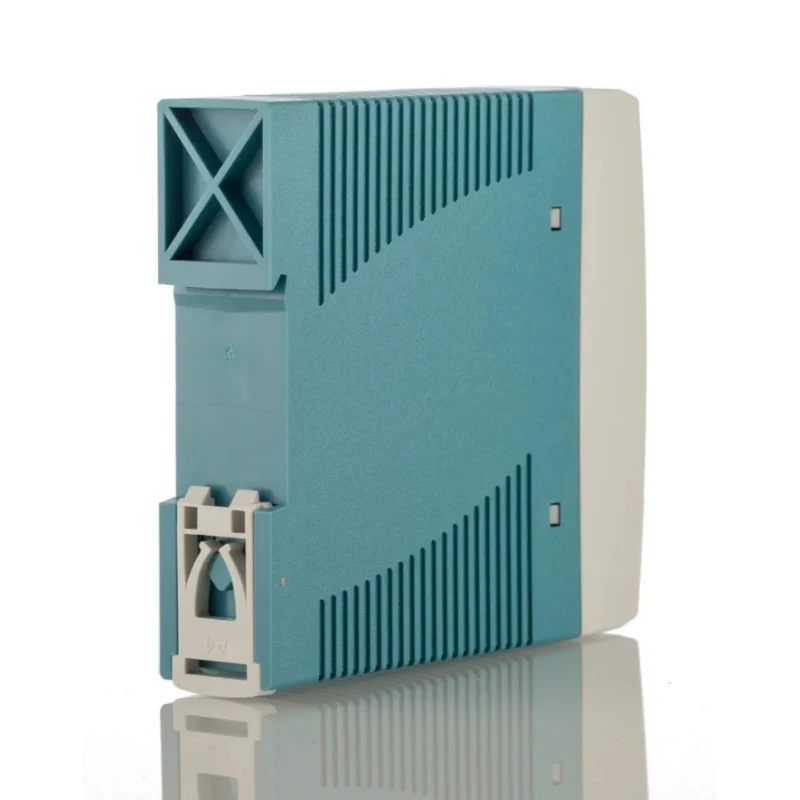

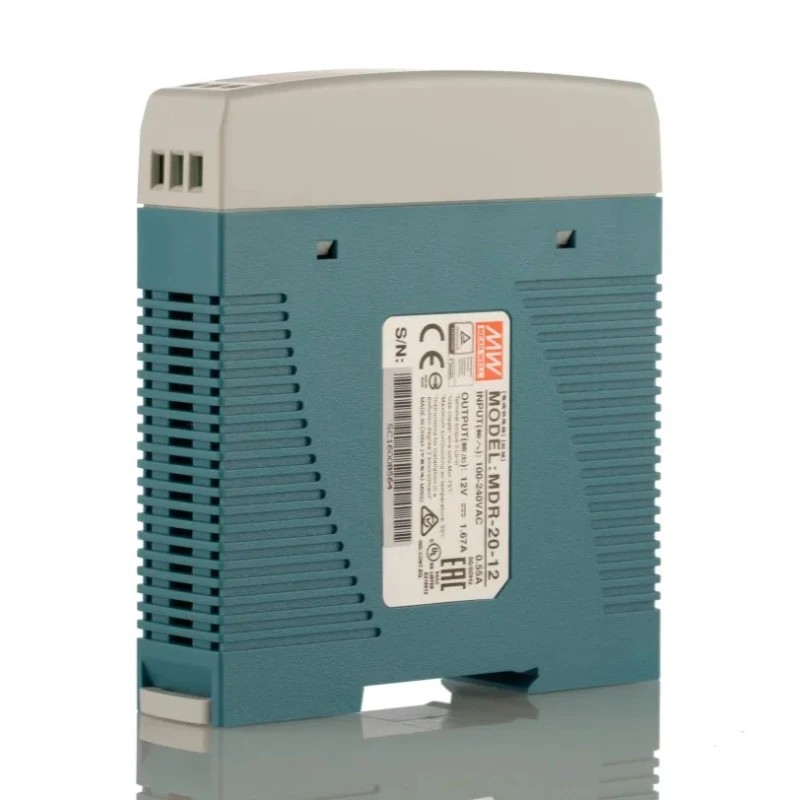

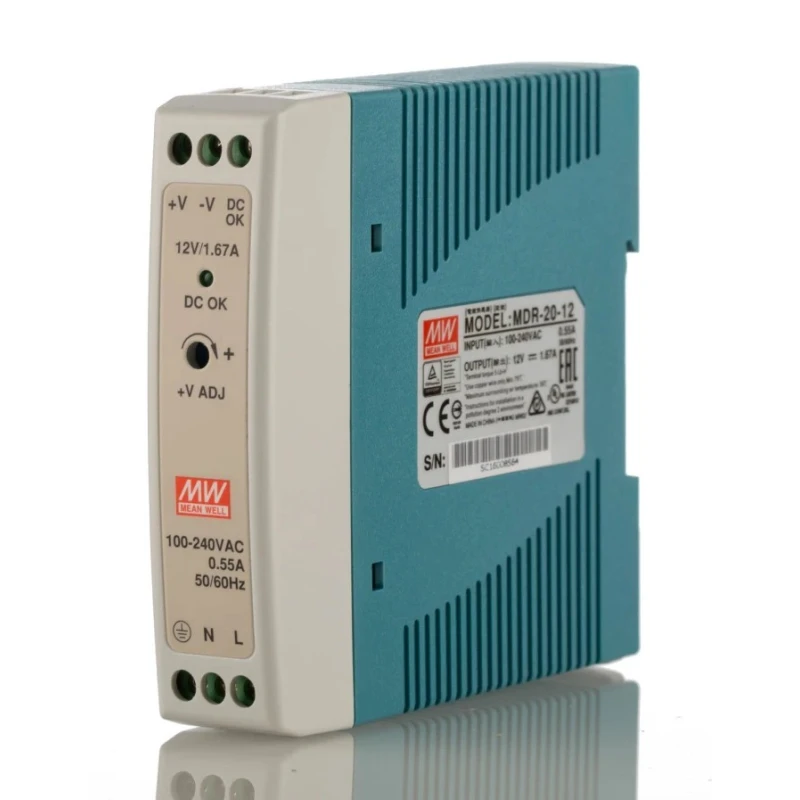

MEAN WELL Switched Mode DIN Rail Power Supply 264V AC Input 13.2V DC, 1.67A Output, 20W MDR-20-12

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL Switched Mode DIN Rail Power Supply 264V AC Input 13.2V DC, 1.67A Output, 20W MDR-20-12

Name: MEAN WELL Switched Mode DIN Rail Power Supply 264V AC Input 13.2V DC, 1.67A Output, 20W MDR-20-12
Brand: MEAN WELL
SKU: 118221
Price: 25.98 USD
Availability: InStock



Category Power Supply Brand MEAN WELL Condition New

Specifications

Country of Origin	India
Brand	MEAN WELL
Power	20W
Height	100mm
Model	MDR-20-12
Depth	90mm
Width	22.5mm
Series	MDR
Output Current	1.67A
Maximum Operating Temperature	70°C
Sub Type	Switched Mode
Minimum Operating Temperature	-20°C
Number of outputs	1
Maximum Input Voltage	264V ac
Electrical Phase	1
Standards/Approvals	RoHS Compliant, TUV EN 60950-1, UL 508
Maximum Output Voltage	13.2V dc
Minimum Input Voltage	85V ac

Key Features

Supports universal AC input voltage from 85V to 264V.
Provides single output with DC voltage of 13.2 V and output current of 1.67 A.
Features short circuit, overload and over voltage protections for safe operation.
Operates efficiently within temperature range of -20°C to 70°C with cooling by free air convection.
Includes LED indicator and DC OK relay contact for power status monitoring.
Compact slim design fitting DIN Rail TS-35/7.5 or 15 mounting.
Complies with RoHS, TUV EN 60950-1, and UL 508 safety standards.
No load power consumption for energy efficiency.

Product Description

MEAN WELL MDR-20-12 is a switched mode DIN Rail power supply designed for robust industrial and electronic applications. It accepts a universal AC input voltage range from 85V to 264V AC, delivers a steady DC output voltage of 13.2V with a current capacity of 1.67A, and offers an overall power output of 20 watts.

This DIN Rail power supply series is specifically designed to provide reliable power with built-in protections against short circuits, overload, and over voltage conditions, ensuring operational safety and longevity of connected devices.

The compact unit measures 100mm in height, 22.5mm in width, and 90mm in depth, making it suitable for installation on DIN Rail TS-35/7.5 or 15, facilitating neat and efficient mounting inside control cabinets and electrical panels.

Additional features include cooling by free air convection, an LED power-on indicator for visual status, and a DC OK relay contact for system monitoring. It operates effectively in temperatures ranging from -20°C up to 70°C, suitable for diverse environmental conditions.

The MDR-20-12 model complies with international safety certifications including RoHS, TUV EN 60950-1, and UL 508, ensuring quality and regulatory adherence for safe deployment. Universal full-range AC input allows flexibility across different power conditions.

Short circuit, overload, and over voltage protections protect both power supply and load devices. LED and relay contact offer convenient operation status monitoring. Compact slim design supports space-optimized DIN Rail mounting.

Wide operating temperature supports various industrial environments. Energy-efficient with no load power consumption features.

This Power Supply unit is ideal for applications in industrial automation, electronic components, power distribution, and other control systems requiring reliable low-voltage DC power.
