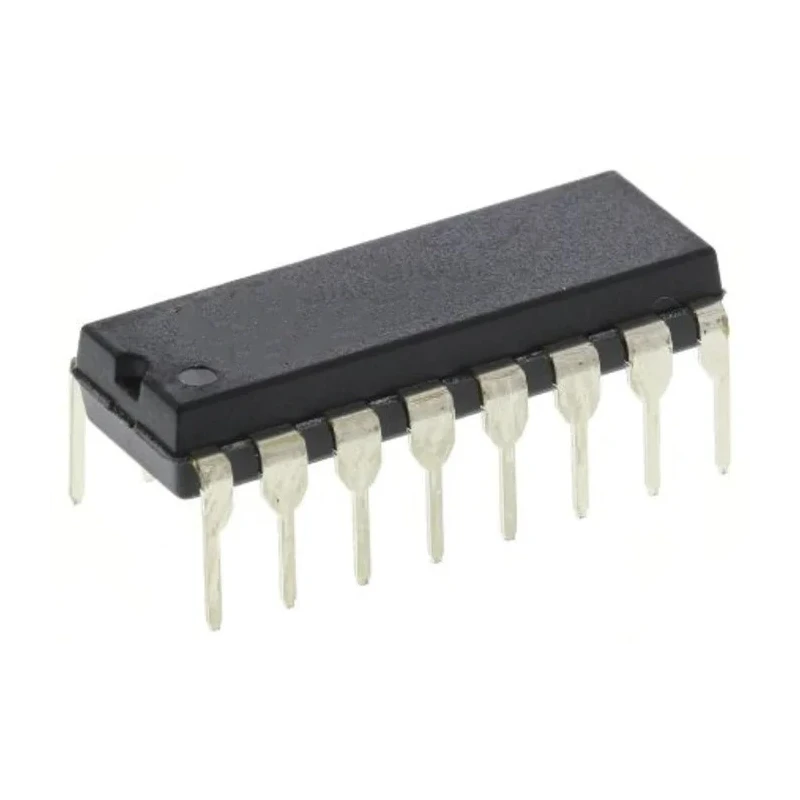

Renesas Electronics Multiplexer 1 CMOS 0.33 Configuration 16-Pin PDIP DG408DJZ

Renesas Electronics DG408DJZ is a high-performance single 8-channel monolithic CMOS analog multiplexer housed in a 16-pin PDIP package. It incorporates an array of eight analog switches controlled by a TTL/CMOS compatible digital decode circuit, facilitating precise channel selection for complex digital and analog signal routing.

The device operates using a minimum supply voltage of 5V and tolerates up to 34V, allowing it to fit into a wide range of industrial, laboratory, and electronic circuit applications. Its maximum on-state resistance of 125 ohms ensures minimal signal loss and high signal integrity.

Engineered for robust operation, the DG408DJZ functions reliably across a broad temperature range from -40°C to 85°C, making it suitable for demanding environments such as industrial control systems, instrumentation, and electronic test equipment.

The CMOS logic family construction guarantees low power consumption while maintaining high input impedance, ensuring compatibility with modern low-power devices. The multiplexer supports both single and split-supply configurations, enhancing flexibility in circuit design.

The compact 16-pin PDIP package simplifies integration into printed circuit boards, facilitating efficient assembly for high-density electronic modules. Operates with a wide supply voltage range suitable for multiple applications.

CMOS logic family assures low power consumption and excellent noise immunity. Maximum operating temperature up to 85°C supports industrial use. Low on-state resistance ensures high signal fidelity during switching. Compatible with TTL and CMOS output logic standards.

Single 8-channel analog multiplexer configuration for versatile signal routing. Packaged in easy-to-handle 16-pin PDIP format for PCB mounting. Supports single or split supply operation to suit diverse circuits. Reliable operation in harsh temperature and electrical conditions.

This component is widely used in industrial electronics, telecommunications, instrumentation, and control systems where precise switching of analog signals is required. Explore more in our Multiplexer ICs category to find related Renesas Electronics components for your electronic design needs.
