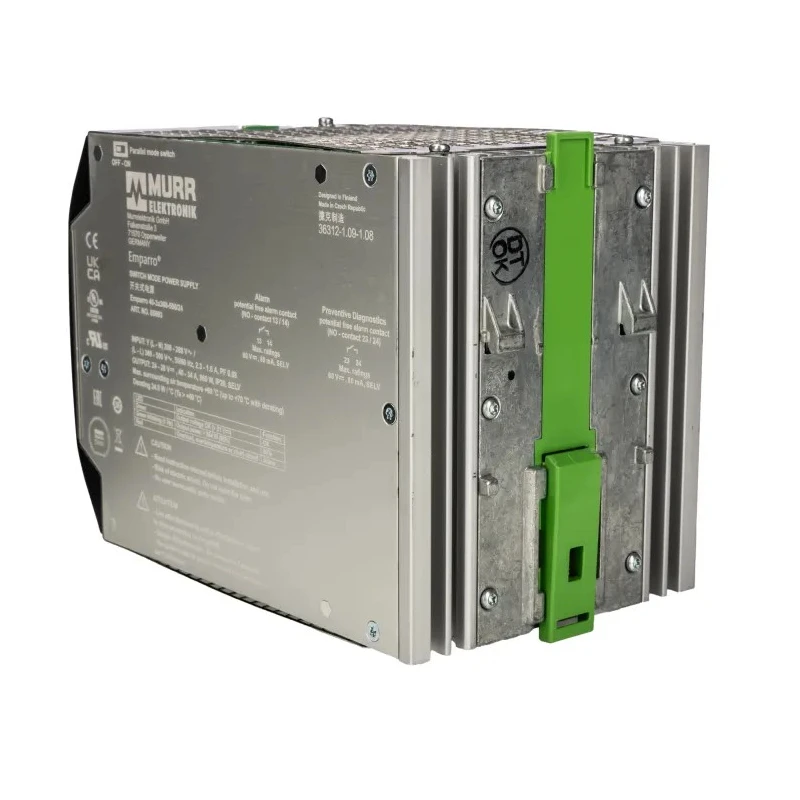

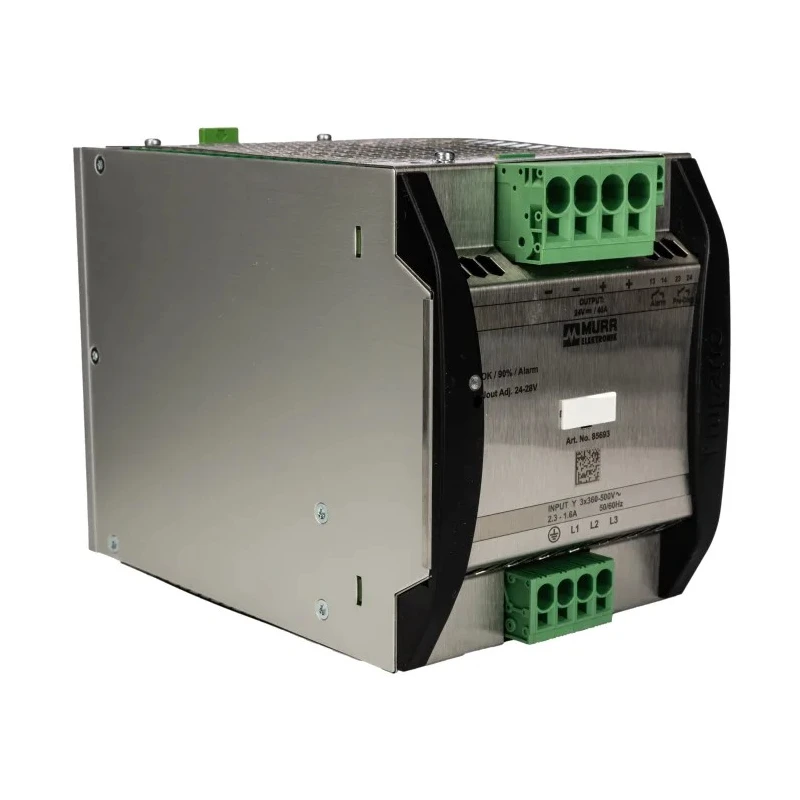

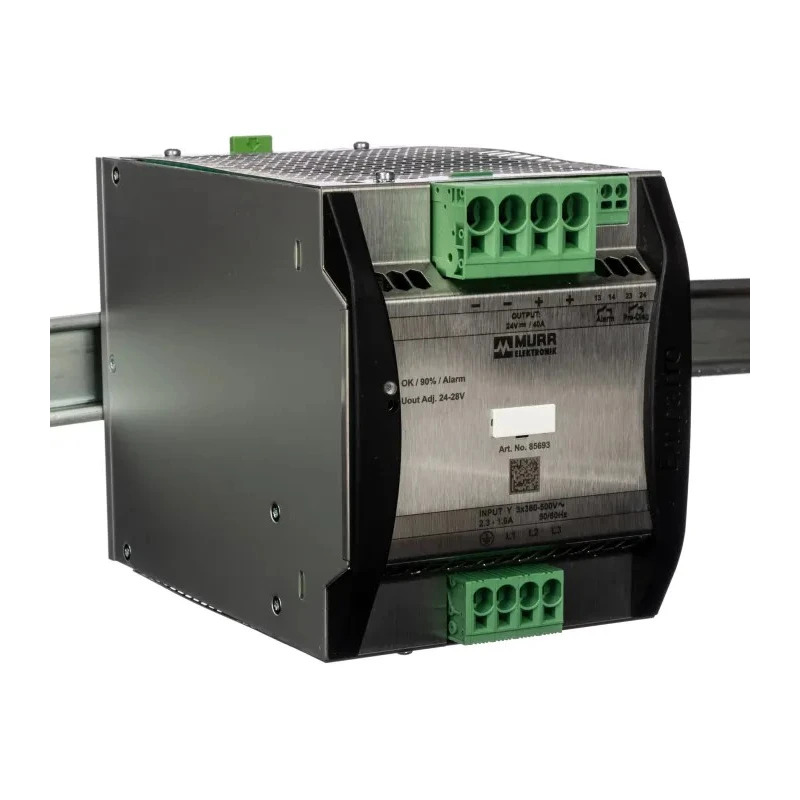

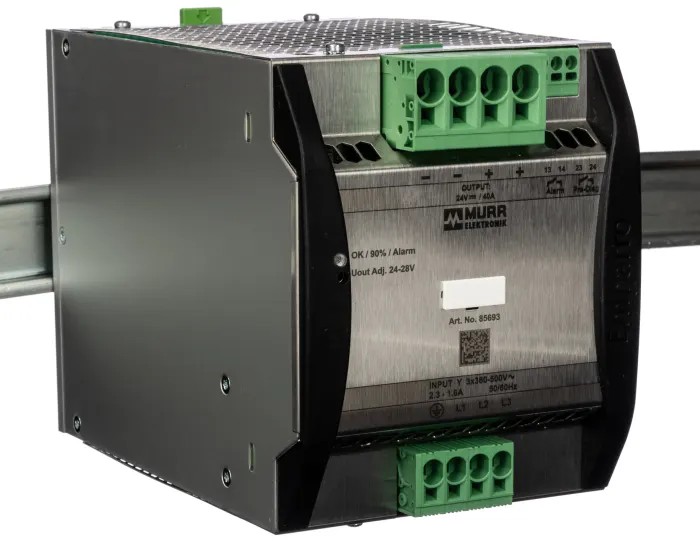

Murrelektronik Limited EMPARRO Switched Mode DIN Rail Power Supply 572V AC/DC Input 28V DC, 40 A Output 960W 85693

Murrelektronik Limited 85693 EMPARRO Switched Mode DIN Rail Power Supply is a robust and highly efficient unit engineered for industrial power distribution systems. It supports a universal AC/DC input voltage between 324V and 572V AC (including 2 or 3 phases) and 450V to 745V DC, providing stable power conversion for diverse manufacturing, factory automation, and electro-mechanical apparatus applications.

This power supply unit delivers a rated output current of 40 A at 28V DC and a maximum output power of 960W. It features a power boost function that enables delivering up to 150% of nominal current for at least 4 seconds, allowing the easy starting of large loads without additional power supplies.

The EMPARRO series provides high operational efficiency of up to 93.7%, reducing energy costs and heat dissipation. Constructed in a sturdy metal enclosure with protective EMC characteristics, it ensures reliable operation in demanding industrial environments. Operating temperature ranges from -40°C to 70°C make it suitable for harsh ambient conditions.

The device includes integrated device protection, LED status indicators for quick diagnostics, and push-in terminals for secure and convenient wiring. The output voltage is adjustable from 24V DC to 28V DC with current limiting functions ensuring safety under overload conditions. It maintains ripple factor and noise at around 20 mV, ensuring power quality consistent with sensitive industrial equipment requirements.

Typical applications include factory automation systems, industrial control systems, semiconductor fabrication equipment, and general electro-mechanical apparatus. This power supply complies with standards and approvals including EN 60950-1, EN 61000-3-2, cULus, SEMI F47, EN 55011 B, EN 61204-3, EN 60715, and cULus recognition.

This power supply features a wide input voltage range between 324V AC and 572V AC, supporting 2- or 3-phase power. It offers up to 150% power boost capacity for at least 4 seconds to handle high starting loads. The device operates efficiently with up to 93.7% efficiency and minimum power loss.

Designed for harsh environments, it supports an operating temperature range from -40°C to 70°C. Metal housing provides EMI protection, and push-in terminals facilitate easy wiring. Integrated LED status indicator enables clear operational monitoring.

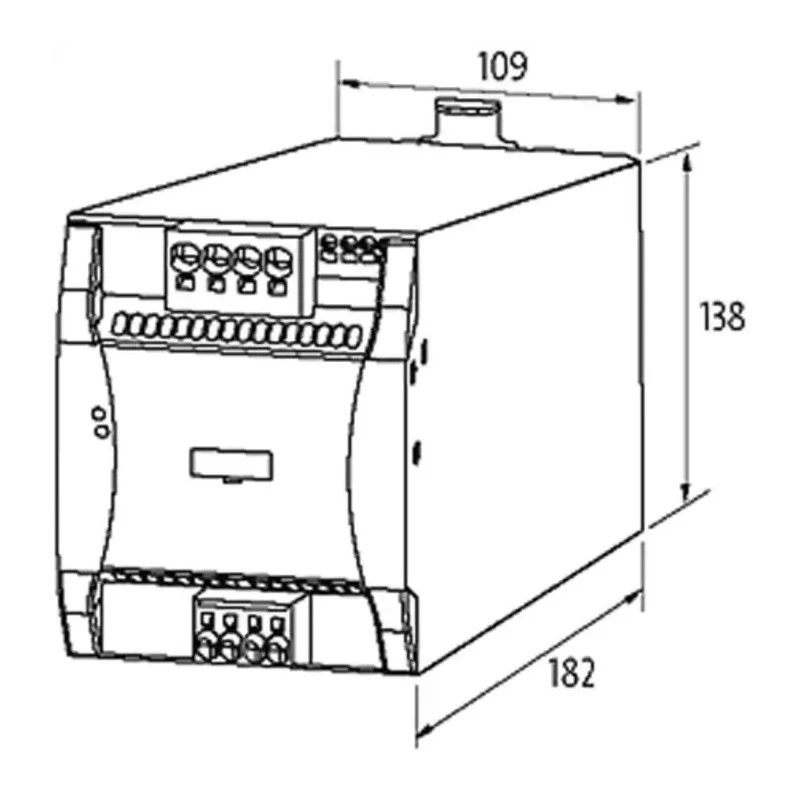

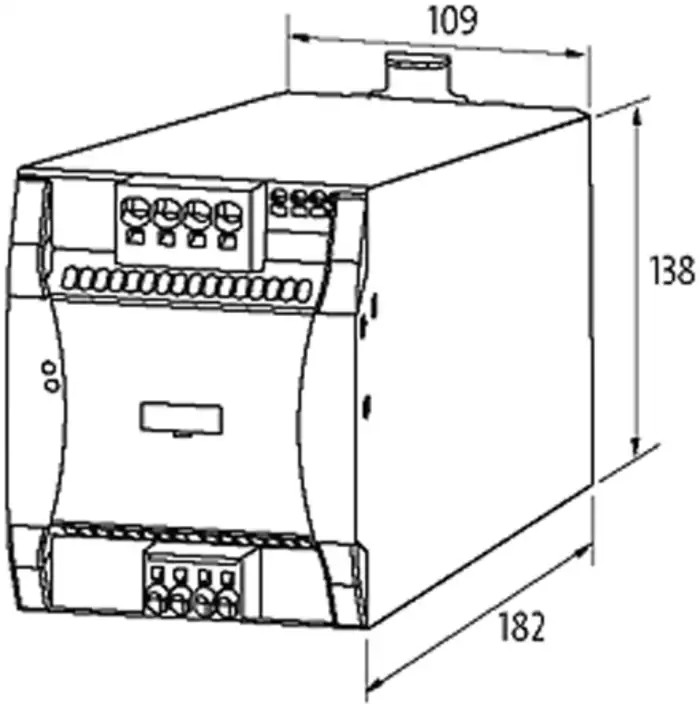

Provides adjustable output voltage ranging from 24V DC to 28V DC with constant current protection during overload. Slim design with dimensions: Height 138mm, Width 109mm, Depth 182mm for compact DIN rail installation. Discover more high-quality Power Supply solutions at EnvMart to optimize your industrial and automation projects.
