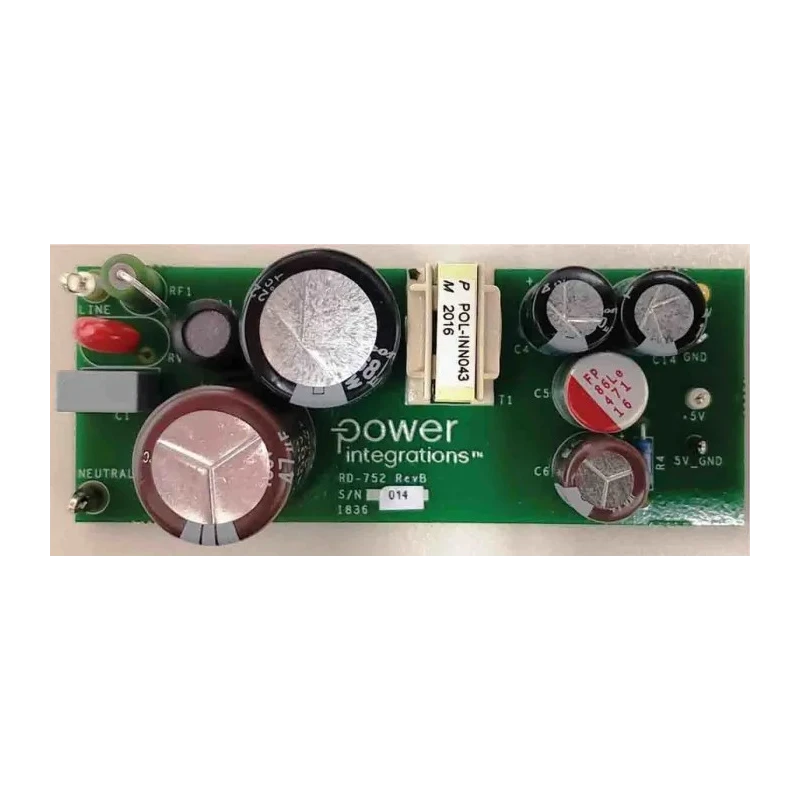

Power Integrations Non-Isolated Flyback Converter Development Kit Dual Output 5 V 1.2 A and 12 V 0.75 A RDK-752
Specifications
| Country of Origin | India |
|---|---|
| Brand | Power Integrations |
| Model | RDK-752 |
| For Use With | Embedded Power Supply |
| Kit Classification | Development Kit |
| Featured Device | INN3673C-H601 |
| Kit Name | RDR-752 |
Key Features
- Non-isolated flyback converter design for efficient power management.
- Wide input voltage range from 85 VAC to 277 VAC supports versatile use.
- Utilizes INN3673C-H601 from the InnoSwitch3-EP family of devices.
- Less than 50 mW no-load power consumption across input range.
- Integrated 725 V rated power MOSFET ensures robust performance.
- Over-temperature protection with hysteretic recovery enhances reliability.
- Automatic restart for output short-circuit and open-loop protection.
Product Description
Power Integrations RDK-752 Flyback Converter Development Kit is engineered for embedded power supply applications requiring reliable dual voltage outputs. The kit features a non-isolated flyback converter providing 5 V output at 1.2 A and 12 V output at 0.75 A from a broad input voltage range of 85 VAC to 277 VAC. The design incorporates the INN3673C-H601 device from the InnoSwitch3-EP series, delivering efficient power conversion with minimal standby power draw of less than 50 mW.
This development kit uses a highly integrated solution including a 725 V rated power MOSFET for enhanced robustness and durability. It also includes over-temperature protection with hysteretic recovery to automatically manage thermal stress and safeguard the circuitry. The auto-restart feature ensures functional protection against output short circuits and open-loop conditions, improving system stability and safety.
Ideal for development and prototyping in embedded Power Supply projects, this kit supports industrial and commercial electronics applications requiring efficient dual-voltage power sources. Its broad input voltage capability and integrated device technology make it suitable for a variety of designs needing reliable and compact power conversion circuits.
Non-isolated flyback converter design for efficient power management. Wide input voltage range from 85 VAC to 277 VAC supports versatile use. Utilizes INN3673C-H601 from the InnoSwitch3-EP family of devices. Less than 50 mW no-load power consumption across input range.
Integrated 725 V rated power MOSFET ensures robust performance. Over-temperature protection with hysteretic recovery enhances reliability. Automatic restart for output short-circuit and open-loop protection.
This development kit enables electronics engineers and designers to prototype and test embedded power supplies effectively, supporting a broad range of industrial controls, consumer electronics, and automation projects. Explore more development kits and embedded power solutions on EnvMart to optimize your power electronics design workflow.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This development kit provides a dual output of 5 V at 1.2 A and 12 V at 0.75 A.
It supports a wide input voltage range from 85 VAC to 277 VAC.
The no-load power consumption is less than 50 mW across the input voltage range.
It includes over-temperature protection with hysteretic recovery and automatic restart for output short-circuit and open-loop protection.
This kit is ideal for development and prototyping in embedded power supply projects, supporting industrial and commercial electronics applications.
It features a non-isolated flyback converter design for efficient power management.
The country of origin is India.
It is classified as a development kit.
It manages thermal stress through over-temperature protection with hysteretic recovery, which helps safeguard the circuitry.
The kit name associated with this development kit is RDR-752.
