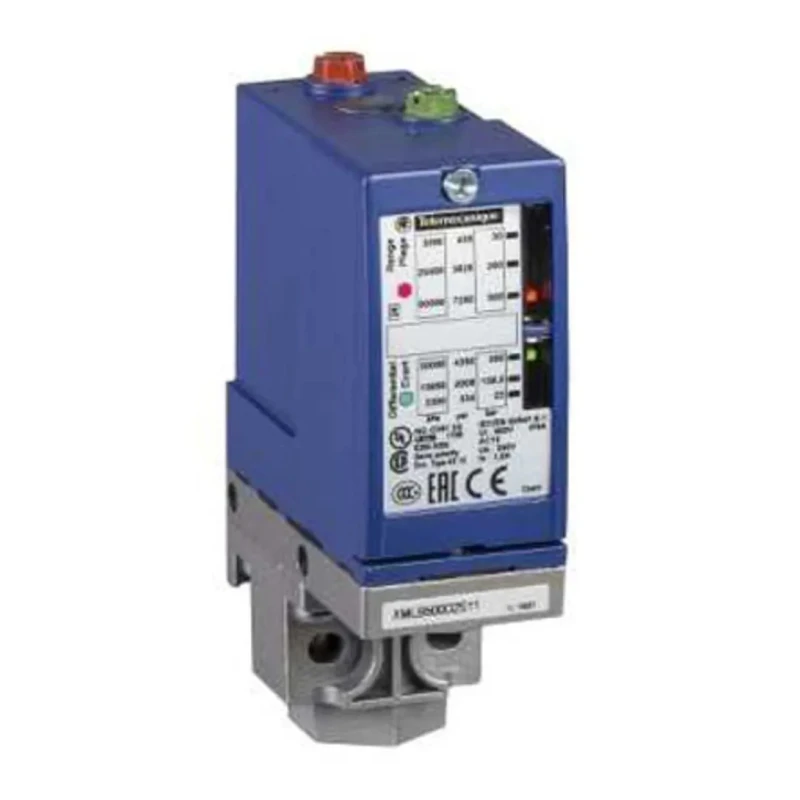

Telemecanique Sensors XMLB Series Pressure Switch 0 bar to 10 bar, Zinc Alloy Housing, Panel Mount, Model XMLB010C2S11

Telemecanique Sensors XMLB010C2S11 Pressure Switch from the XMLB Series offers precise and reliable pressure monitoring with a measurement range of 0 to 10 bar. Featuring a robust zinc alloy housing and panel mount design, this switch is engineered for durable performance in industrial and automation environments. It is suitable for monitoring hydraulic oils, fresh water, sea water, air, steam, corrosive fluids, and viscous liquids.

This Pressure Switch incorporates an adjustable differential to detect a single pressure or vacuum threshold accurately. Equipped with one normally open (NO) and one normally closed (NC) snap acting contact, it provides reliable switching action for control circuits. The device supports a maximum supply voltage of 240V AC and complies with multiple international standards including LROS, UL, CSA, EN, CCC, CE, EAC, and BV.

The operating temperature range spans from -25 °C up to +70 °C, while the maximum operating temperature can reach 158 °C, allowing its use in demanding industrial scenarios. The switch features IP65 ingress protection with a plug-in connector and IP66 rating with terminal connections, protecting it against dust and water ingress. Media connection is via a 1/4" NPT thread and conduit connection via a 1/2" NPT fitting, ensuring compatibility with common piping systems.

Designed to accommodate up to 120 operations per minute for diaphragm types and 60 operations per minute for piston types, it supports high cycle applications. This product is manufactured in Morocco and is ideal for applications in industrial automation, HVAC systems, water treatment, manufacturing process control, and fluid monitoring.

Constructed with corrosion resistant zinc alloy housing. Panel mount with IP66 and IP65 rated enclosure. Adjustable differential for accurate threshold detection. Equipped with 1 NO and 1 NC snap acting contacts. Operating temperature range: -25 °C to +70 °C.

Media connections: 1/4" NPT; conduit connections: 1/2" NPT. Maximum supply voltage: 240V AC. Complies with global standards LROS, UL, CSA, EN, CCC, CE, EAC, BV. Operating rate up to 120 operations/min for diaphragm. Manufactured origin: Morocco.
