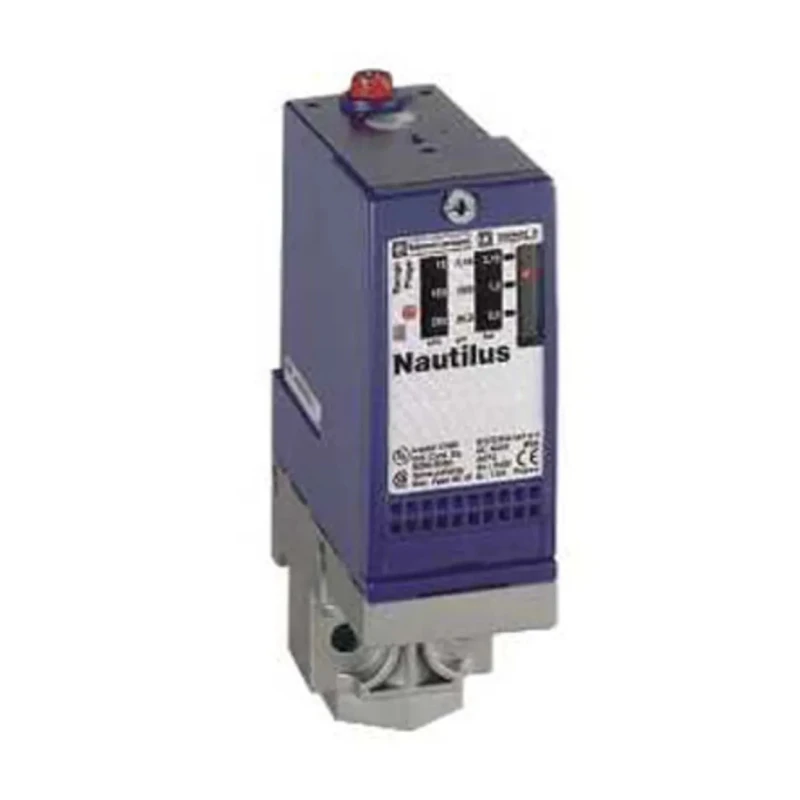

Telemecanique Sensors XMLA Series Pressure Switch 0 bar to 20 bar, 240V AC, Zinc Alloy Housing XMLA020A2S13
Specifications
| Country of Origin | Morocco |
|---|---|
| Accuracy | 2 % |
| Brand | Telemecanique Sensors |
| Temperature range | - 25 to +70 °C |
| Model | XMLA020A2S13 |
| IP Rating | IP65, IP66 |
| Mount Type | Panel Mount |
| Housing Material | Zinc Alloy |
| Series | XMLA |
| Maximum Operating Temperature | 158°C |
| Enclosure Rating | IP65 with plug-in connector, IP66 with terminal connections |
| Standards/Approvals | CSA, UL, EN, LROS, BV, CCC, CE, EAC |
| Maximum Pressure Measurement | 20bar |
| Minimum Pressure Measurement | 0bar |
| Maximum Supply Voltage | 240V ac |
| Operating rate | up to 120 operations / min. for diaphragm and 60 / min. for piston |
| Media connection | 1/4" NPT |
| Conduit connection | 1/2" NPT |
Key Features
- Designed with zinc alloy housing ensuring robustness and long service life.
- Operates with a maximum supply voltage of 240V AC suitable for industrial applications.
- Features a fixed differential and external pressure setting window for precise pressure control.
- Equipped with 1 normally open and 1 normally closed snap acting contacts for reliable switching.
- Suitable for use with hydraulic oils, sea water, air, steam, corrosive fluids, and viscous products.
- Panel mount type with IP65 and IP66 enclosure ratings offers excellent protection against dust and water ingress.
- Operating temperature range spans from -25°C to +70°C accommodating diverse environments.
- Media connection is 1/4" NPT and conduit connection is 1/2" NPT ensuring compatibility with standard fittings.
Product Description
Telemecanique Sensors XMLA020A2S13 is a high-performance pressure switch engineered for precise pressure monitoring and control in industrial and automation environments. It supports a pressure measurement range from 0 bar to 20 bar and operates reliably at a maximum supply voltage of 240V AC.
The robust zinc alloy housing protects internal components, making the switch suitable for use in harsh conditions involving hydraulic oils, fresh and sea water, air, steam, corrosive fluids, and viscous substances. Its fixed differential characteristic and external pressure setting window allow accurate single-threshold detection tailored to specific requirements.
The switch features 1 normally open and 1 normally closed snap acting contacts, providing reliable electrical switching performance. It is designed for panel mounting with IP65 rating when using the plug-in connector and IP66 rating with terminal connections, ensuring excellent protection against dust and water ingress.
Operating temperature ranges from -25°C to +70°C allows deployment in diverse industrial sites. The media connection of 1/4" NPT and conduit connection of 1/2" NPT ensure compatibility with standard piping and electrical conduits.
Telemecanique Sensors XMLA020A2S13 is capable of up to 120 operations per minute for the diaphragm version and up to 60 operations per minute for the piston version, supporting demanding applications with frequent switching cycles.
This pressure switch is ideal for use in industrial automation, hydraulic system control, fluid handling, HVAC systems, and other commercial or manufacturing environments requiring reliable pressure monitoring and control.
Designed with zinc alloy housing ensuring robustness and long service life. Operates with a maximum supply voltage of 240V AC suitable for industrial applications. Features a fixed differential and external pressure setting window for precise pressure control.
Equipped with 1 normally open and 1 normally closed snap acting contacts for reliable switching. Suitable for use with hydraulic oils, sea water, air, steam, corrosive fluids, and viscous products. Panel mount type with IP65 and IP66 enclosure ratings offers excellent protection against dust and water ingress.
Operating temperature range spans from -25°C to +70°C accommodating diverse environments. Media connection is 1/4" NPT and conduit connection is 1/2" NPT ensuring compatibility with standard fittings. High operating rate capability up to 120 operations per minute for diaphragm model and 60 per minute for piston model.
Explore the range of Telemecanique Sensors Pressure Switches on EnvMart for precise and reliable industrial pressure control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a pressure measurement range from 0 bar to 20 bar.
The maximum supply voltage is 240V AC, making it suitable for industrial applications.
It is suitable for use with hydraulic oils, sea water, air, steam, corrosive fluids, and viscous products.
The pressure switch has an IP65 rating with a plug-in connector and an IP66 rating with terminal connections, providing protection against dust and water ingress.
The operating temperature range spans from -25°C to +70°C, accommodating diverse environments.
It features a fixed differential and an external pressure setting window for precise pressure control.
This model is designed for panel mounting.
The media connection is 1/4" NPT and the conduit connection is 1/2" NPT, ensuring compatibility with standard fittings.
It can operate up to 120 operations per minute for the diaphragm version and up to 60 operations per minute for the piston version.
The housing is made of zinc alloy, ensuring robustness and longevity.
It is certified to various standards including CSA, UL, EN, LROS, BV, CCC, CE, and EAC.
It is equipped with 1 normally open and 1 normally closed snap acting contacts for reliable switching.
