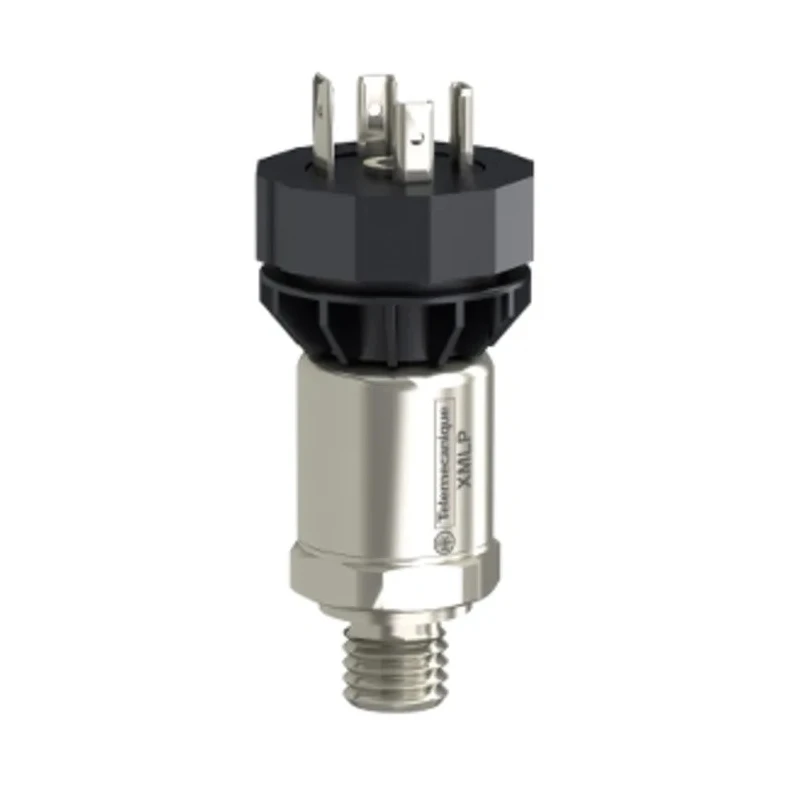

Telemecanique Sensors XMLP Series Pressure Switch 0 bar to 400 bar, 5V DC, Analogue Output XMLP400BC11F

Telemecanique Sensors XMLP400BC11F Pressure Switch is a high-precision industrial sensor designed for pressure measurements ranging from 0 bar to 400 bar. It operates on a 5V DC power supply and provides an analogue output signal, making it highly suitable for applications requiring continuous pressure monitoring.

The switch features high accuracy with tolerances of ±0.5 % and 0.1 %, ensuring reliable data acquisition in demanding environments. Its housing is made from rugged 316L stainless steel combined with fluoropolymer materials, offering excellent resistance to corrosion and abrasive media such as air, fresh water, gas, hydraulic oil, and refrigeration fluids.

Engineered for durability, the device is rated with IP65 and IP67 ingress protection, providing robust defense against dust and water ingress. It can withstand operation temperatures up to 85°C, suitable for a wide range of industrial and HVAC applications.

Mounting is facilitated via a screw type mount, guaranteeing stability during operation. The sensor adheres to stringent industry standards and approvals including cULus, CE, RCM, and EAC, validating its safety and quality credentials.

The XMLP series differentiates between low and high-pressure models by integrating ceramic pressure measuring cells for low pressures and metal pressure measuring cells welded to the stainless steel transmitter body for pressures equal or above 9 bar. This model, rated for 400 bar, utilizes the metal pressure cell design to ensure precise and lasting performance.

Features high accuracy with ±0.5 %, 0.1 % tolerance. Constructed with durable 316L stainless steel and fluoropolymer housing materials. Suitable for media such as air, fresh water, gas, hydraulic oil, and refrigeration fluids.

IP65 and IP67 rated for water and dust resistance ensuring robust operation. Operates effectively up to a maximum temperature of 85°C. Screw mount type facilitates secure and convenient installation. Complies with international standards including cULus, CE, RCM, and EAC.

This Pressure Switch is widely applicable in industrial automation, HVAC systems, manufacturing processes, water treatment, hydraulic control, and refrigeration monitoring. It provides reliable and accurate pressure measurements critical for operational safety and system efficiency.
