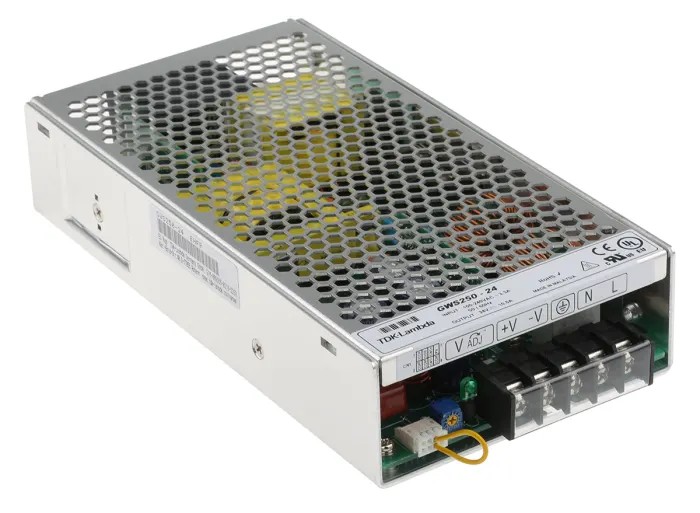

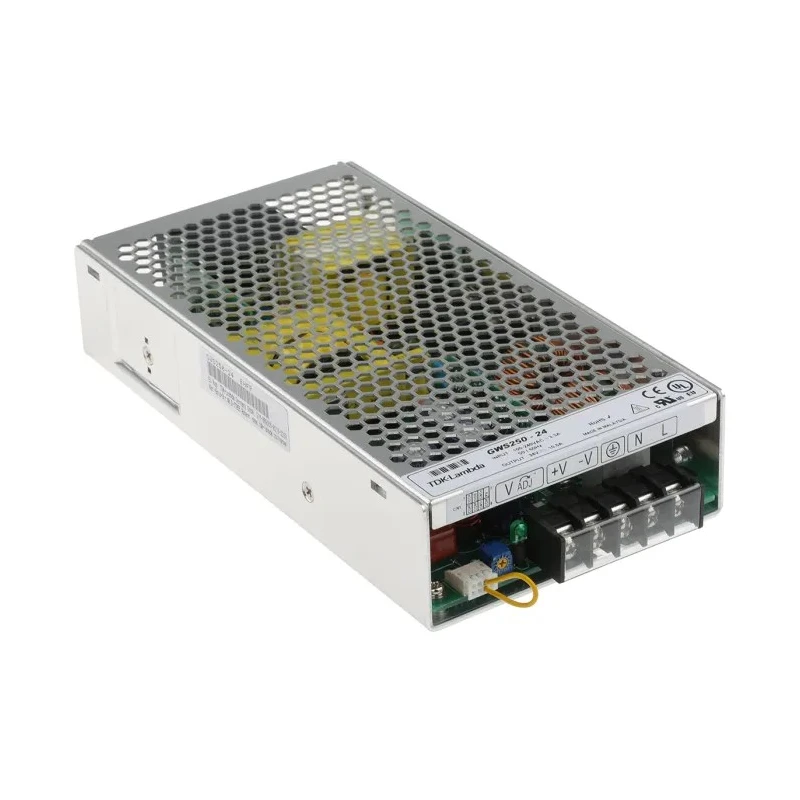

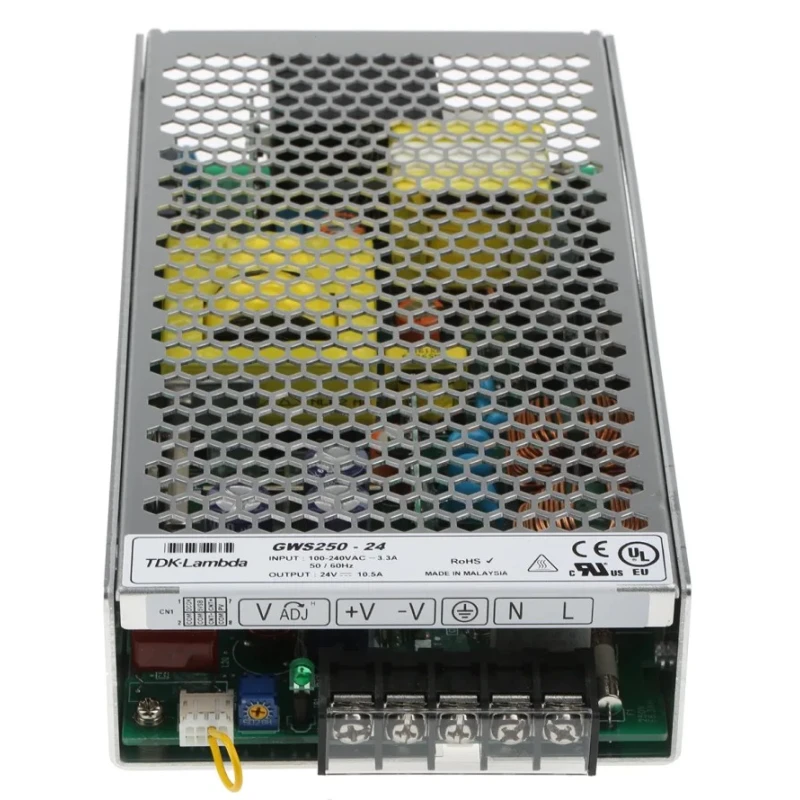

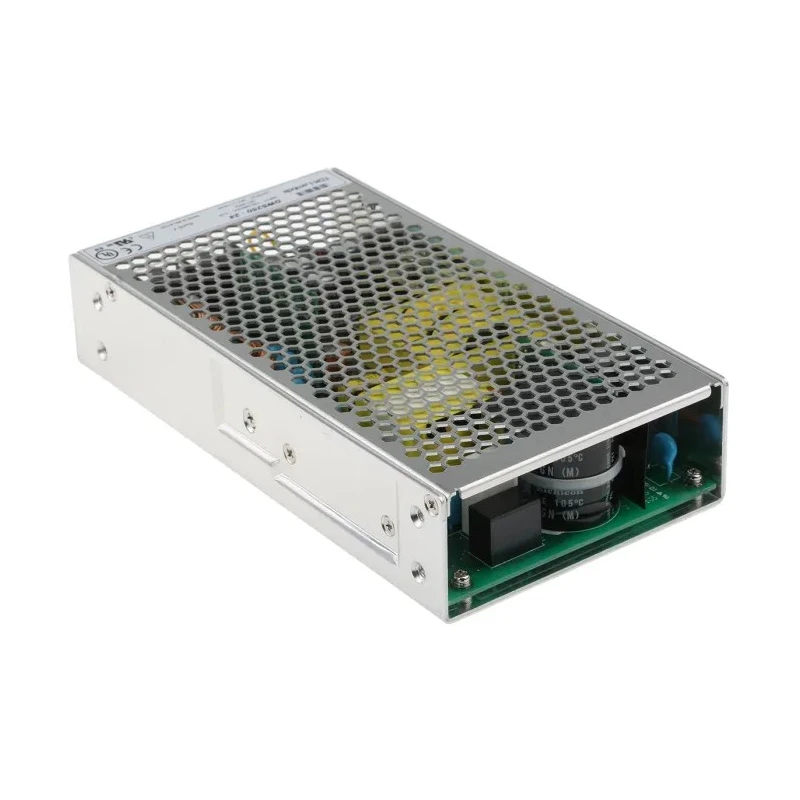

TDK-Lambda High Efficiency 252W Switching Power Supply 24V DC Output, Universal AC/DC Input GWS250-24
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | TDK-Lambda |
| Power | 252W |
| Efficiency | 92% |
| Length | 198mm |
| Model | GWS250-24 |
| Depth | 41mm |
| Gross Weight | 850g |
| Width | 105mm |
| Mount Type | Chassis |
| Series | GWS250 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 373, 265V dc |
| Maximum Output Voltage | 24V dc |
| SMPS Output Current | 10.5A |
| Minimum Input Voltage | 85V ac |
Key Features
- Universal input voltage range supports 85VAC to 264VAC and 120VDC to 373VDC.
- High efficiency up to 92% minimizes energy losses.
- Compact chassis mount with dimensions 198mm x 105mm x 41mm.
- Convection cooled design enables silent operation without fans.
- Includes overtemperature and overcurrent protection for safety.
- Remote ON/OFF control and DC GOOD signal output included.
- Wide operating temperature from -25°C to 70°C supports varied environments.
- Applicable for industrial control, digital signage, LED displays, and communication equipment.
Product Description
TDK-Lambda GWS250-24 is a highly efficient 252 watt switching power supply designed for industrial and commercial applications requiring reliable 24V DC power output. It features a universal AC input range from 85V AC to 264V AC and DC input from 120V DC to 373V DC for flexible deployment in diverse power environments. The single output power supply delivers 10.5A current with a compact chassis mount footprint of 198mm length, 105mm width, and a low profile height of 41mm.
This power supply is convection cooled, which eliminates the need for fans and reduces maintenance. It incorporates advanced protections against overcurrent and overtemperature conditions to enhance safety and durability. The product includes remote ON/OFF control functionality and DC GOOD signal indication for system monitoring.
Operating reliably in ambient temperatures ranging from -25°C to 70°C, the GWS250-24 suits industrial environments, LED information and signage displays, traffic controller units, automated kiosks, testing and measurement devices, communication infrastructures, and entertainment systems.
The device meets stringent international certifications such as IEC 61000-4-2, IEC/UL/CSA/EN 62368-1, EN 55011-B, EN 55032-B, FCC, and CE & UKCA approvals, ensuring compliance with global safety and electromagnetic compatibility norms.
The compact size, high power density, and low standby power consumption below 0.5W make the TDK-Lambda GWS250-24 a suitable choice for energy-efficient applications requiring stable and clean DC power supply outputs.
Universal input voltage range supporting multiple power environments. High efficiency of up to 92% to reduce power loss. Convection cooled chassis mount with compact dimensions. Overcurrent and overtemperature protections enhance reliability.
Remote ON/OFF and DC GOOD signal for remote system control and monitoring. Explore more power supplies and switching Power Supply options at EnvMart to meet your industrial power conversion needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The efficiency rating of this power supply is up to 92%, which minimizes energy losses during operation.
The GWS250-24 provides a 24V DC output with a maximum output current of 10.5A.
The compact chassis mount dimensions are 198mm in length, 105mm in width, and 41mm in height.
The GWS250-24 operates reliably in ambient temperatures ranging from -25°C to 70°C.
This model features a convection cooled design, which eliminates the need for fans and allows for silent operation.
It includes overtemperature and overcurrent protection to enhance safety during operation.
Yes, the GWS250-24 includes remote ON/OFF control and a DC GOOD signal output for system monitoring.
It is applicable for industrial control, digital signage, LED displays, and communication equipment.
The gross weight of this power supply is 850g.
The GWS250-24 complies with international certifications such as IEC 61000-4-2, IEC/UL/CSA/EN 62368-1, EN 55011-B, EN 55032-B, FCC, and CE & UKCA approvals.
This power supply is designed for chassis mounting.
