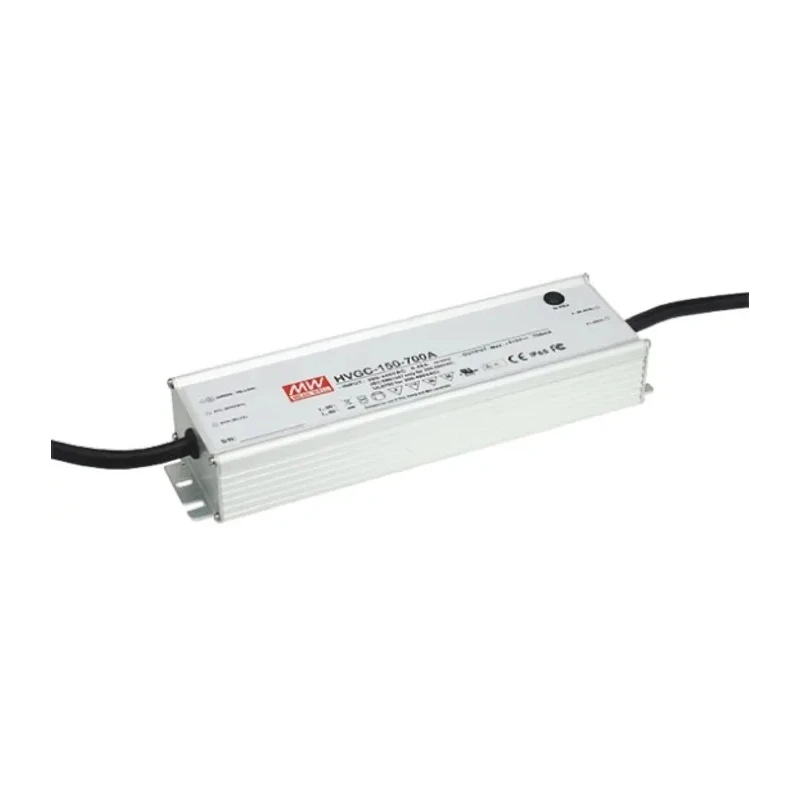

MEAN WELL 150W IP67 Dimmable Constant Current 5 Output LED Driver 42V, 428V, 350mA with 1 to 10 V PWM Resistance Dimming
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | MEAN WELL |
| Model | IP67 |
| IP Rating | IP67 |
| Mount Type | Screw |
| Series | HVGC-150 |
| Configuration | Enclosed |
| Sub Type | LED Driver |
| Operating Modes | Constant Current |
| Number of outputs | 5 |
| Terminal type | Wire |
| Maximum Output Power | 149.8W |
| Input Voltage | 180, 528, 254, 747V ac |
| Output Voltage | 42, 428V |
| Power Dissipation | 149.8W |
| Standards/Approvals | CE, UL, CB, SELV |
| Dimming Operation | 1 to 10 V PWM Resistance |
| Primary Type | AC-AC |
| Driver Current | 350mA |
Key Features
- Wide input voltage range from 180 to 528 Vac for versatile use.
- Built-in active Power Factor Correction (PFC) ensures efficient power use.
- High efficiency of up to 91% reduces energy loss.
- IP67 ingress protection suitable for indoor and outdoor installations.
- 5 output channels suitable for LED lighting and street lighting applications.
- Protections against short circuit, over voltage, and over temperature ensure durability.
- Cooling achieved by free air convection without the need for a fan.
- OCP point adjustable through output cable or internal potentiometer.
Product Description
MEAN WELL HVGC-150-350B is a high-performance 150W IP67 rated LED driver designed for constant current operation with 5 independent outputs delivering voltages of 42V and 428V at 350mA. It supports 1 to 10 V PWM resistance dimming to allow smooth brightness control.
With a wide AC input voltage range of 180 to 528 Vac, this enclosed screw mounting driver suits a broad range of applications including LED lighting and street lighting. The unit incorporates a built-in active power factor correction (PFC) and a two-stage PFC function, achieving high energy efficiency up to 91%.
The IP67 rating ensures suitability for dry, damp, and wet locations, protecting the device from dust and water ingress, making it ideal for indoor and outdoor industrial lighting installations. Cooling is provided via free air convection without reliance on any fans, resulting in silent operation and reduced maintenance.
Multiple built-in protections including short circuit, over voltage, and over temperature safeguards enhance reliability. The driver current is precisely controlled at 350mA in constant current mode, which is critical for consistent LED performance and longevity.
Wide input voltage range of 180 - 528 Vac supports versatile power supply configurations. Active PFC and high efficiency up to 91% reduce energy consumption. IP67 waterproof and dustproof design suitable for challenging environments.
Five output channels facilitate powering multiple LED strings simultaneously. Supports three-in-one dimming: 0-10 Vdc, 10 V PWM, and resistance-based dimming. Enclosed configuration with screw mounting for secure installation.
Compliant with CE, UL, CB, and SELV for international safety requirements. Operation assured under constant current mode with adjustable OCP setting. Ideal for industrial, commercial, street, and architectural LED lighting applications.
Manufactured in Taiwan, Province Of China, ensuring quality manufacturing standards. Explore the comprehensive range of LED Drivers at EnvMart to find components that best fit your industrial and commercial lighting projects.
