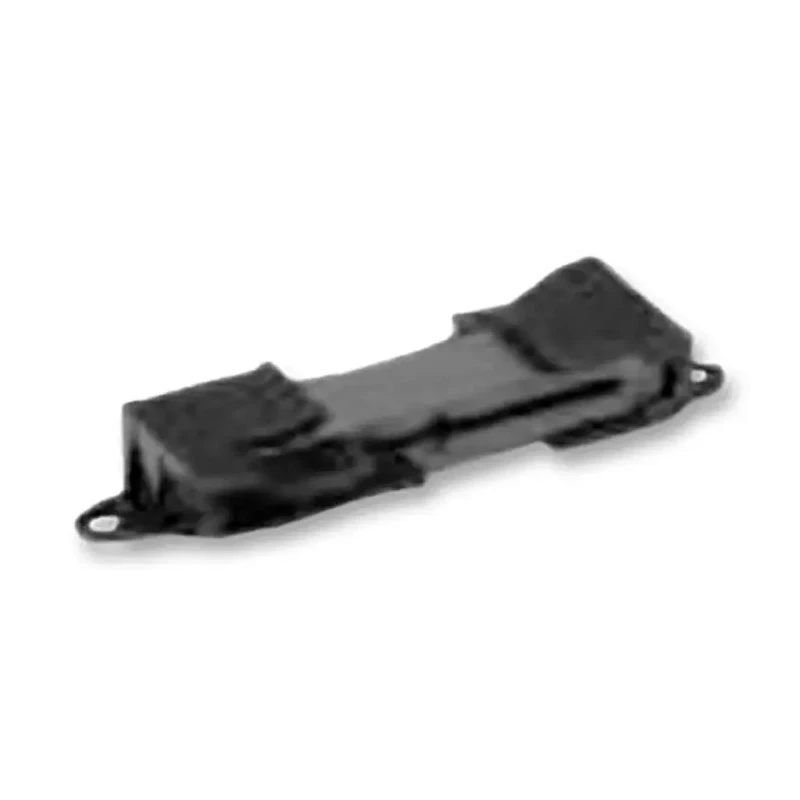

KEMET Ferrite Openable Flat Cable Ferrite Split Core 16 Max. Wires 2.6 mm Internal Height 25.4 mm Internal Width ESD-FPD-16-1

Free Delivery in India | Lowest Global Shipping Charges

KEMET Ferrite Openable Flat Cable Ferrite Split Core 16 Max. Wires 2.6 mm Internal Height 25.4 mm Internal Width ESD-FPD-16-1

Name: KEMET Ferrite Openable Flat Cable Ferrite Split Core 16 Max. Wires 2.6 mm Internal Height 25.4 mm Internal Width ESD-FPD-16-1
Brand: KEMET
SKU: 244594
Price: 6.69 USD
Availability: InStock



Category Ferrite Core Brand KEMET Condition New

Specifications

Country of Origin	India
Brand	KEMET
Material	Ferrite
Model	ESD-FPD-16-1
Sub Type	Split Core
Internal Width	25.4mm
Internal Height	2.6mm
External Width	37mm
External Depth	12.7mm
External Height	10mm
Standards/Approvals	RoHS
Maximum Frequency	300MHz
Impedance at 100 MHz	90Ω
Maximum Number of Wires	16

Key Features

The split core design enables easy installation on flat cables without disconnecting the connectors.
Made from high-quality ferrite material to effectively reduce electromagnetic interference.
Features a stainless steel clamp ensuring secure attachment and durability.
Internal dimensions are 25.4 mm width and 2.6 mm height to accommodate specific cable sizes.
Capable of attenuating frequencies up to 300 MHz with 90 ohms impedance at 100 MHz.
External size measures 37 mm width, 12.7 mm depth, and 10 mm height for compact fitting.
Compliant with RoHS standards ensuring environmental safety and reliability.
Suitable for applications including computer technology, industrial controllers, medical devices, and office machinery.

Product Description

KEMET ESD-FPD-16-1 Ferrite Openable Flat Cable Ferrite Split Core is a specialized EMI filter component designed for use in consumer electronic flat cables with a maximum of 16 wires. This split core ferrite features a durable stainless steel clamp allowing it to be securely attached to cables without the need for disconnection, facilitating ease of installation and maintenance.

The ferrite material provides excellent electromagnetic interference attenuation, particularly up to frequencies of 300 MHz, with an impedance rating of 90 ohms at 100 MHz. Its internal dimensions of 25.4 mm width and 2.6 mm height accommodate flat cables precisely, while the external dimensions of 37 mm width, 12.7 mm depth, and 10 mm height ensure a compact form factor suitable for tight installations.

The outer housing protects the Ferrite Core halves from damage and prevents accidental opening after locking the snap closure. This design ensures reliability in various industrial and commercial environments including computer technology, industrial automation controllers, medical engineering equipment, and office machines.

Installation is simplified with the split core's snap lock design enabling it to fit cables of varying diameters. Optional fixing can be done using glue or cable ties as per application requirements. The product complies with RoHS regulations ensuring minimal environmental impact.

The split core design enables easy installation on already connected cables. High attenuation performance reduces electromagnetic interference effectively. Stainless steel clamp provides secure and reliable fastening. Precisely sized internal dimensions to fit flat cables with up to 16 wires.

Compact external dimensions for versatile application in confined spaces. Meets RoHS standards ensuring environmental compliance. Applicable for consumer electronics, industrial, medical, and office equipment. Explore more high-quality electronic components from KEMET in the Electronics Components category at EnvMart for professional industrial and laboratory use.
