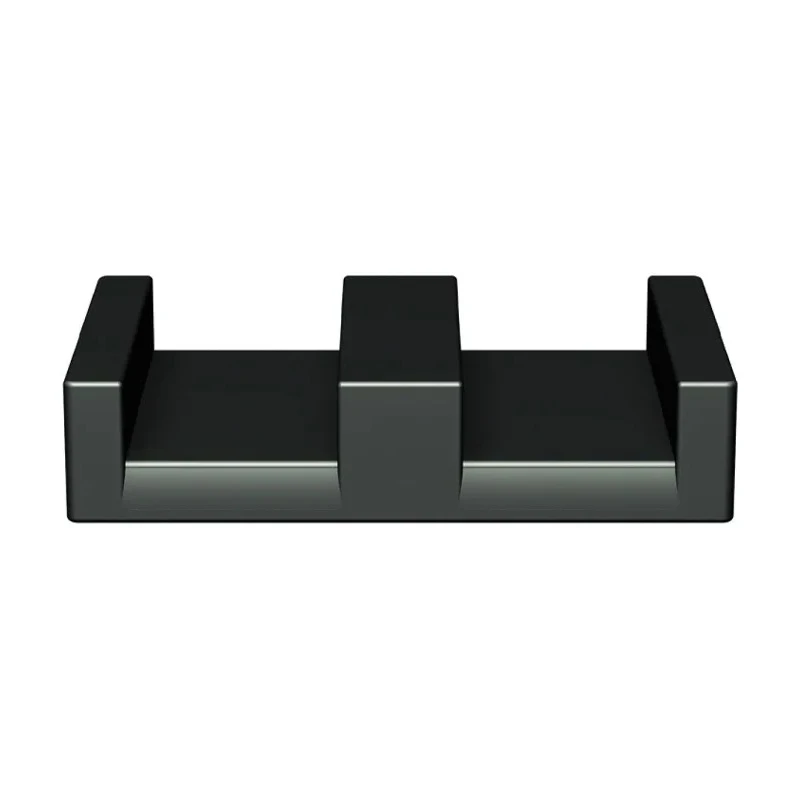

TDK Transformer Ferrite Core ELP 32/6/20 N97 Material 5700 nH AL Rating B66287G0000X197

TDK B66287G0000X197 Transformer Ferrite Core is engineered for high-performance planar transformer applications with an AL rating of 5700 nH. Featuring N97 ferrite material known for superior magnetic properties, the ELP 32/6/20 core size offers a balanced low profile design suitable for compact power transformers.

The core dimensions of 31.75 mm in length, 20.35 mm in width, and 6.35 mm in depth enable efficient transformer assembly with optimized magnetic coupling.

This planar E-shape ferrite core design contributes to enhanced thermal dissipation due to its large surface area, making it ideal for applications requiring stable magnetic performance under operational heat loads.

Compliant with IEC 62317-9 standards, this transformer core ensures reliability and conformity with industry specifications in electrical and electronics manufacturing sectors. Manufactured in Czech Republic, the TDK ferrite core exemplifies precision engineering suitable for industrial, power supply, and electronics manufacturing environments.

Core size ELP 32/6/20 provides optimum dimensions for planar transformer design. Constructed with N97 ferrite material ensuring excellent thermal performance. Dimensions include length 31.75 mm, width 20.35 mm, and depth 6.35 mm.

Designed for use specifically with power transformers requiring compact flat cores. Compliant with international standard IEC 62317-9 for transformer cores. Manufactured in Czech Republic ensuring high quality and reliability.

This transformer Ferrite Core is ideal for industrial transformers, power electronics, and manufacturing sectors requiring efficient magnetic components. For detailed exploration of transformer cores and related electronics components, explore the Electronics Components category at EnvMart.
