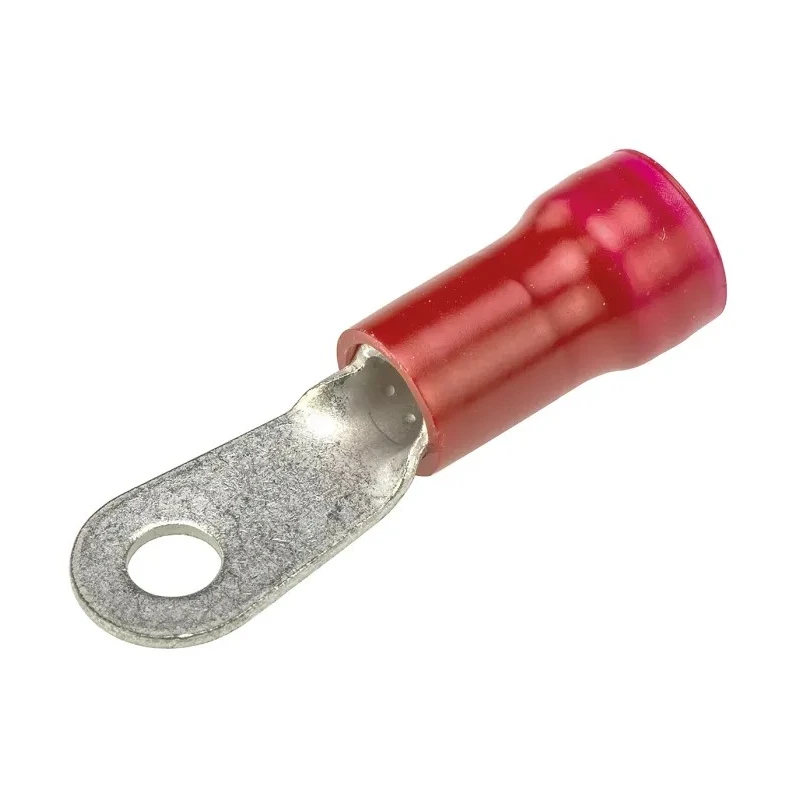

TE Connectivity PLASTI-GRIP Insulated Ring Terminal, Red, M5 Stud Size, 8 AWG, Vinyl Insulation, 40.03mm Length, 52263-1
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| THICKNESS | 1.02mm |
| Model | 52263-1 |
| Insulation | Insulated |
| Overall Length | 40.03mm |
| Contact Material | Copper |
| Series | PLASTI-GRIP |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Vinyl |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 6.6mm² |
| Maximum Wire Size mm² | 10.5mm² |
| Minimum Wire Size AWG | 8AWG |
| Outer Ring Diameter | 10.95mm |
| Inner Ring Diameter | 5mm |
| Stud Size | M5 |
Key Features
- Insulated ring terminal suitable for secure electrical connections.
- Features a M5 stud size compatible with standard equipment fittings.
- Designed for use with 8 AWG wire sizes for optimal conductivity.
- Constructed from tin-plated copper for excellent electrical performance.
- High dielectric strength vinyl insulation sleeve for enhanced safety.
- Serrated inner barrel ensures strong mechanical and electrical contact after crimping.
- Funneled entry design simplifies wire insertion and installation.
- Red color code for easy identification in wiring systems.
Product Description
The TE Connectivity PLASTI-GRIP insulated ring terminal model 52263-1 is engineered to enable robust and secure electrical terminations across a range of industrial and commercial wiring applications. This terminal is designed specifically to accommodate 8 AWG wires and features a convenient M5 stud size, ensuring compatibility with a wide array of hardware and connection points.
The terminal is manufactured using high conductivity copper, which is tin plated to provide excellent electrical performance and resistance to corrosion. The vinyl insulation is 94V-0 rated, providing high dielectric strength and enhanced safety against accidental contact and electrical shorts. Its vibrant red color coding makes identification quick and simple, supporting efficient workflow and error reduction in panel building and field installations.
The inner barrel of the PLASTI-GRIP terminal is serrated, designed to maximize electrical contact and ensure superior tensile strength post-crimping. A funneled entry allows for easy insertion of stripped wire, improving both speed and reliability during installation. With an overall length of 40.03mm and a thickness of 1.02mm, this terminal is robust while remaining easy to handle.
Engineered for demanding environments, the terminal operates at temperatures up to 105°C, supporting both industrial and commercial deployment. The inner ring diameter is 5mm, with an outer ring diameter of 10.95mm, making it suitable for a range of M5 stud-mount connections in control panels, junction boxes, cable assemblies, and power distribution blocks.
Typical use cases include electrical panel manufacturing, control wiring in automation equipment, HVAC installations, maintenance and repairs of power distribution boards, and broader applications across the electronics, manufacturing, and electrical sectors. With its strong design and international construction standards, the TE Connectivity 52263-1 terminal ensures durable, safe, and reliable connections for mission-critical wiring tasks.
Explore more TE Connectivity ring terminals and wiring solutions in the Wire Terminal category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this terminal is 105°C.
This terminal is designed for use with 8 AWG wire sizes, accommodating a minimum wire size of 6.6 mm² and a maximum wire size of 10.5 mm².
The inner ring diameter is 5 mm, while the outer ring diameter is 10.95 mm.
The contact material is made of copper, which is tin plated for enhanced electrical performance.
It features high dielectric strength vinyl insulation, which is 94V-0 rated for safety against electrical shorts.
The overall length of this terminal is 40.03 mm.
The thickness of the terminal is 1.02 mm.
The terminal features an M5 stud size, making it compatible with standard equipment fittings.
This terminal is suitable for applications such as electrical panel manufacturing, control wiring in automation equipment, and HVAC installations.
The terminal has a funneled entry design that simplifies wire insertion and installation.
The serrated inner barrel of the terminal is designed to maximize electrical contact and ensure superior tensile strength post-crimping.
The terminal is manufactured in the United States.
