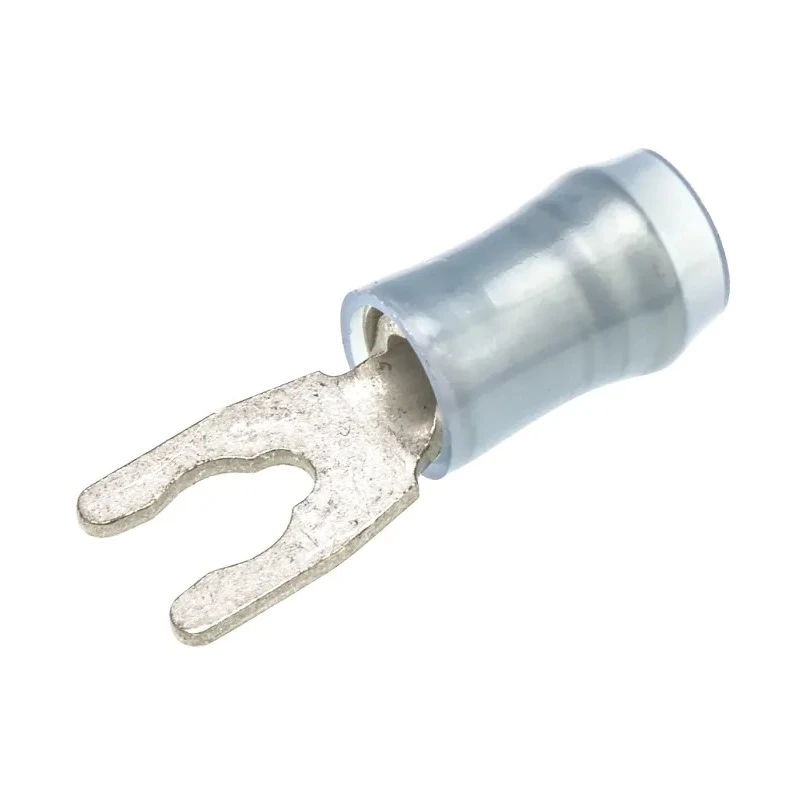

TE Connectivity PIDG Insulated Fork Terminal Nylon Blue 16 AWG to 14 AWG M3.5 Stud Size 52935
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Blue |
| THICKNESS | 0.04in |
| Model | 52935 |
| Width | 0.25in |
| Insulation | Insulated |
| Overall Length | 20.29mm |
| Contact Material | Phosphor Bronze |
| Series | PIDG |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Stud Size | M3.5 |
Key Features
- Constructed with high conductivity copper body for excellent electrical performance.
- Blue nylon insulation sleeve enhances wire insulation support and identification.
- Serrated wire barrel provides maximum contact and tensile strength after crimping.
- Funnelled wire entry allows easy and fast wire insertion during high-speed production.
- Compatible with M3.5 stud size for secure fittings in various applications.
- Nickel-plated phosphor bronze contacts ensure corrosion resistance and durability.
- Overall length of 20.29 mm with 0.25 inch width and 0.04 inch thickness for compact wiring solutions.
- Suitable for use in instruments, control panels, aerospace, motors, and power supplies.
Product Description
TE Connectivity 52935 PIDG Insulated Fork Terminal Nylon Blue is specifically engineered for dependable and uniform crimp connections in electrical wiring projects.
Featuring a precision-formed copper body and barrel with a copper sleeve and colour-coded nylon insulation to enhance wire protection and identification, this fork terminal reliably supports wire bends without compromising insulation integrity or conductor breakage.
The terminal includes serrations inside the wire barrel to maximize contact area and tensile strength post-crimping, ensuring secure electrical connections in demanding environments.
The funnelled wire entry design facilitates quick and efficient wire insertion, ideal for high-volume manufacturing environments. This terminal meets stringent durability requirements suitable for industrial, aerospace, transportation, and commercial electrical wiring systems.
High conductivity copper body enhances electrical performance. Copper sleeve improves insulation support and durability. Serrated barrel ensures strong mechanical and electrical contact after crimping. Colour coded nylon insulation simplifies wire gauge identification and tool selection.
Funnelled wire entry enables rapid wire insertion during assembly. Contact plating with tin provides corrosion resistance. Phosphor bronze contact material ensures durability and conductivity.
Overall dimensions suitable for confined wiring spaces, with an overall length of 20.29 mm, width of 0.25 inch, and thickness of 0.04 inch. The M3.5 stud size compatibility facilitates secure fastening in control panels and appliances.
This terminal provides an excellent solution for applications including instruments, lighting control, motors, aerospace apparatus, panel boxes, power supplies, and transportation equipment wiring.
Choose TE Connectivity PIDG terminals for robust electrical connections meeting or exceeding MIL-T-7928, Type II, Class 1 and 2 standards. Explore our comprehensive range of Wire Terminals and splices for diverse industrial and commercial electrical requirements at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal is compatible with wire sizes ranging from 16 AWG to 14 AWG.
The terminal has an overall length of 20.29 mm, a width of 0.25 inches, and a thickness of 0.04 inches.
The contact material is phosphor bronze, which provides durability and conductivity.
It features a nylon insulation sleeve that enhances wire insulation support and identification.
This terminal is compatible with an M3.5 stud size for secure fittings.
The funnelled wire entry design allows for easy and fast wire insertion, making it suitable for high-speed production environments.
This terminal is suitable for use in instruments, control panels, aerospace, motors, and power supplies.
The serrated wire barrel maximizes contact area and tensile strength after crimping, ensuring secure electrical connections.
The terminal is manufactured in the United States.
The contact plating is tin, which provides corrosion resistance.
This terminal meets or exceeds MIL-T-7928, Type II, Class 1 and 2 standards.
The insulation material used is nylon, which enhances the terminal's insulation properties.
