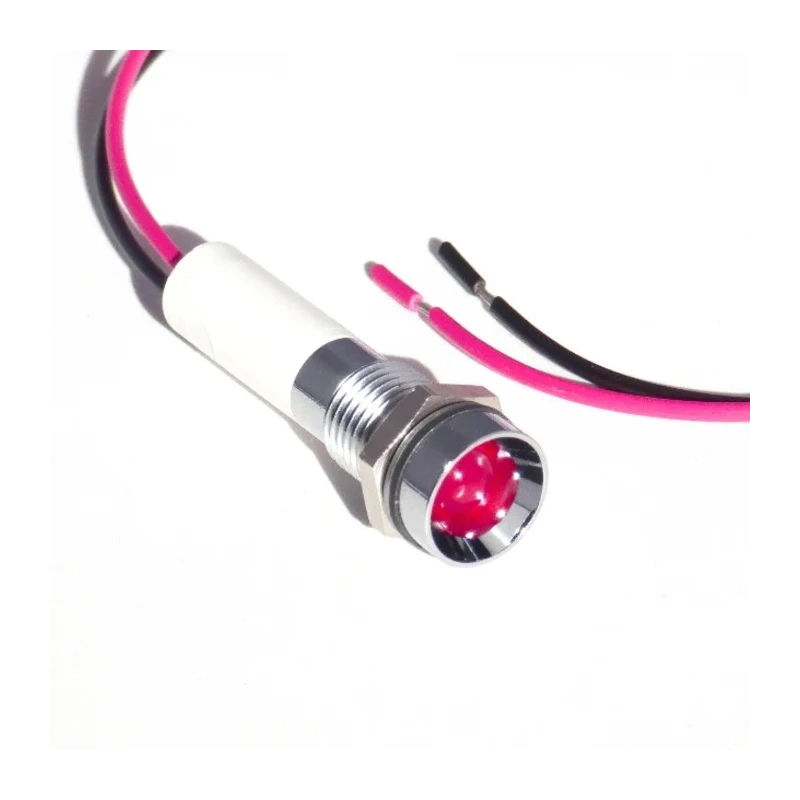

CML Innovative Technologies Recessed LED Indicator Red, Wire Terminal, IP67, M8 Mount Hole Size 19050353WEC

CML Innovative Technologies 19050353WEC recessed LED indicator is a robust panel mount indicator designed for electronic components and power connectors applications. Featuring a red single-color LED with an IP67-rated polycarbonate housing, it ensures reliable visual signalling in industrial, manufacturing, and electronic instrumentation environments.

The indicator is designed to operate at a maximum forward current of 20mA and a supply voltage of 24V dc. Its compact 32mm length and M8 mounting hole size make it suitable for efficient panel integration. The operating temperature range spans from -20°C to +60°C, with a storage temperature tolerance from -25°C to +80°C, allowing use in varied ambient conditions.

This product adheres to REACH SVHC and RoHS standards, confirming its compliance with environmental regulations. The polycarbonate plastic cartridge provides chemical resistance, although with limited capacity. The product includes three wire exit holes at the rear, with lead wires internally soldered for secure connections, though the back is not sealed.

Applications include industrial automation panels, control equipment, and electronic display assemblies where reliable indication and durability against water and dust ingress are essential.

The LED indicator features a maximum forward current of 20mA. Designed as a recessed LED indicator with lead Wire Terminal for panel mounting. Single color red LED with luminous intensity of 80mcd. Operating temperature range is -20°C to +60°C with storage range -25°C to +80°C.

IP67 rating provides protection against dust and water ingress above the panel when gasket is properly used. Compact size with body length of 32mm suitable for panel mount installations. Compliance with REACH SVHC and RoHS standards ensures environmental safety.

Plastic polycarbonate housing offers chemical resistance but with limited tolerance. Lead wires are internally soldered and cartridge has three wire exit holes; rear is not sealed. Explore more electronics and electrical components for professional industrial and commercial applications at EnvMart.
