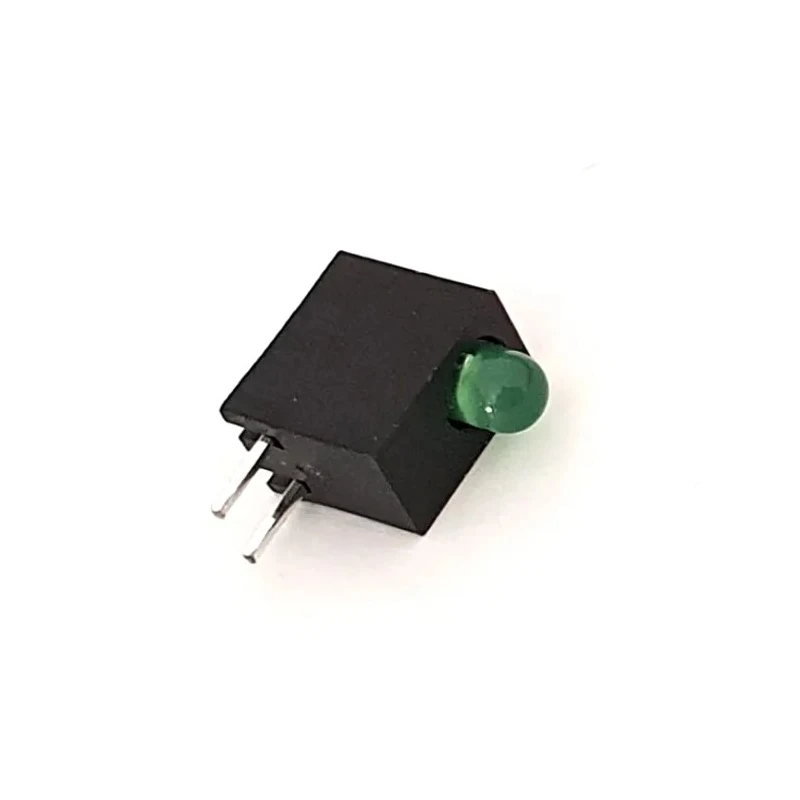

CML Innovative Technologies Green Right Angle LED Indicator 3 mm (T-1), Single Colour, 1 LED, 5 V 15701004
Specifications
| Country of Origin | China |
|---|---|
| Brand | CML Innovative Technologies |
| Length | 12mm |
| Model | 15701004 |
| Mount Type | Through Hole |
| Number Of Leds | 1 |
| Maximum forward current | 20mA |
| Sub Type | Single Colour |
| Lens Colour | Green |
| Luminous Intensity | 55mcd |
| Standards/Approvals | REACH SVHC, RoHS |
| LED Colour | Green |
| Number of Pins | 2 |
| Lens Finish | Diffused |
| Minimum Supply Voltage | 5V |
| Multicolour/Single Colour | Single Colour |
| LED Orientation | Right Angle |
| LED Size | 3 mm (T-1) |
Key Features
- The LED indicator features a right angle emission orientation for easy PCB integration.
- It contains one green LED with a 3 mm (T-1) lens size and diffused finish for wide viewing angles.
- Designed for through-hole mounting with two pins to ensure sturdy mechanical and electrical connection.
- The operating voltage is 5 V and supports a maximum forward current of 20 mA.
- It offers a luminous intensity of 55 mcd suitable for clear visibility in indicator applications.
- The LED has a wavelength of 569 nm with stable performance between -20°C and +80°C operating temperature range.
- The product complies with REACH SVHC and RoHS standards for environmental and safety regulations.
Product Description
CML Innovative Technologies 15701004 Green Right Angle LED Indicator is a high-quality, single-colour PCB mount LED indicator designed for versatile industrial and electronic applications. With a 3 mm (T-1) diffused green lens, this device emits a clear green light for status indication purposes.
The indicator features a right angle LED orientation, making it ideal for compact PCB layouts and ensuring effective light emission direction. It is designed for through-hole mounting with two pins, providing reliable mechanical fastening and electrical connectivity on circuit boards.
Operating at a minimum supply voltage of 5 V and supporting a maximum forward current of 20 mA, this LED indicator balances brightness and power efficiency, delivering a luminous intensity of 55 millicandela (mcd). The emission wavelength is precisely 569 nm, providing a consistent green light output.
Designed to operate reliably within a temperature range of -20°C to +80°C, it suits a broad range of environments including industrial machinery, control panels, consumer electronics, and instrumentation.
The product conforms to REACH SVHC and RoHS standards, ensuring compliance with current environmental and safety requirements across global markets. Right angle LED orientation for effective PCB integration. Single green LED with 3 mm diffused lens size for uniform light distribution.
Through-hole mount with 2 pins for secure installation. Operating voltage of 5 V and maximum forward current of 20 mA. Luminous intensity rated at 55 mcd for clear indicator visibility. Available with wavelength 569 nm and operating temperature range from -20°C to +80°C.
Compliant with REACH SVHC and RoHS regulations.
This LED indicator is widely used in electronics manufacturing, instrumentation panels, and industrial machinery requiring reliable visual status indication. The robust design and compliance make it suitable for diverse applications including commercial and industrial environments.
Explore more PCB LED Indicators and electronic components on EnvMart for trusted brands and specifications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating voltage of this LED indicator is 5 V.
It has a luminous intensity of 55 millicandela (mcd), providing clear visibility in indicator applications.
The emitted light has a wavelength of 569 nm, which corresponds to the green color of the LED.
The maximum forward current supported by this LED indicator is 20 mA.
This model is designed for through-hole mounting with two pins for secure installation.
It operates reliably within a temperature range of -20°C to +80°C.
The lens size of this LED indicator is 3 mm (T-1).
The product complies with REACH SVHC and RoHS standards for environmental and safety regulations.
The lens finish is diffused, allowing for wide viewing angles.
This model contains one single green LED.
The length of this LED indicator is 12 mm.
It is suitable for use in industrial machinery, control panels, consumer electronics, and instrumentation for visual status indication.
