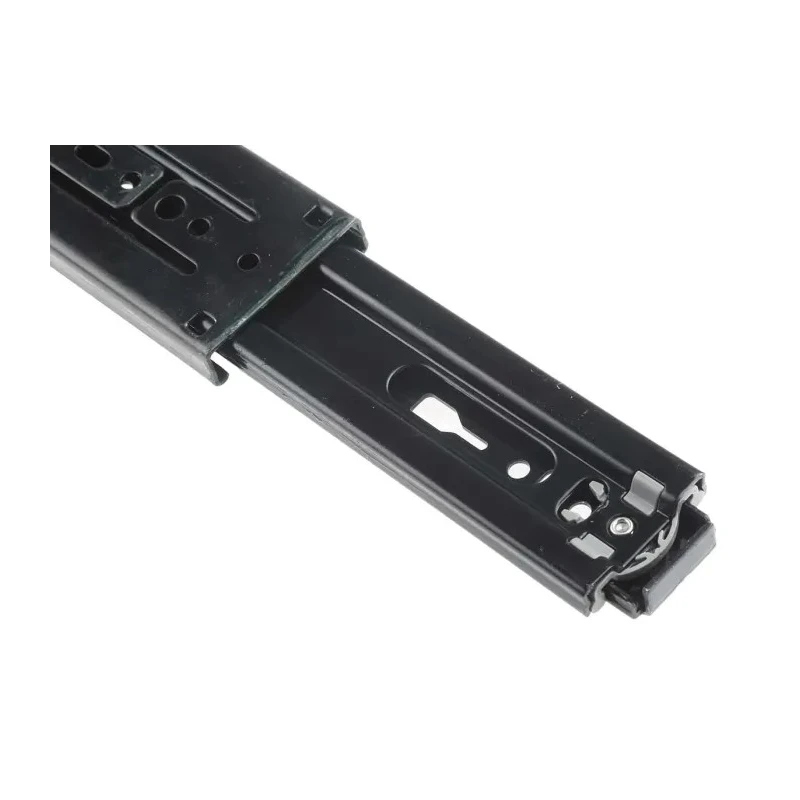

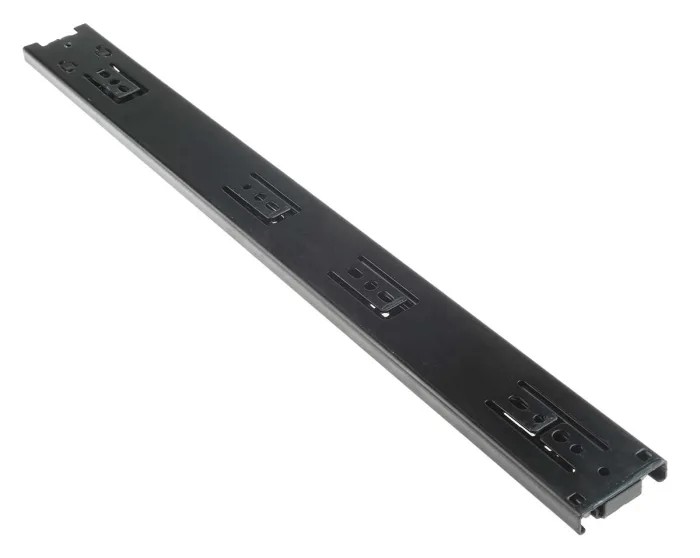

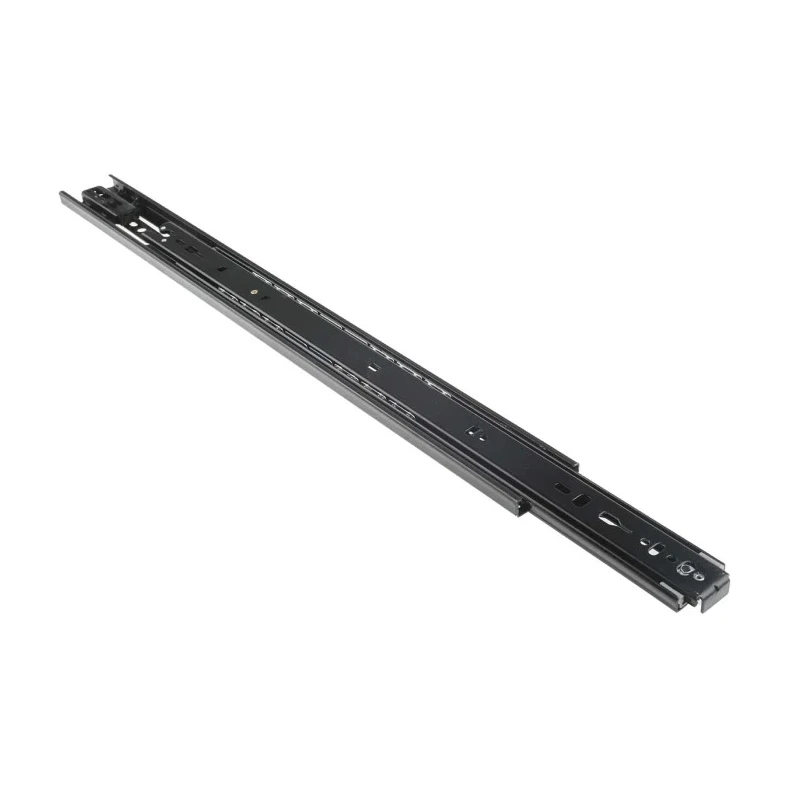

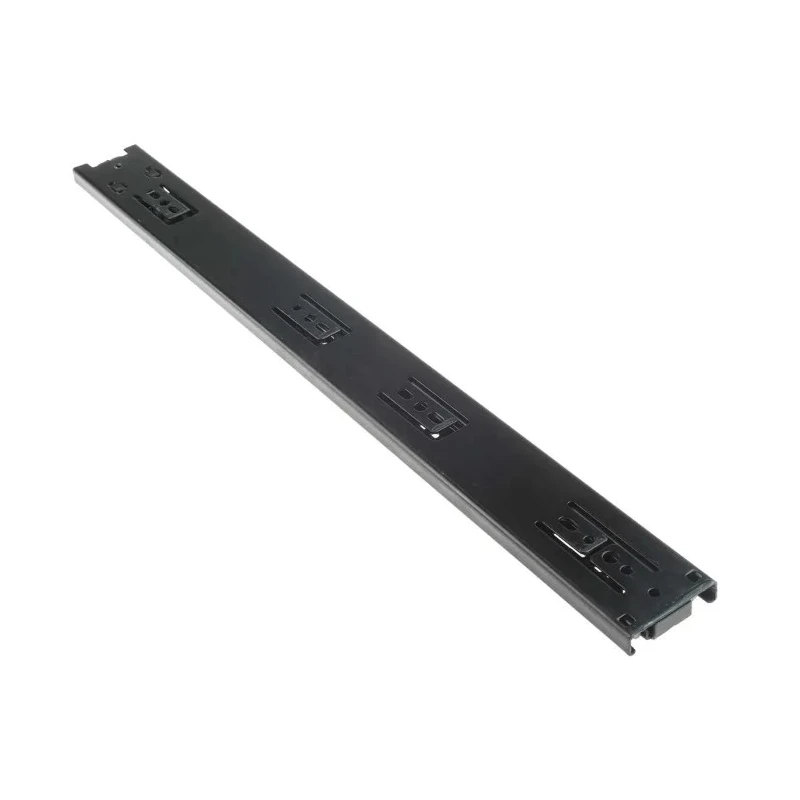

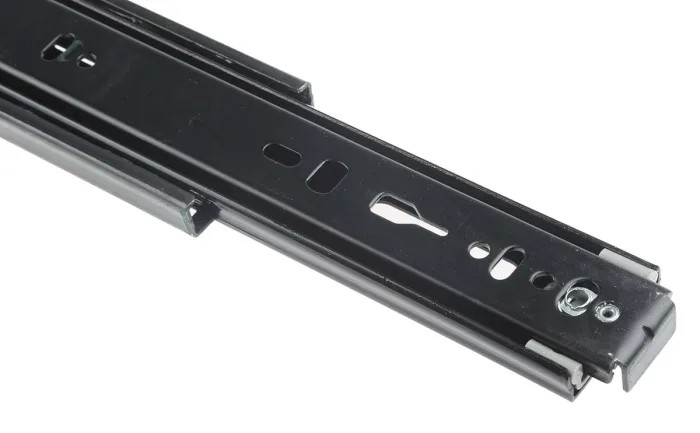

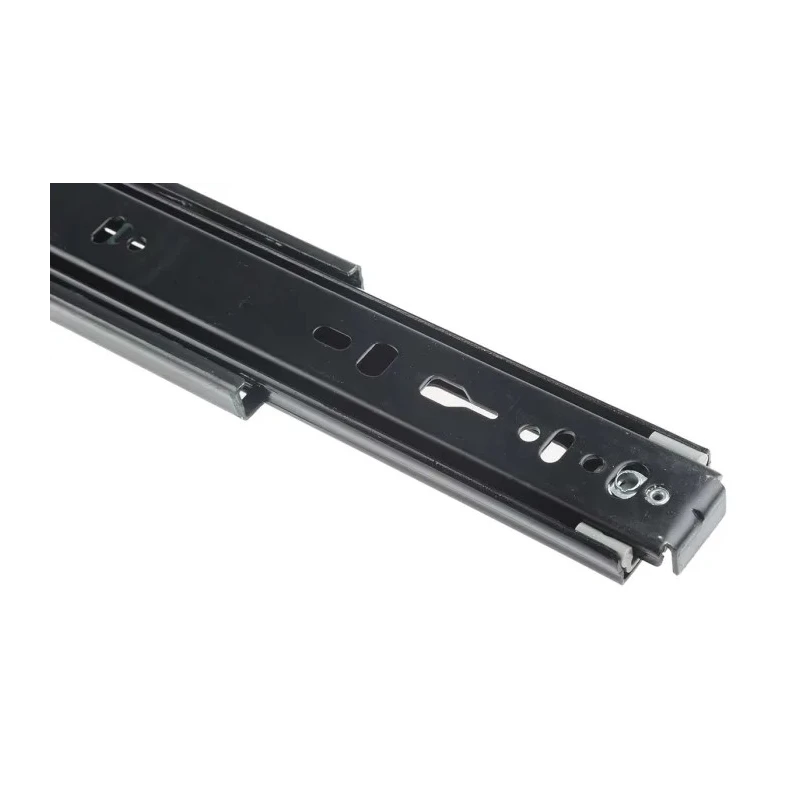

Accuride Self-Closing Steel Drawer Slide Zinc Plated 50kg Load 500mm DB 3832-0050SC

Accuride DB 3832-0050SC self-closing steel drawer slide features a robust zinc plated steel construction with a 50kg maximum load capacity and 500mm closed length, ideal for various industrial and commercial drawer applications. Designed for smooth, quiet operation, these drawer slides incorporate a self-cleaning ball retainer that maintains performance over long cycles.

The self-closing mechanism uses a spring attachment to automatically return the drawer securely into the cabinet, preventing accidental openings and bounce-back. A front disconnect lever allows for straightforward drawer removal and reinstallation without tools, enhancing maintenance efficiency.

This model provides full 100% extension with a travel length of 508mm and an overall height of 45.7mm, accommodating a wide range of drawer sizes and types. The hold-in detent feature firmly secures drawers closed until additional pressure is applied, contributing to drawer stability during transport or vibration.

With a cam adjuster on the front, installers can make up to 3.2mm adjustments to the drawer front for perfect alignment and aesthetic finish. These drawer runners are intended for indoor use, suitable for general-purpose storage cabinets and cabinetry found in industrial, commercial, and office settings.

Self-closing with minimum closing and opening force of 14 to 27 N per runner. Zinc plated steel provides durability and corrosion resistance. Maximum load capacity of up to 50 kg depending on usage cycles. 100% full extension for complete drawer access.

Self-cleaning ball retainer protects raceways and ensures smooth operation. Front disconnect feature simplifies drawer removal and installation. Hold-in detent mechanism secures drawer closed. Cam adjustment enables precise drawer front alignment.

These drawer runners comply with high-quality manufacturing standards, produced in Mexico. They require fitting with M4 screws, 4mm wood screws, or 6mm Euro screws, with optional brackets available separately for enhanced installation options. Ideal for industrial supplies in material handling equipment and cabinetry manufacturing.
