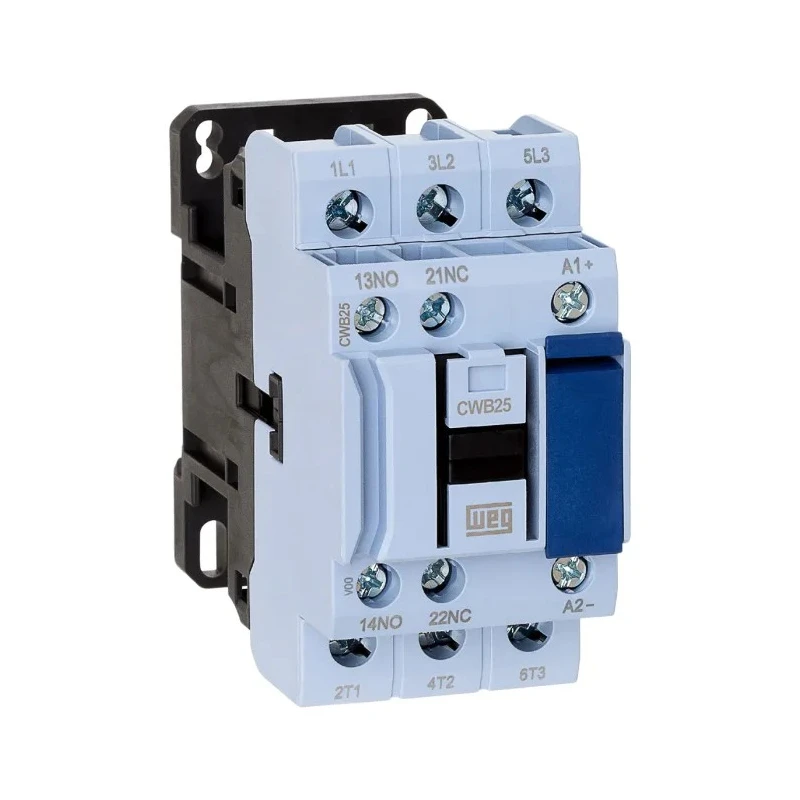

WEG 3-Pole Power Contactor CWB25-11-30C03, 24V Coil, 25A, 11kW, DIN Rail, Screw Terminals
Specifications
| Country of Origin | Brazil |
|---|---|
| Brand | WEG |
| Function | Motor Control |
| Length | 85mm |
| Model | CWB25-11-30C03 |
| Depth | 103mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | CWB |
| Power Rating | 11kW |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V |
| Normal State Configuration | 3 NO |
| Contact Current | 25A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 25A |
| Control Circuit Voltage Uc | 24V |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 3PST |
Key Features
- Suitable for industrial motor control and automation systems.
- Features three normally open contacts for reliable switching.
- Operates with a coil voltage of 24V for flexible integration.
- Supports a maximum contact current of 25A and voltage up to 690V AC.
- Compact, robust DIN rail mount design with screw terminals.
- Includes 2 auxiliary contacts (1NO/1NC) for versatile circuit control.
- Operational temperature range from -25°C to 55°C for varied environments.
- Compliance with IEC, RoHS and UL standards for safety and performance.
Product Description
WEG CWB25-11-30C03 is a highly reliable, compact 3-pole power contactor engineered for demanding industrial applications. Manufactured using robust materials and advanced injection moulding techniques, this contactor ensures long-term performance and excellent conductibility. It is ideal for motor control in automation and manufacturing environments, supporting up to 11kW power and 25A current per contact with a maximum contact voltage of 690V AC.
The device is equipped with a 24V coil for responsive operation, making it suitable for integration in various control systems. With three normally open main contacts and two auxiliary contacts (1NO/1NC), it allows versatile switching configurations. The contactor is designed for DIN rail mounting, simplifying installation in electrical panels and enclosures. Screw terminals ensure secure connections in industrial setups.
Suitable for industrial motor control and automation systems. Features three normally open contacts for reliable switching. Operates with a coil voltage of 24V for flexible integration. Supports a maximum contact current of 25A and voltage up to 690V AC.
Compact, robust DIN rail mount design with screw terminals. Includes 2 auxiliary contacts (1NO/1NC) for versatile circuit control. Operational temperature range from -25°C to 55°C for varied environments. Compliance with IEC, RoHS and UL standards for safety and performance.
With a depth of 103mm, length of 85mm, and width of 45mm, its compact form optimizes panel space. The WEG CWB series uses only nontoxic, eco-friendly materials, ensuring safety and sustainability. Built-in auxiliary contacts and low-consumption coils further improve efficiency and reliability.
Typical applications include industrial motor starters, HVAC systems, material handling equipment, conveyor motor control, and automation panels in manufacturing and process industries. Its wide thermal operating range makes it suitable for diverse environments, from utility plants to commercial installations.
Browse more WEG products and power Contactors in the EnvMart electronics and industrial automation categories for reliable solutions in your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum contact current of 25A and a contact voltage of up to 690V AC.
It operates with a coil voltage of 24V, allowing for flexible integration into various control systems.
The operational temperature range is from -25°C to 55°C, making it suitable for varied environments.
This model is a 3-pole power contactor, featuring three normally open contacts for reliable switching.
It is designed for DIN rail mounting, which simplifies installation in electrical panels and enclosures.
The dimensions are 85mm in length, 45mm in width, and 103mm in depth.
It includes 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC) for versatile circuit control.
This unit complies with IEC, RoHS, and UL standards for safety and performance.
The power rating for this model is 11kW, making it suitable for motor control applications.
It is primarily designed for motor control, making it ideal for automation and manufacturing environments.
This model features screw terminals, ensuring secure connections in industrial setups.
The WEG CWB25-11-30C03 is manufactured in Brazil.
